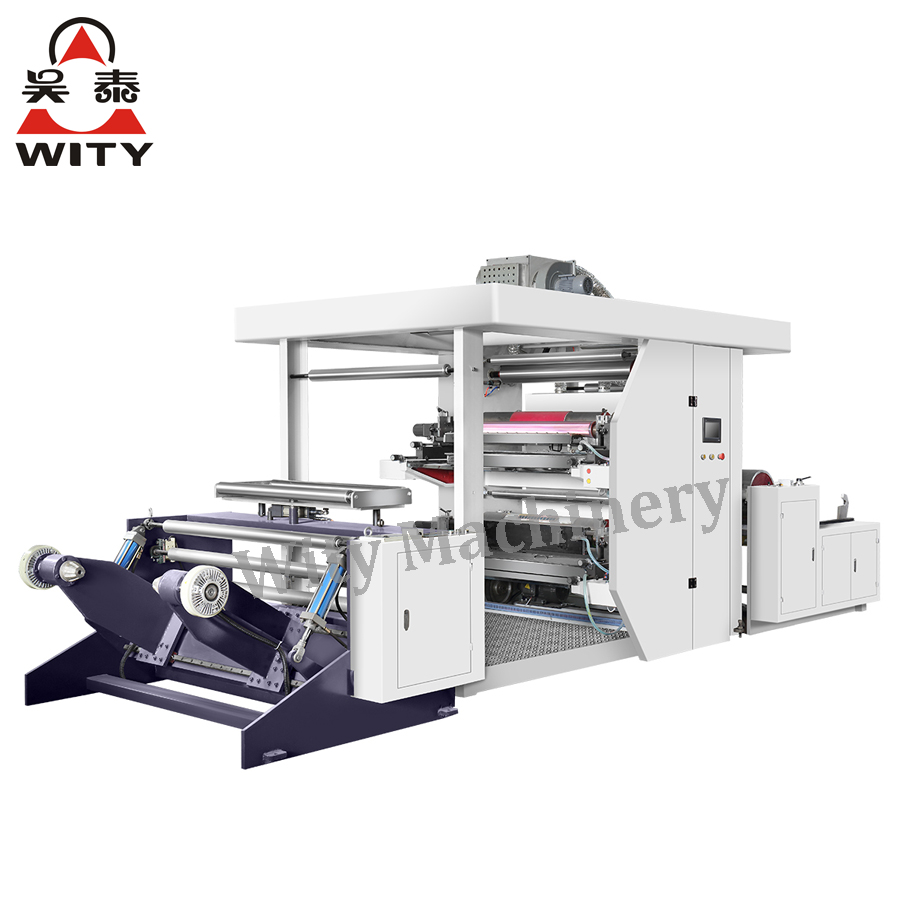

Flexographic Printing Machine with Multi-Roller System
This machine features synchronous belt drive and a hard gear face gear box. Its design includes a long material running space after printing to facilitate ink drying and improve results.
Technical Specifications
Overview
High-Performance Flexographic Printing
This flexographic printing machine is engineered for versatile, high-quality roll-to-roll printing applications. It features a robust multi-roller system that ensures precise ink distribution and consistent output quality across various substrates, including plastic films, paper, and aluminum foil. Designed for efficiency and accuracy, the unit includes sophisticated tension control and automated registration to minimize waste and maximize productivity.
Technical Specifications
Key Performance Metrics
1,000 mm
Max Material Width
960 mm
Max Printing Width
100 m/min
Max Printing Speed
Handling Capacities
| Parameter | Value |
|---|---|
| Unwinding Diameter | 1500mm |
| Rewinding Diameter | 1500mm |
| Printing Length Range | 228-1000mm |
Precision & Plate Specs
- Register precision: ≤±0.15mm
- Plate thickness: 1.7mm
- Model
- ZYT2-1000
Applications
Industry Applications
Flexible PackagingLabelsFood PackagingPharmaceuticals
- Suitable Substrates
- Plastic FilmsPaperAluminum Foil
