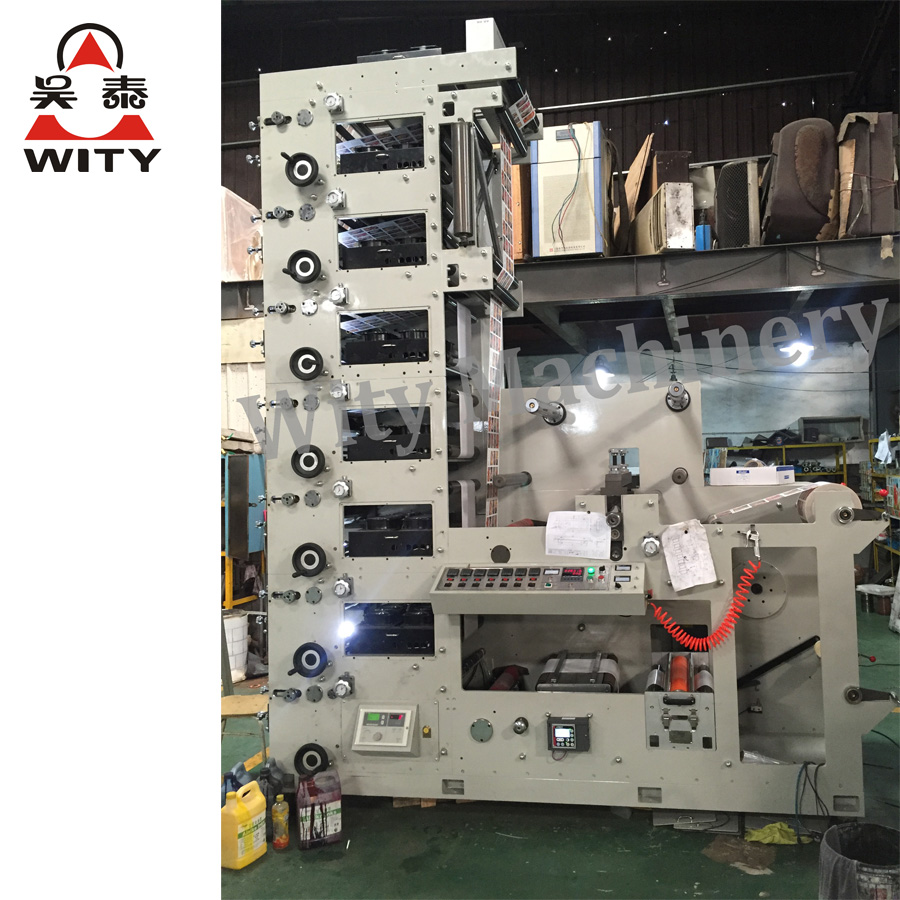

Flexographic Printing Machine with IR Dryer
This flexographic printing machine utilizes an Anilox roller for ink distribution. It integrates unwinding, web guiding, printing, IR drying, and rewinding processes, making it suitable for printing on cup paper.
Technical Specifications
Product Overview
High-Performance Flexographic Printing
This flexographic printing machine is a versatile solution designed for high-volume production on various substrates, including paper, film, and foil. Featuring a robust multi-station configuration, it supports multi-color printing and advanced finishing processes in a single pass. The machine is equipped with precision registration controls, adjustable tension settings, and automated web handling to ensure consistent quality for packaging and label applications.
Technical Specifications
Model Comparison
| Feature | ZBS-650 | ZBS-850 |
|---|---|---|
| Max Web Width | 660mm | 860mm |
| Max Printing Width | 650mm | 850mm |
| Machine Weight | 5000kg | 6000kg |
- Precision of Color Register
- ±0.1mm
Performance Metrics
Printing Speed
60 m/min
Max Speed
Printing Colors
4 Colors6 Colors
Handling Capabilities
Printing Length Range
- 175~380mm
- 250~580mm
- Max Unwinding Diameter
- 1400 mm
- Max Rewinding Diameter
- 1400 mm
