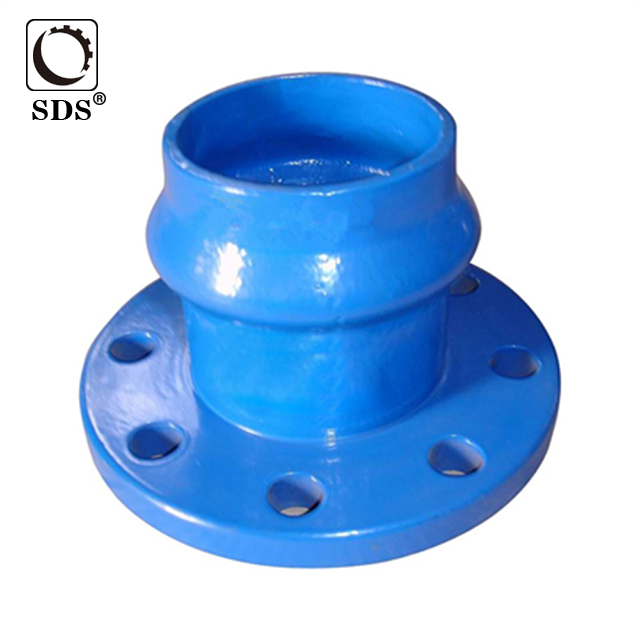

Flanged Ductile Iron PVC Coated Pipe Fitting
This ductile iron fitting features a PVC coating and a flanged base for secure connections. It is designed for use in piping systems requiring durable and corrosion-resistant components.
Technical Specifications
Product Overview
Ductile Iron Flanged Pipe Fittings
These flanged pipe fittings are engineered from high-strength ductile iron, offering exceptional durability and corrosion resistance for demanding piping systems. Each fitting undergoes a rigorous multi-layer coating process, including internal cement lining and external zinc-bituminous protection, ensuring long-term hydraulic efficiency and structural integrity. Designed for versatility, these components are suitable for centrifugally cast and integral cast pipe systems in water distribution and industrial fluid handling applications.
Material Composition
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Carbon (C) | 3.1 - 3.9 |
| Silicon (Si) | 2.0 - 3.0 |
| Manganese (Mn) | ≤ 0.3 |
| Phosphorus (P) | ≤ 0.07 |
Coatings and Protection
External Coating
- Pure metallic Zinc (min 99.995% purity) at 200g/m2
- 120 microns of bituminous paint per ISO 8179-1
- Internal Coating
- Portland cement (Sulphate resistant type V) applied by centrifugal process per ISO 4179 standards.
Technical Standards
- Standards & Compliance
- ISO 4179ISO 8179BSEN Standards
Logistics
- Standard Delivery Time
- 35 days
