Fine Impact Crusher for Aggregate Production
This fine impact crusher utilizes impact force for efficient material reduction in secondary and tertiary crushing stages. Its adjustable parameters and heavy-duty construction ensure consistent product quality and minimal downtime.
Technical Specifications
Overview

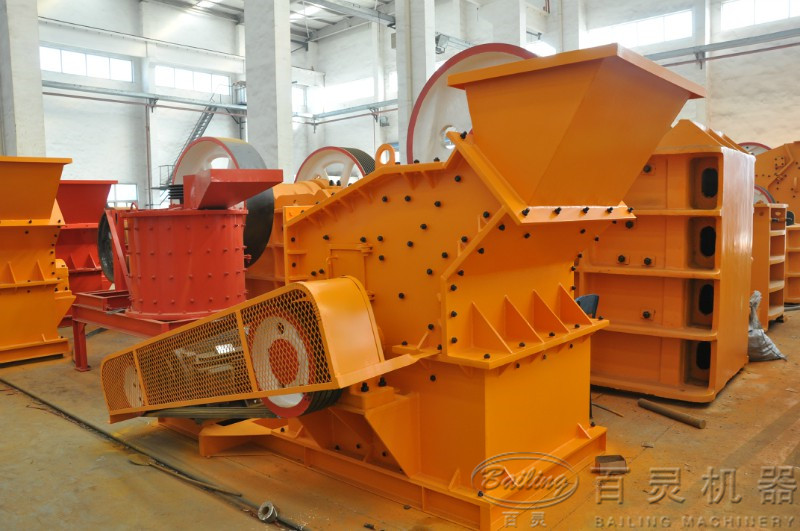

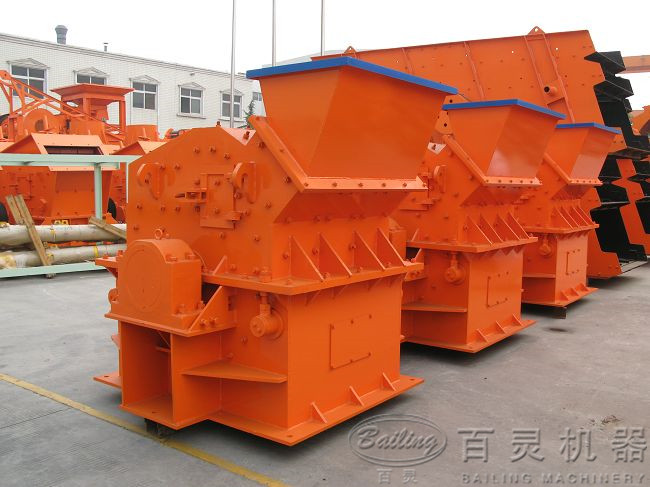

High-Efficiency Fine Impact Crusher
This series of impact crushers is engineered for secondary and tertiary crushing, capable of processing ores and rocks with a compression strength of up to 320MPa. Utilizing a high-speed rotor and multi-chamber crushing process, it delivers a high crushing ratio and produces a consistent, cubic-shaped aggregate. Designed for durability and efficiency, the machine features high-chrome hammers and adjustable output settings, making it an ideal solution for expressway, hydropower, and building construction projects.
Key Features
Operational Benefits
- Special structure connected without keys
- High chrome hammer and unique impact liner
- No tension cracks in final product
- Simple crushing process
- Reliable operation
- Core Advantages
- High Crushing RatioCubic Product ShapeEnergy EfficientAdjustable Output SizeEasy Maintenance
Technical Specifications
Model Performance Data
| Model | Max Feed Size (mm) | Yield (t/h) | Power (kW) | Weight (t) |
|---|---|---|---|---|
| PCX800×300 | 60 | 20-25 | 37 | 2.5 |
| PCX800×600 | 60 | 35-50 | 45 | 4.7 |
| PCX800×800 | 70 | 40-60 | 75 | 6.5 |
| PCX1000×1000 | 80 | 60-90 | 90 | 8.8 |
| PCX1000×1200 | 90 | 75-110 | 110 | 13.6 |
| PCX1300×1200 | 100 | 120-145 | 160 | 19.5 |
| PCX1300×1400 | 120 | 145-180 | 180 | 26 |
Operating Limits
- Maximum Feed Size
- 500 mm
- Max Compression Strength
- 320 MPa
