Final Polymerization Reactor for Petrochemical Processing

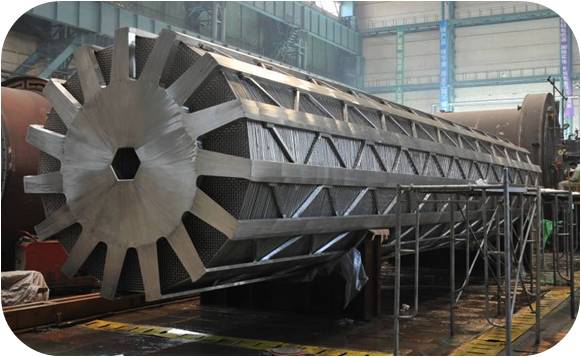

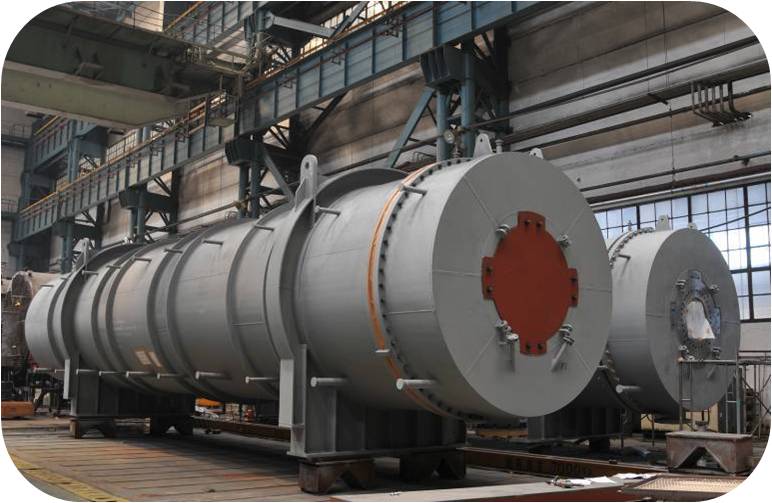

This final polymerization reactor is designed for petrochemical engineering applications. The reactor features a robust cylindrical structure with an internal heat exchange system and radial arm assembly.
Technical Specifications
Overview
High-Performance Polymerization Reactor
This final polymerization reactor is engineered for demanding petrochemical processing and refinery applications. Built with a robust combination of SA516Gr.70 and SA240Gr304 materials, it ensures structural integrity and corrosion resistance in high-stress environments. The unit features a complex internal heat exchange system and is designed to handle rigorous temperature and pressure requirements for efficient final-stage polymerization.
Technical Specifications
- Materials of Construction
- SA516Gr.70SA240Gr304
- Design Pressure (Barrel)
- 1.05 MPa
- Design Pressure (Jacket)
- 5.27 MPa
- Operating Temperature Range
- 21°C to 315°C
- Total Weight
- 96.23 T
Dimensions
Standard Dimensions
2,794 mm
Diameter
17,903 mm
Length
