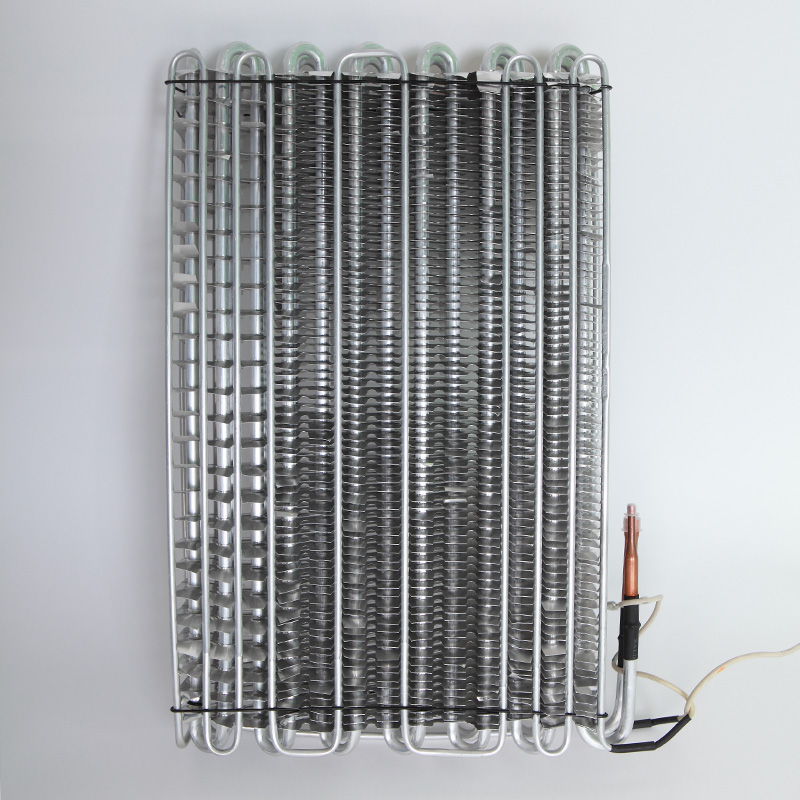

Fin Type Heat Exchanger Evaporator
This fin type evaporator is a heat exchanger used in refrigeration systems. Its design facilitates efficient evaporation of refrigerant by absorbing heat from the surrounding environment.
Technical Specifications
Product Overview
High-Efficiency Fin Type Heat Exchanger
This fin type heat exchanger evaporator is engineered for optimal thermal performance in refrigeration systems. Utilizing high-conductivity aluminum construction, it maximizes surface area through closely spaced fins to ensure efficient heat transfer. Its robust design and customizable technical parameters make it a reliable component for diverse cooling applications.
Materials
- Aluminum Tube Dimensions
- Ø8.0mm x 0.65~1mm
- Bare Aluminum Fin Thickness
- 0.12~0.2mm
- Side Plate Thickness
- 0.7~1.5mm
Technical Standards
- Fin Pitch
- 4mm ~ 6.5mm
- Maximum Expanding Length
- 770 mm
- Max Number of Expanding Elbows
- 14.5
Design Configuration
Bending Specifications
| Configuration | Center Distance | Bending Radius |
|---|---|---|
| Double Holes A | 25mm | R15 |
| Double Holes B | 20mm | R12.5 |
