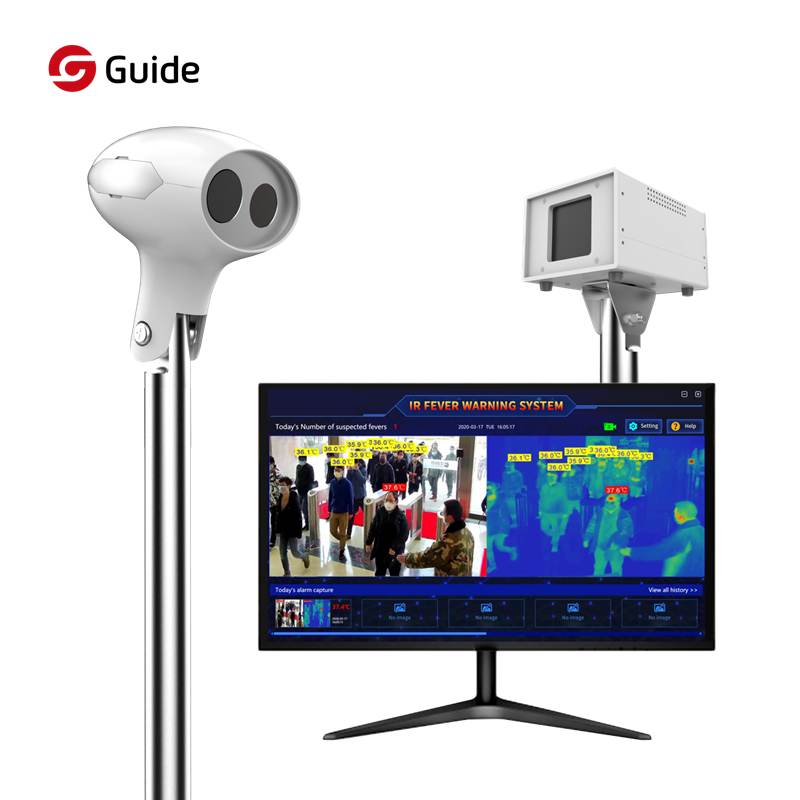

Fever Screening Thermal Imaging System
This thermal imaging system is designed for non-contact fever screening in public areas. It detects individuals with potential fevers by using thermography and AI-enabled face tracking.
Technical Specifications
Overview
Advanced Fever Screening Solution
This thermal imaging system is designed for high-efficiency mass fever screening in crowded public spaces. By utilizing advanced AI-enabled face tracking and infrared thermography, it allows for non-contact temperature monitoring of multiple individuals simultaneously. This technology helps maintain safety and efficiency in high-traffic environments like transportation hubs and public facilities by identifying potential fever symptoms without requiring close contact.
Performance Metrics
Key Performance Metrics
500 people/min
Screening Efficiency
0.3 °C
Accuracy
25 Hz
Frame Rate
Technical Specifications
Infrared Detector Details
| Parameter | Value |
|---|---|
| Resolution | 400×300 |
| Pixel Size | 17μm |
| Field of View (FOV) | 38° x 28° |
- Temperature Measurement Range
- -10°C to 50°C
Software & Intelligence
System Capabilities
- Intelligent AI face tracking

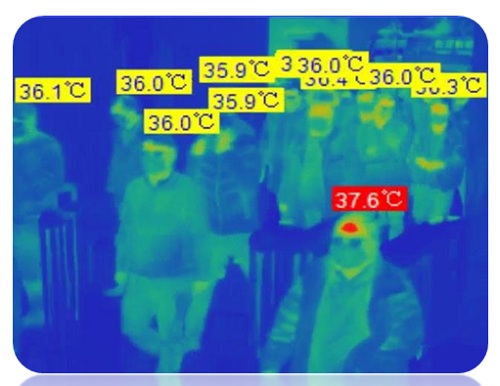

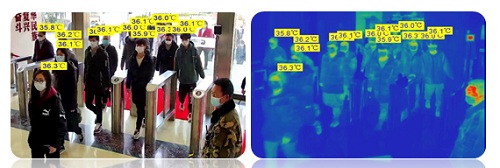

- Real-time temperature monitoring
- Automatic warning and photo capturing
- Historical record query and management
- Video recording support
Physical & Power
Physical Dimensions & Weight
- Camera head size: 173mm x 184mm x 212mm
- Total height (with stand): 2200mm
- Total weight: ≤45kg
- Power Input
- 12 W

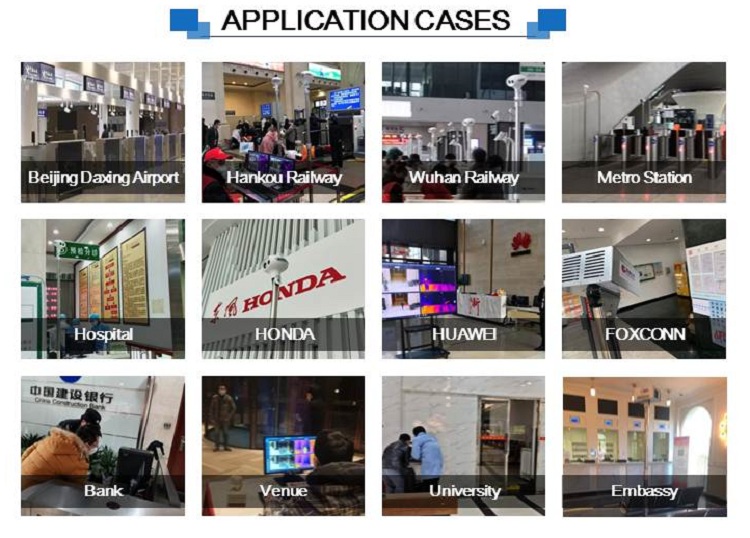

Applications
- Ideal Deployment Scenarios
- AirportsRailway StationsHospitalsSchoolsBanksCorporate OfficesPublic Venues
