Technical Specifications
Overview
Professional Fever Screening Solution

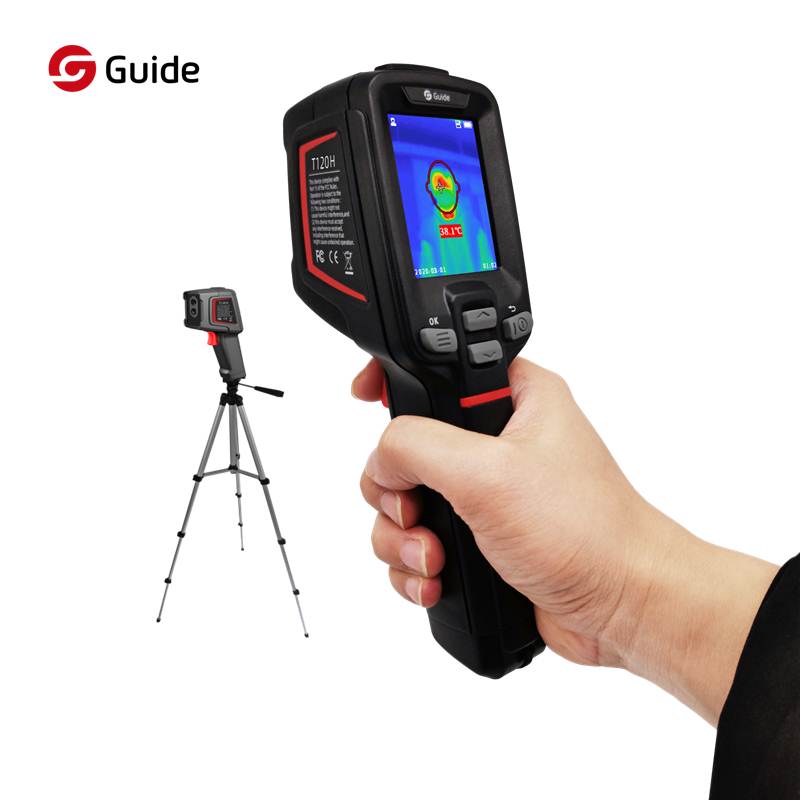

This compact thermal camera is designed for rapid, non-contact temperature detection, making it an essential tool for public health safety. It features a high-sensitivity infrared detector that provides accurate thermal imaging with a measurement precision of ±0.5℃. The device supports flexible deployment options, including mobile handheld use or fixed installation on a tripod, ensuring efficient screening at entrances and exits.
Performance
- Thermal Resolution
- 120 x 90 pixels
- Accuracy
- 0.5 ℃
- Frame Rate
- 25 Hz
- Field of View (FOV)
- 50° x 38°
Operation

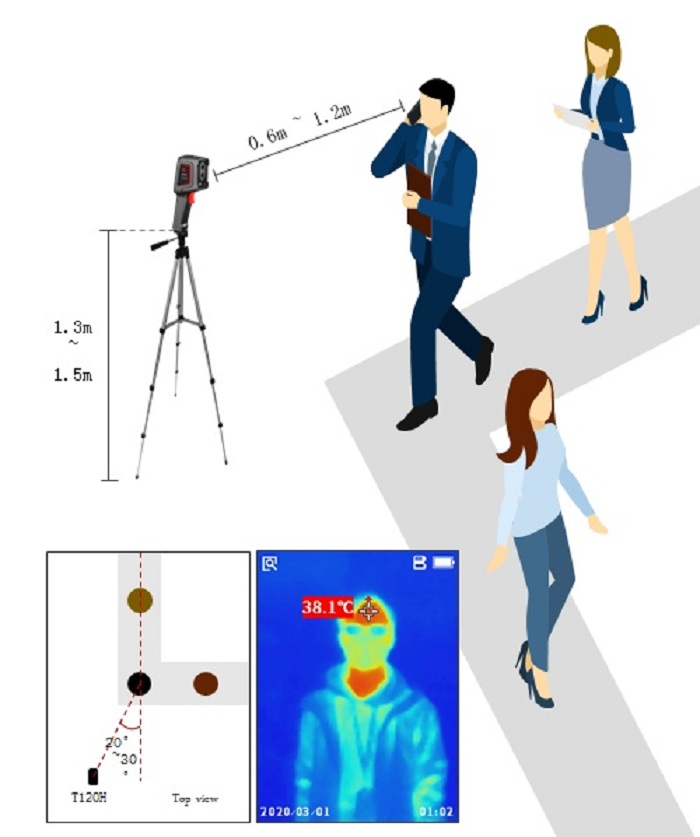

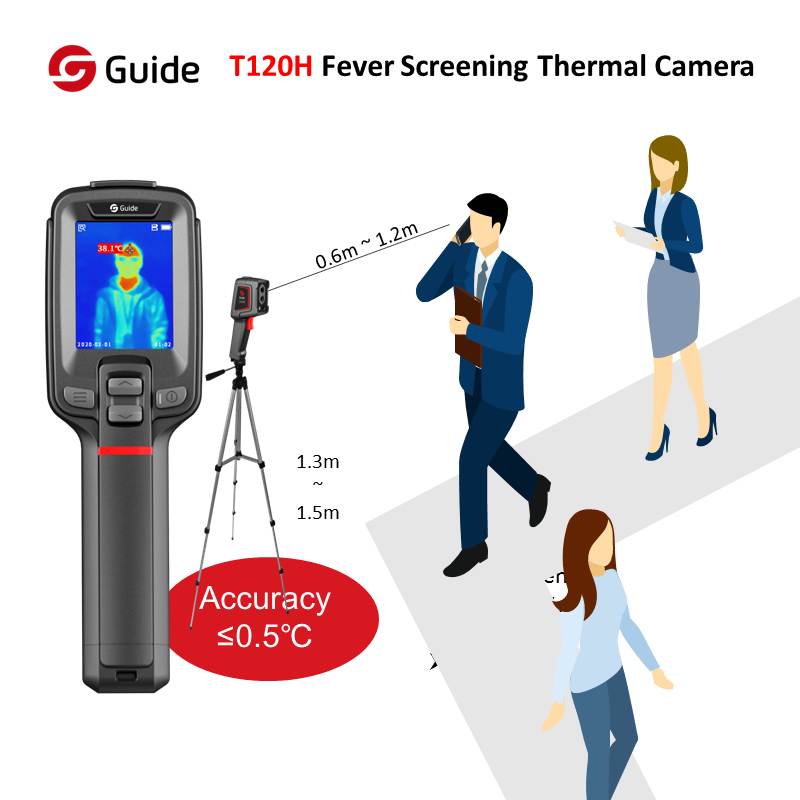

- Recommended Detection Distance
- 0.6m - 1.2m
- Battery Operating Time
- 8 H
- Image Storage
- Up to 100,000 images (TF card supported)
Physical & Environmental
Ingress Protection
IP54
- Weight
- 350 g
- Drop Test Rating
- 2 m
Compliance
- Certifications
- CEROHSFCC
Included Accessories
Package Contents
- Wristband
- Quick start guide
- Charging adapter
- Plug
- USB Type-C cable
- Download card
- 16G TF Card
