Technical Specifications
Overview

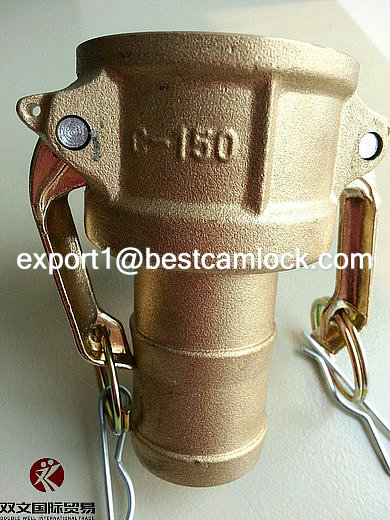

High-Performance Brass Camlock Coupling
This high-quality brass camlock coupling is engineered for secure and efficient fluid transfer in demanding industrial and agricultural environments. Featuring a robust cam locking mechanism, it allows for quick, tool-free connections, significantly enhancing operational safety and efficiency. Designed for durability with excellent abrasion resistance and a non-sparking profile, this fitting is an ideal solution for low-pressure suction and discharge applications.
Technical Specifications
- Body Material
- Brass
- Size Range
- 1/2" to 6"
- Thread Options
- NPTBSPPBSPT
- Seal Options
- NBRBUNAEPDMVITON
- Standards
- A-A-59326MIL-C-27487DIN 2828DIN 14420-7
Performance Metrics
Max Working Pressure
250 psi
Working Pressure
Usage Restrictions
- Not suitable for steam
- Not suitable for compressed air
- Not suitable for liquid gases
- Temperature Range
- -101°C to +232°C
Components
Component Materials
| Component | Material Options |
|---|---|
| Pins, Rings, Safety Clip | Carbon steel plated, Stainless steel |
| Handle | Brass, Stainless steel |
Available Types
ABCDEFDCDP
