Technical Specifications
Overview

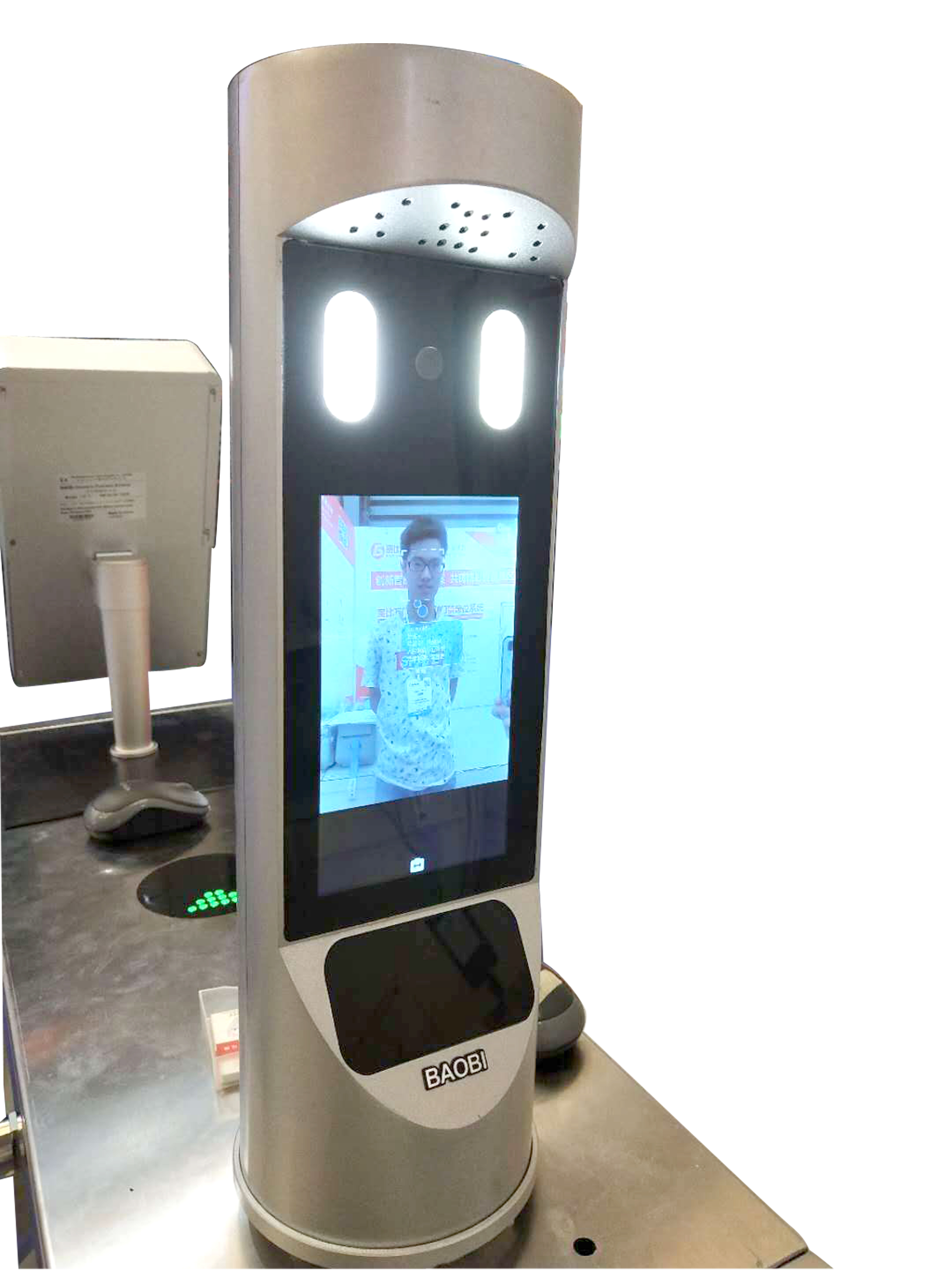

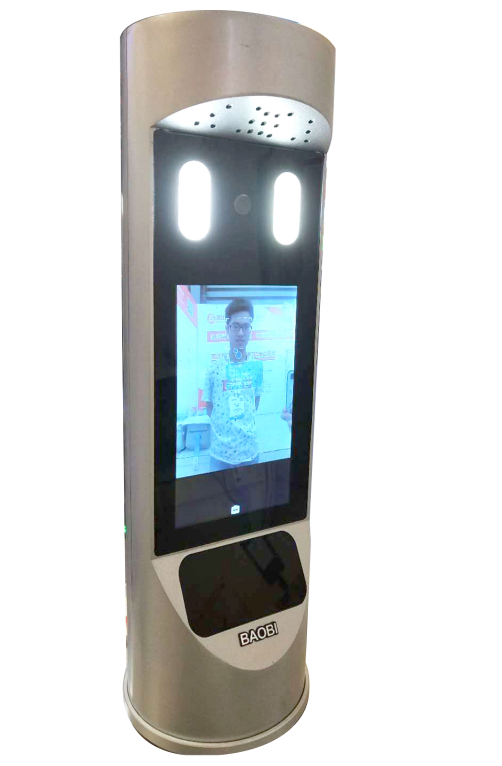

Advanced Facial Recognition Terminal
This durable facial recognition terminal features an aluminum alloy shell designed for high-temperature resistance, waterproofing, and dust protection. Equipped with a 7-inch IPS display and a powerful quad-core processor, it delivers fast and accurate identification including living body detection. It is an ideal solution for smart management projects, including smart campuses, construction sites, and corporate facilities.
Performance
- Operating System
- Android 5.1
- Processor
- 4-core 1.8GHz
- Memory & Storage
- 2GB RAM / 16GB ROM
Display & Camera
Display Specifications
7 inch
Screen Size
1,024 px
Resolution Width
600 px
Resolution Height
- Camera Details
- Monocular Live Camera2 Million PixelsF2.4 Aperture4.7mm Focal Length
Recognition Capabilities
Recognition Speed
| Function | Time |
|---|---|
| Face Tracking | 20ms |
| Feature Extraction | 200ms |
| Comparison | 0.5ms |
- Face Database Capacity
- 10000 faces
Connectivity & Interfaces
Physical Interfaces
- USB Interface (OTG switchable)
- RS232 Serial Port
- Relay Output
- Built-in Audio Speaker
- Network Connectivity
- Wired (RJ45)Wireless (2.4G WiFi)
Environmental
Protection Rating
IP42
- Operating Temperature
- -30°C to 70°C
- Power Input
- DC12V 2A
