Evaporative Cooling Pad for Climate Control
This evaporative cooling pad uses a new material and spatial crossing linking technology for high absorbability and water resistance, preventing mildew and ensuring a long service life. It is designed for greenhouse climate control, lowering air temperature through adiabatic cooling and maintaining optimal humidity levels.
Technical Specifications
Overview
High-Efficiency Cooling Technology
This evaporative cooling pad utilizes advanced spatial crossing linking technology to achieve exceptional water absorbability and heat exchange efficiency. Designed for climate control in demanding environments like greenhouses, it promotes uniform airflow and efficient adiabatic cooling. The eco-friendly, phenol-free material ensures safe, long-lasting performance while maintaining an energy-efficient operational profile.
Performance Metrics
Cooling Efficiency
Water Absorption Height
- 60-70 mm per 5 minutes
- 200 mm per 1.5 hours
Physical Dimensions

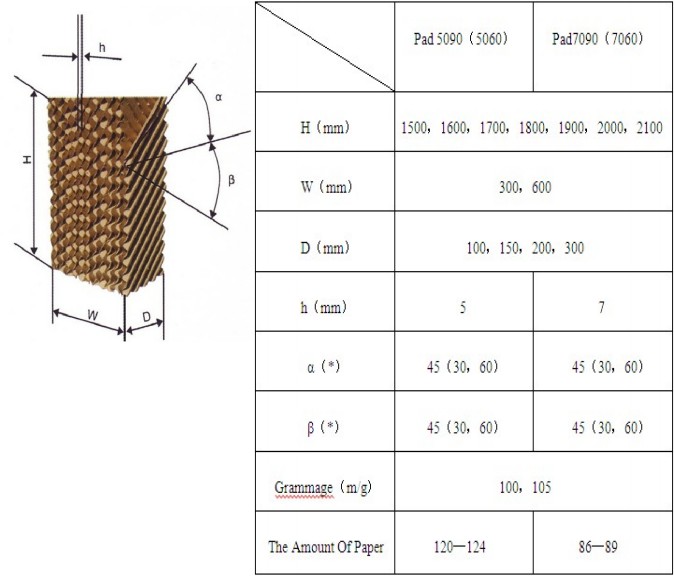

Technical Dimensions
| Parameter | Available Range/Options |
|---|---|
| Height (H) | 1500mm - 2100mm |
| Width (W) | 300mm, 600mm |
| Depth (D) | 100mm, 150mm, 200mm, 300mm |
| Thickness (h) | 5mm, 7mm |
Construction & Materials
Available Colors
- Brown
- Green
- Brown and Green (Double)
- Black Edge
- Available Frame Materials
- Galvanized sheetStainless steelAluminum alloy
