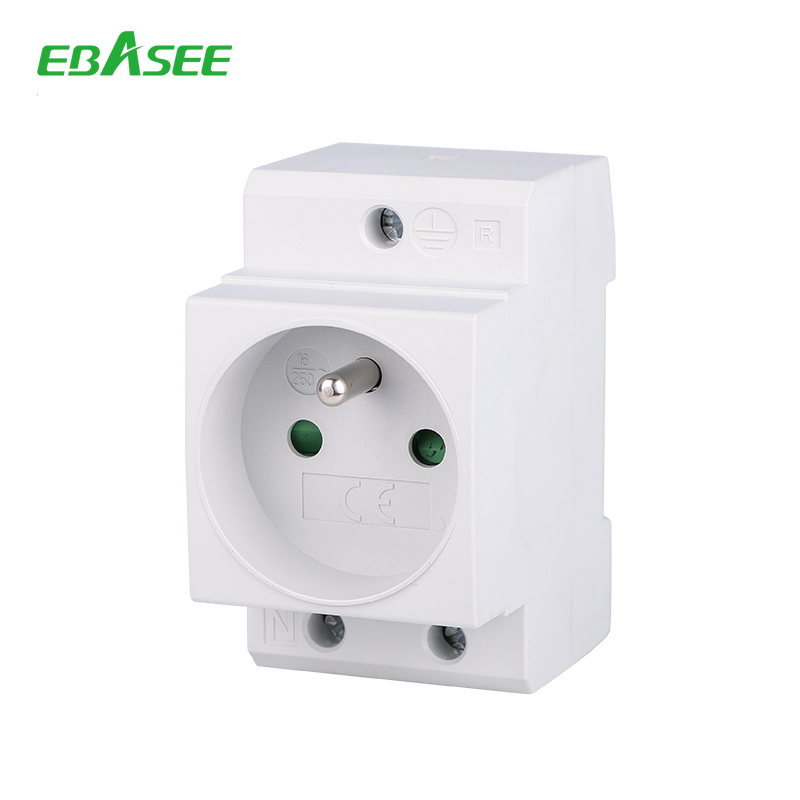

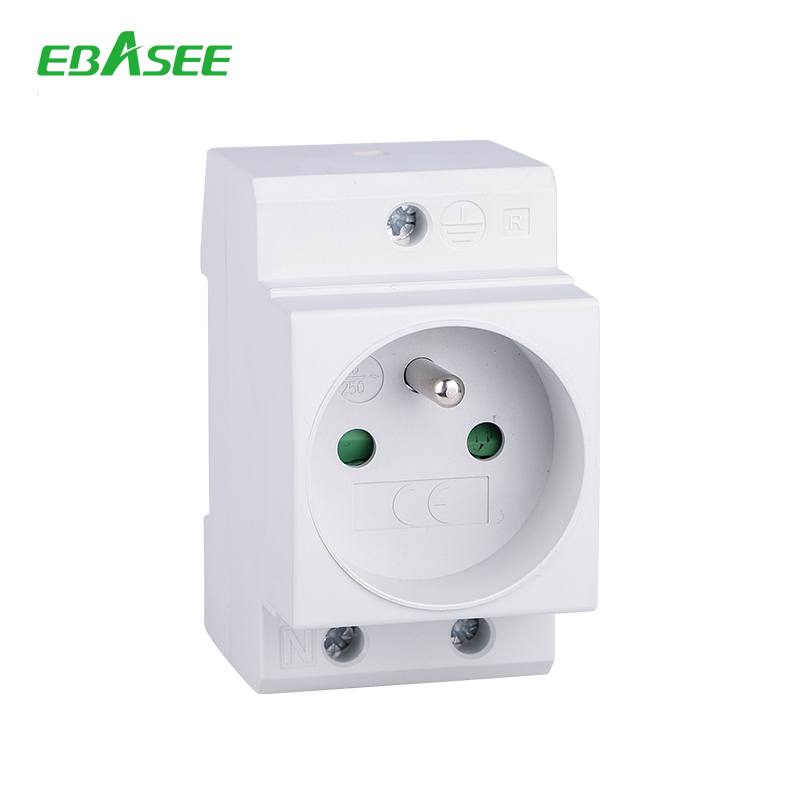

European Standard Modular Power Socket
This modular socket is designed for European market applications. It features a standard European plug interface and is suitable for DIN rail mounting.
Technical Specifications
Product Overview
Modular European Power Socket
This modular power socket is designed specifically for European market standards, offering reliable power transmission for residential, commercial, and industrial electrical installations. Engineered for 35mm DIN rail mounting, it integrates seamlessly into distribution boards and control panels. With a robust design supporting up to 25A and a compact 45mm width, it provides a flexible solution for diverse electrical setups.

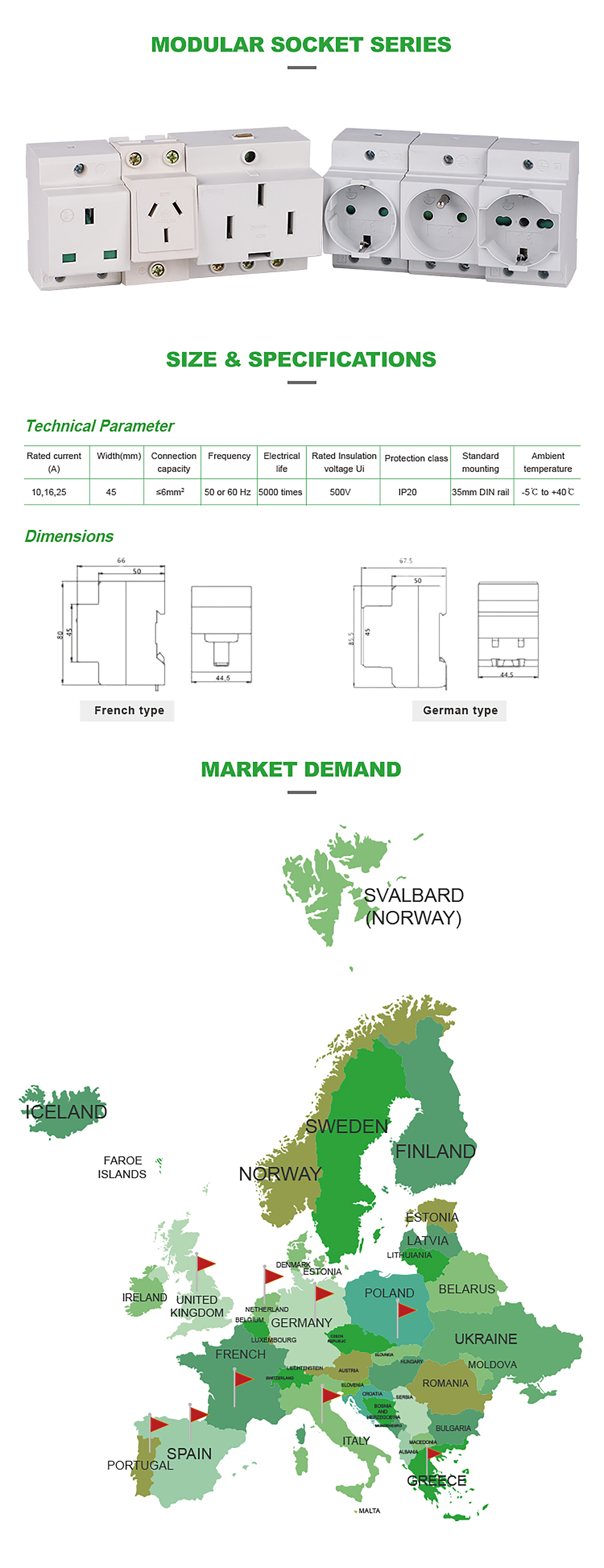

Technical Specifications
- Rated Current Options
- 10A16A25A
- Rated Insulation Voltage (Ui)
- 500 V
- Operating Frequency
- 50 or 60 Hz
- Connection Capacity
- ≤6mm²
- Electrical Life
- 5000 cycles
Installation & Environment
Protection Class
IP20
- Mounting
- 35mm DIN rail
- Module Width
- 45 mm
- Ambient Temperature Range
- -5°C to +40°C
Certifications & Compliance
- International Certifications
- CERoHSTUVCNASKEMACBSEMKOCCC
