EPS Foam Production Line
This EPS foam production line expands and consolidates polystyrene beads through steam heating and pressure treatment. The resulting blocks and shaped products are used in construction and packaging.
Technical Specifications
Overview
About EPS Production Lines
Expandable Polystyrene (EPS) is a versatile, lightweight plastic foam insulation material created from solid polystyrene beads. Through a precise process of steam heating and pressure treatment, the beads expand up to 50 times their original size before being fused into blocks or molded shapes. This production line is designed to deliver high-quality EPS products essential for construction insulation and protective packaging for electronics and appliances.
- Common Applications
- Construction InsulationRoofingWall InsulationCeiling InsulationFood PackagingElectronic Equipment PackagingHome Appliance Packaging
System Components
Included Equipment

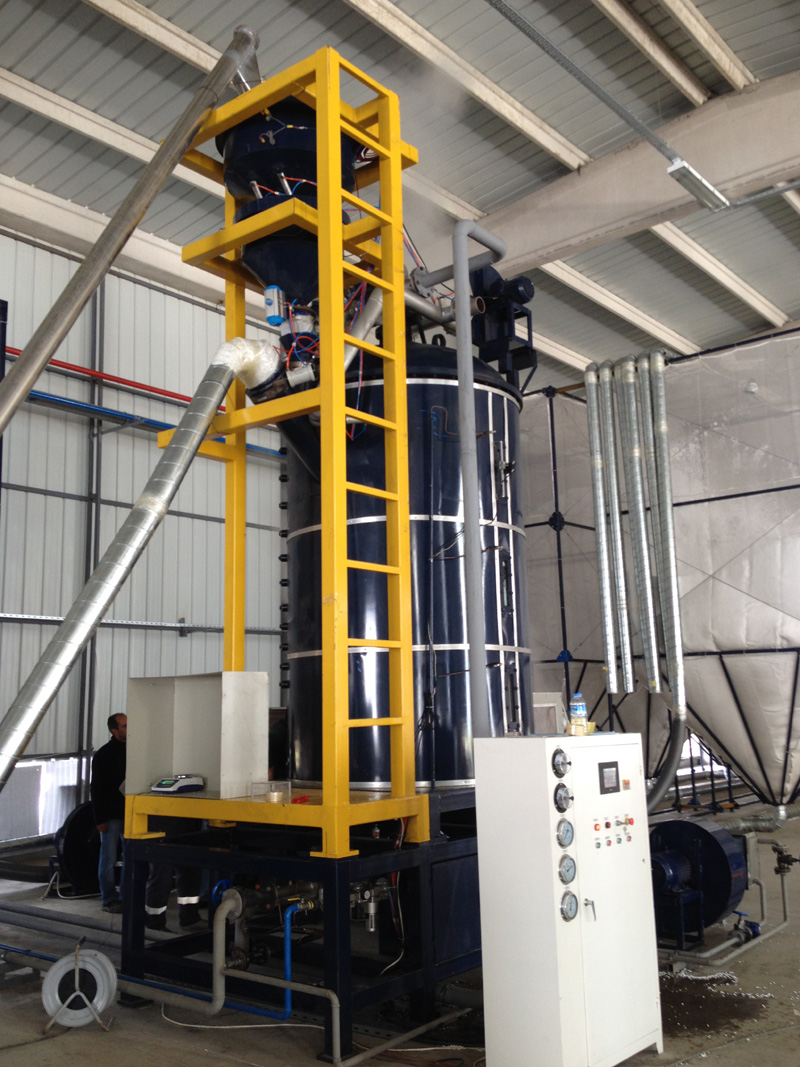

- Pre-expander

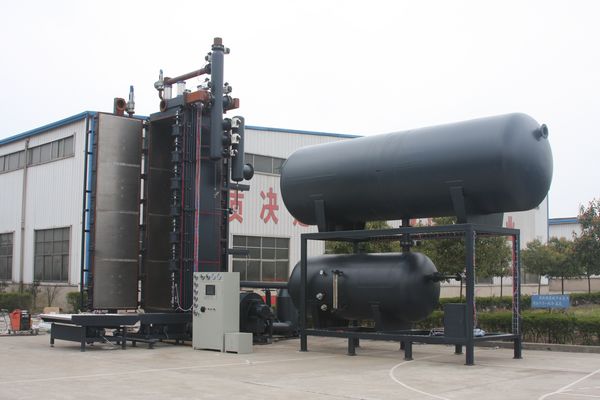

- EPS Block Molding Machine
- EPS Cutting Machine
- Auxiliary Equipments
Technical Specifications
Model Performance Data
| Specification | HIM-EPS-2000 | HIM-EPS-3000 | HIM-EPS-6000 |
|---|---|---|---|
| Capacity (15kg/m³ - m³/h) | 20 | 30 | 60 |
| Block Size (m³) | 2x1.2x1 | 3x1.2x1 | 6x1.2x1 |
| Installed Power (kW) | 90 | 90 | 105 |
| Workshop Area (m²) | 1000 | 1200 | 1500 |
- Customization
- All listed parameters are based on standard configurations; customized services are available upon request.
