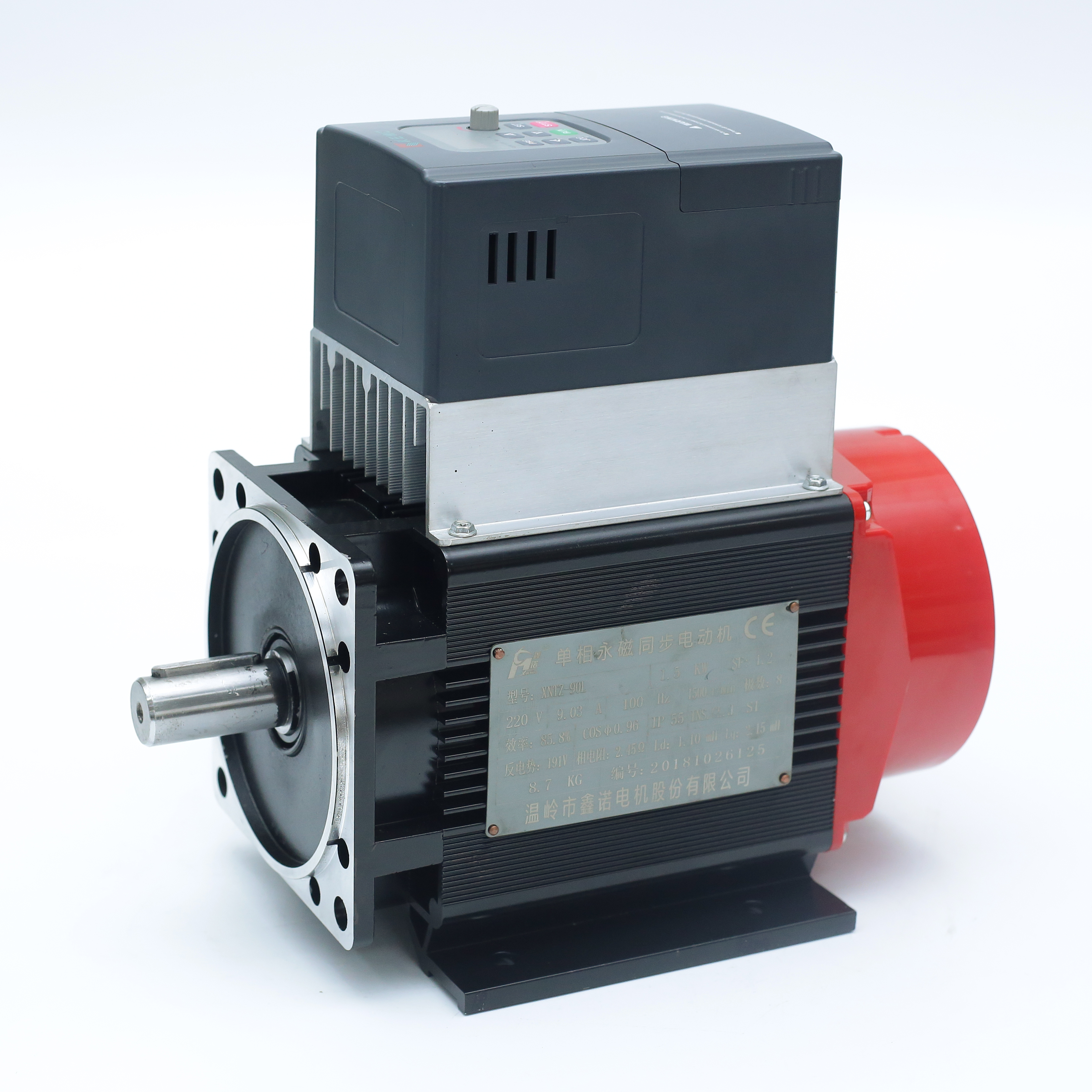

Energy-Efficient Permanent Magnet Synchronous Motor
This energy-efficient permanent magnet synchronous motor features adjustable rotation direction. Operating at 220V, it achieves 1500 RPM and offers IP55 protection.
Technical Specifications
Product Overview
High-Efficiency Synchronous Performance
The XNTZ series permanent-magnet synchronous motor utilizes rare-earth NdFeB materials to provide superior power density and efficiency. Designed for industrial applications such as fans, pumps, and compressors, this motor maintains high performance and a stable power factor even under varying load conditions. It offers a significant energy savings of 30-40% compared to standard IE1 motors, facilitating a fast return on investment.
Key Features
Advanced Characteristics
- IE4 efficiency standard compliance
- Compact volume and lightweight construction
- Variable frequency vector control for high accuracy
- Modular design for flexible configuration
- Compatible with standard asynchronous motor mounting structures
- Suitable Applications
- Industrial FansWater PumpsPavement ConstructionAir Compressors
Technical Specifications
Operating Performance
96 %
Efficiency Rating
0.98 cosΦ
Power Factor
Performance Data Table
| Type | Power (kW) | Voltage (V) | Current (A) |
|---|---|---|---|
| XNTZ-120-90S | 0.75 | 380 | 1.5 |
| XNTZ-120-90L | 4 | 380 | 5.7 |
| XNTZ-180-112S | 5.5 | 380 | 7.1 |
| XNTZ-210-132L | 30 | 380 | 38.5 |
