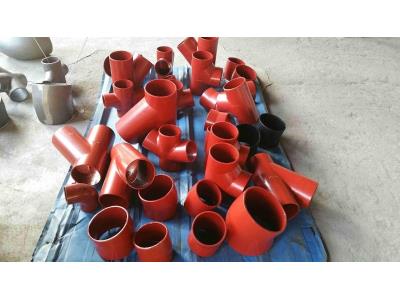

EN877 Cast Iron Pipe Fittings
These cast iron pipe fittings conform to EN877, DIN EN877, and BS EN877 standards. They feature a two-part epoxy resin coating with a dry thickness of 100-400 microns or a two-part epoxy resin painting with a dry thickness of 40-80 microns.
Technical Specifications
Product Overview
High-Performance Cast Iron Drainage Solutions
These EN877 compliant cast iron pipe fittings are engineered for robust sewer and drainage systems in high-rise buildings. Constructed from high-density grey cast iron, they feature a specialized two-part epoxy resin coating that provides exceptional corrosion resistance. Designed for durability and structural integrity, these fittings ensure reliable connections in demanding environmental conditions.
Technical Specifications
Coating Specifications
| Coating Type | Avg. Dry Thickness |
|---|---|
| Two-part epoxy resin powder | 100-400 microns |
| Two-part epoxy resin painting | 40-80 microns |
- Material
- Grey cast iron
- Size Range
- DN40 - DN300
- Tensile Strength
- 350 MPA
- Ring Crush Resistance
- 220 MPA
Compliance & Standards
- Supported Standards
- DIN EN877ISO6594BS EN877DIN19522GB12772ASTM A888CISPI301KSD 4307
Features
Key Features
- Smooth surface finish
- High density material
- Corrosion-resistant coating
- High structural strength
- Lightweight design
Logistics
- Packaging
- Wooden crates with steel bands
