Technical Specifications
Overview

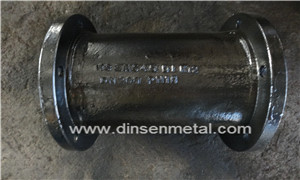

EN545 Ductile Iron Pipe Fittings
These ductile iron fittings, manufactured according to EN545 standards, are engineered for high-performance fluid conveyance in potable water and wastewater systems. Designed for both underground and above-ground installations, they offer exceptional strength, durability, and corrosion resistance, often enhanced by protective epoxy coatings. The comprehensive range of configurations ensures compatibility with diverse pipeline requirements, providing a reliable and long-lasting connection solution.
Technical Standards
Pressure Rating
16 PN
Pressure Class
- Compliance Standard
- EN545
- Material
- Ductile Iron
Available Configurations
- Available Types
- Double Flanged Bend 90°Double Flanged Duckfoot Bend 90°Double Flanged Long Radius Bend 90°Double Flanged Bend 45°Double Flanged Bend 22.5°Double Flanged Bend 11.25°All Flanged TeeAll Flanged Tee with 45° Angle BranchAll Flanged CrossingDouble Flanged TaperBlank FlangeReducing FlangesSocket-Spigot FittingsFlanged SocketFlanged SpigotCaps
Application
Primary Applications
- Potable water pipelines
- Wastewater systems
- Underground installations
- Above-ground installations
Key Features
High StrengthCorrosion ResistantDurableSmooth Internal SurfaceFlanged Ends
