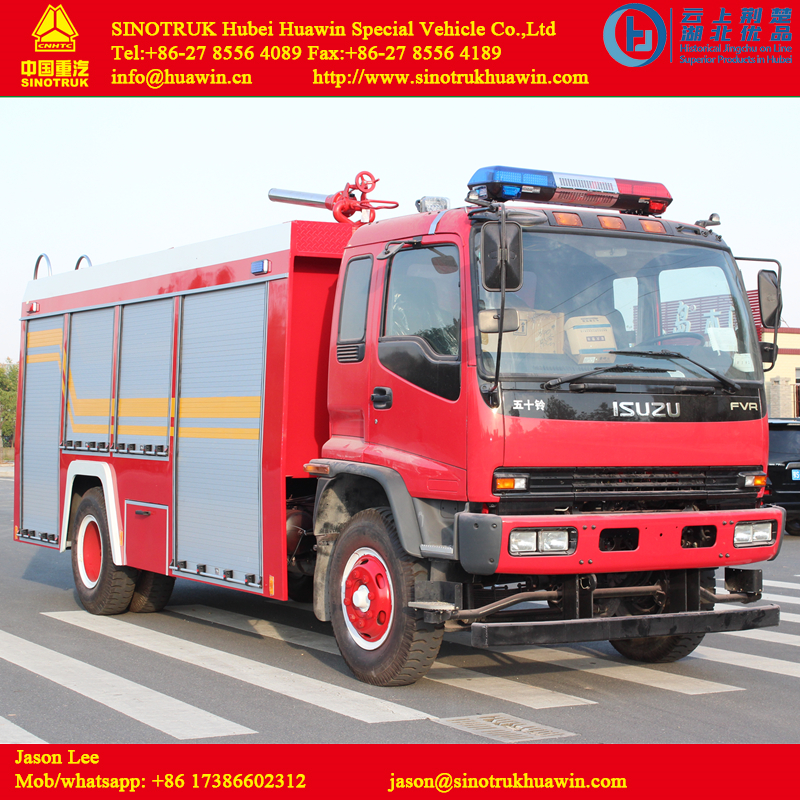

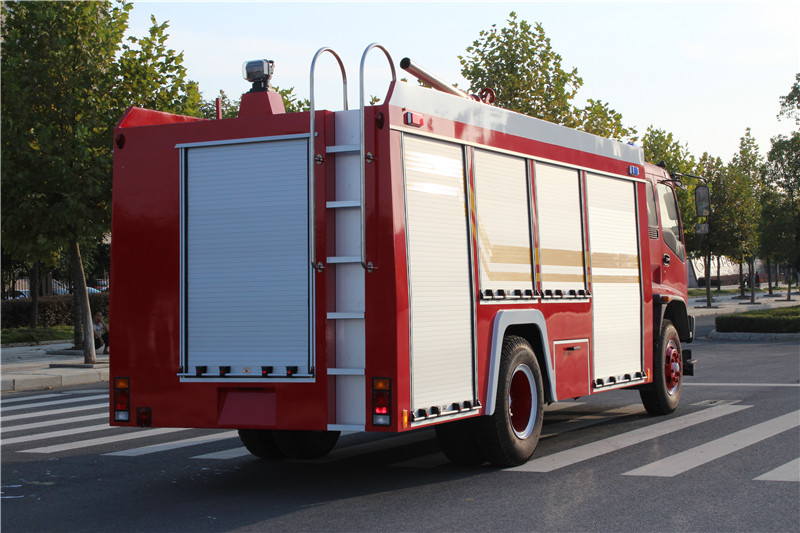

Emergency Fire Suppression Truck
This emergency fire suppression truck is designed for rapid response and effective fire suppression. It features a robust chassis, powerful engine, water tank, and high-pressure water pump.
Technical Specifications
Overview
Emergency Fire Suppression Vehicle
This specialized emergency response vehicle is engineered for rapid deployment and effective fire suppression in urban and industrial environments. Featuring a robust chassis and a high-capacity water and foam tank system, it provides reliable performance for critical firefighting operations. The vehicle includes a double-row cabin to accommodate a full crew and is equipped with advanced pumping capabilities to handle diverse emergency scenarios.
Vehicle Dimensions & Weight
- Dimensions (L x W x H)
- 8200 x 2500 x 3550 mm
- Unladen Weight
- 9000 kg
Engine & Drivetrain
Engine Performance
240 hp
Power
706 N.m
Max Torque
7,800 cc
Engine Capacity
Emission Rating
EURO IV
- Engine Type
- 6-cylinder in line, Turbo-charged and inter-cooled
- Transmission
- Manual, 6-forward & 1-reverse
Firefighting Systems
Tank Capacities
| Tank Type | Capacity |
|---|---|
| Water Tank | 5,000 |
| Foam Tank | 1,000 |
Pump Performance
- 60 L/S at 1.0 MPa
- 30 L/S at 2.0 MPa
Operational Range
60 m
Water Range
50 m
Foam Range
Cabin & Crew
- Crew Capacity
- 6
- Cabin Type
- Double Cabin
- Steering Position
- LHD
General Specifications
- Fuel Type
- Diesel
- Year of Manufacture
- 2018
