Technical Specifications
Overview

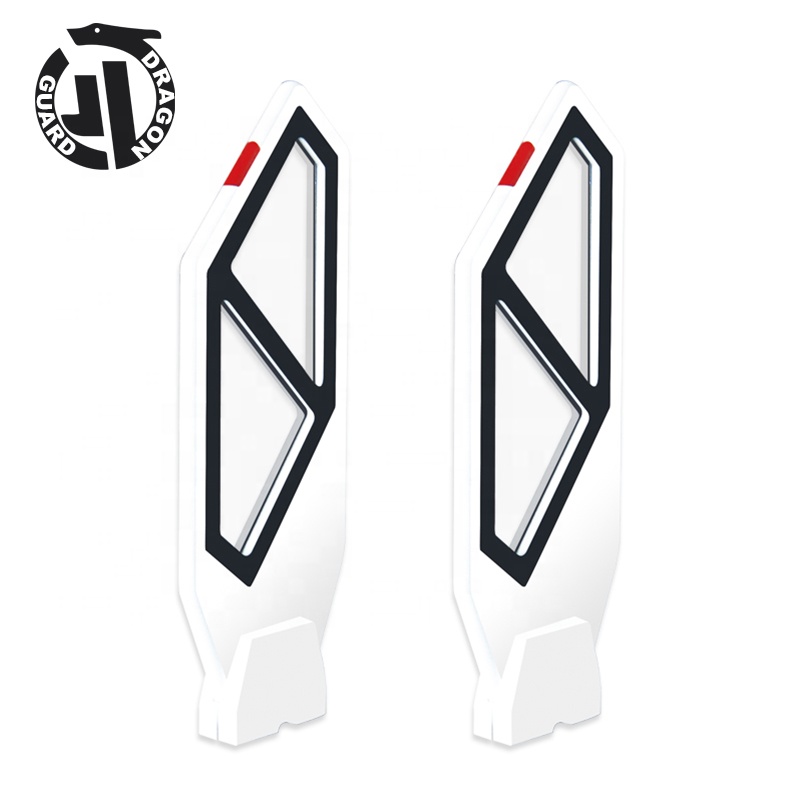

Advanced EM Security for Libraries & Retail
This electromagnetic (EM) security system provides a robust anti-theft solution specifically designed for bookstores and libraries. Featuring high sensitivity and a wide detection range, the system effectively prevents unauthorized removal of tagged items while maintaining a sleek, modern aesthetic. It is highly customizable and easy to integrate into existing retail or educational environments.
Technical Specifications
Available Colors
White
- Technology
- EM (Electromagnetic)
- Model Number
- ES001
- Material
- Advanced Resin-Glass + MDF
Detection Performance
Detection Range
100 cm
Single Aisle Max
180 cm
Double Aisle Max

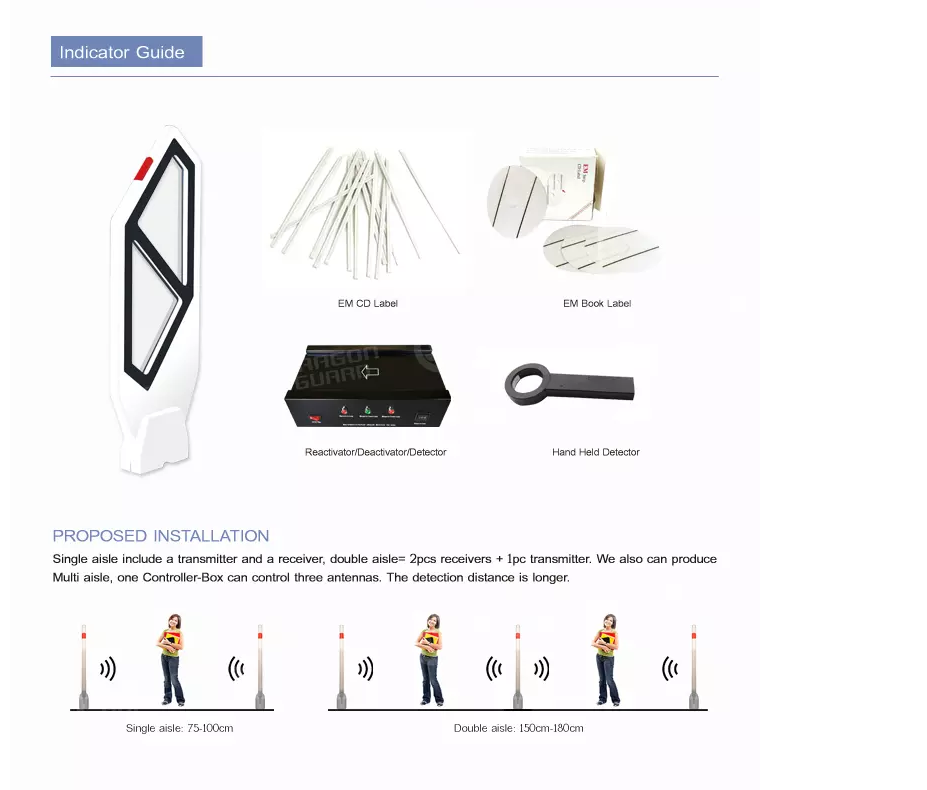

Installation Options
- Single aisle: 1 Transmitter + 1 Receiver (75-100cm)
- Double aisle: 1 Transmitter + 2 Receivers (150-180cm)
- Multi-aisle: 1 Controller-Box manages up to 3 antennas
Customization & Features
Optional Features
- Integrated People Counter
- Hand-held Detectors
- EM CD Labels
- EM Book Labels
- Reactivator/Deactivator Units
- Customizable Elements
- LogoColorShapePCB BoardAlarm LightFrame MaterialCable LengthAdvertisement Panels
Logistics & Compliance
Packaging Details
| Component | Weight (kg) | Dimensions (cm) |
|---|---|---|
| System Unit | 34 | 151 x 62 x 18 |
| Controller Box | 6.5 | 43 x 33 x 32 |
Lead Time Table
| Quantity (Sets) | Est. Time (Days) |
|---|---|
| 1 - 10 | 10 |
| 11 - 50 | 15 |
| > 50 | 0 |
- Certifications
- CEISOROHSSGSMSDS
