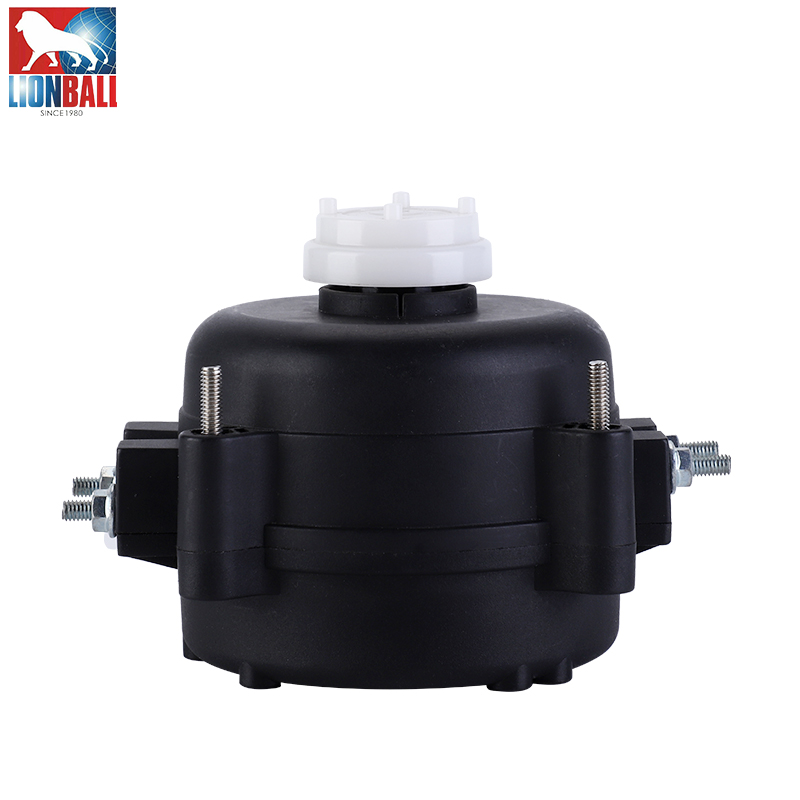

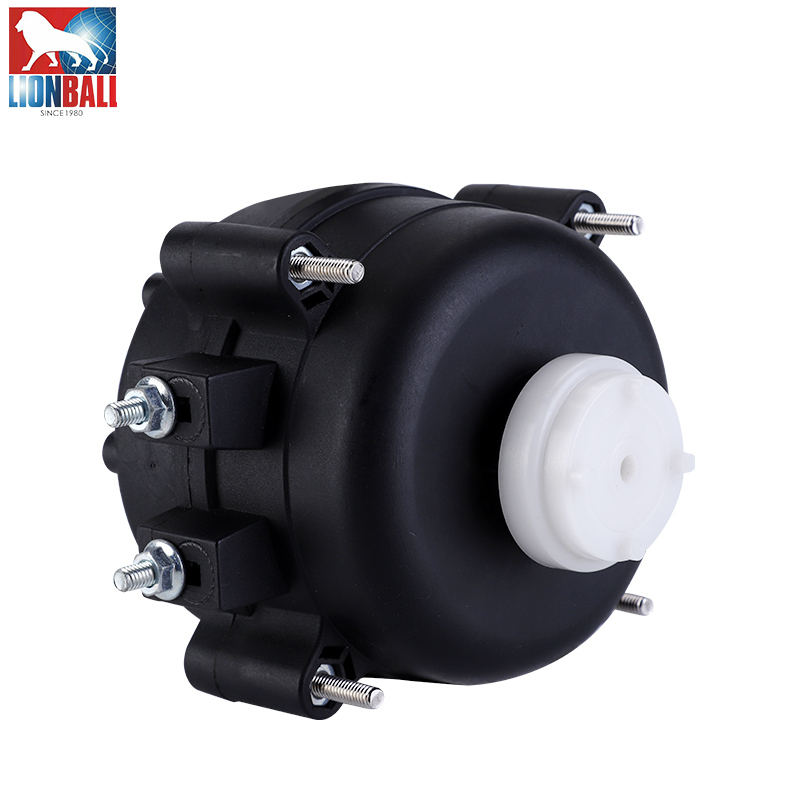

Electronically Commutated Motor ECM20
This electronically commutated motor features a special wide temperature range lubrication system. Mounting hardware and a water shield are included.
Technical Specifications
Overview
High-Efficiency Electronically Commutated Motor
The ECM20 is an advanced electronically commutated motor designed specifically for refrigeration applications, including evaporators and condensers. It serves as an energy-saving replacement for traditional shaded pole and PSC induction motors, boasting an efficiency rate of up to 70% compared to the 20% efficiency typically found in shaded pole motors. Featuring a special wide-temperature range lubrication system, this motor ensures reliable performance in demanding environments.
Key Features
- Included Accessories
- Mounting hardwareWater shield
Technical Specifications
Performance Ratings
38 W
Max Output
70 %
Efficiency
1,550 rpm
Rated Speed
Electrical Parameters
| Model | Voltage | Frequency | Current | Input/Output |
|---|---|---|---|---|
| ECM20A110 | 110V | 50/60Hz | 0.5 | 30/20W |

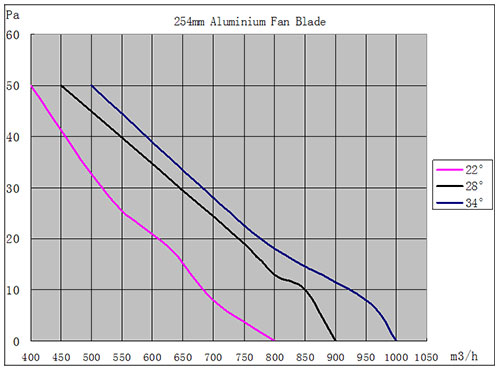

Airflow Performance
Airflow Performance (at 1550 RPM)
| Impeller Diameter | Blade Angle | Input Power |
|---|---|---|
| 254 | 22 | 16 |
| 254 | 28 | 25 |
| 254 | 31 | 29 |
