Electromagnetic Survey System
The Electromagnetic Survey System is designed for comprehensive geophysical exploration and subsurface imaging. It integrates a high-power transmitter and sensitive receiver for accurate data acquisition.
Technical Specifications
Overview
High-Power Electromagnetic Survey System
This advanced electromagnetic survey system is engineered for deep subsurface exploration, offering versatile capabilities for geophysical research and resource detection. It integrates high-power transmission with precise signal processing to deliver reliable data for mineral, petroleum, and geothermal exploration. Designed for rugged field operations, the system supports multiple survey methodologies including CSAMT, TDIP, FDIP, SIP, and CR to meet diverse engineering and environmental monitoring requirements.
Key Applications
- Primary Applications
- Geothermal ExplorationGroundwater DetectionPetroleum & Natural GasMineral ExplorationGeotechnical EngineeringEnvironmental MonitoringActive Fault Survey

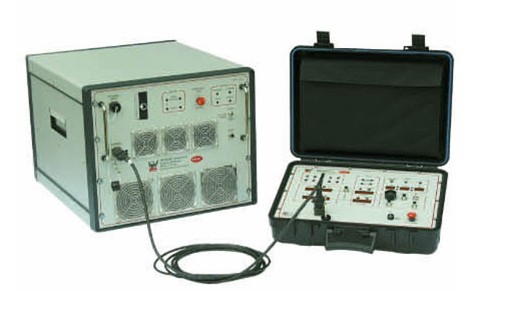

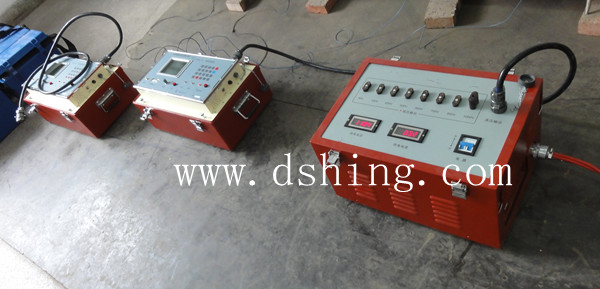

System Components
Included Components
- DSH-P30 High-power power supply
- DSH-T30 High-power electromagnetic transmitter
- DSH-R5 Array electromagnetic receiver
- Magnetic sensor
- Processing software
- Related accessories
Technical Performance
Operating Metrics
30 kW
Maximum Power
1,000 V
Maximum Voltage
30 A
Maximum Current
- Frequency Range
- 8000Hz ~ 1/128Hz
- Synchronization Accuracy
- UTC ± 20nS
Safety & Control
Protection Features
Overvoltage ProtectionOvercurrent ProtectionOverheating ProtectionShort Circuit Protection
- Operating Modes
- Automatic or Manual
