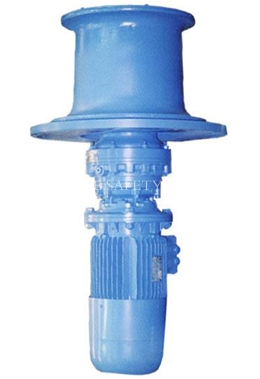

Electric Vertical Marine Capstan
This electric vertical marine capstan is designed for mooring and anchoring operations on vessels. Its vertical configuration saves deck space while providing a secure grip for ropes and hawsers.
Technical Specifications
Overview
Electric Vertical Marine Capstan
This Electric Vertical Marine Capstan is engineered for reliable mooring and anchoring operations on a wide range of vessels. Featuring a space-saving vertical configuration, it provides a secure grip for ropes and hawsers while ensuring efficient line handling. Built for durability in harsh marine environments, this equipment combines robust electric motor power with precise control, making it an essential component for safe maritime operations.
Technical Specifications
Performance Parameters
| Model | Rated Load (kN) | Rated Load (T) | Warping Speed (m/min) | Motor Power (kW) |
|---|---|---|---|---|
| CM-EC5 | 5 | 0.5 | >=12 | 3/1.2 |
| CM-EC10 | 10 | 1 | >=12 | 4.3/1.7 |
| CM-EC15 | 15 | 1.5 | >=12 | 8.5/3.5 |
| CM-EC20 | 20 | 2 | >=12 | 11/11/7.5 |
| CM-EC30 | 30 | 3 | >=12 | 16/16/11 |
| CM-EC30-50 | 50 | 5 | >=12 | 22/22/16 |
| CM-EC50 | 50 | 5 | >=12 | 22/22/16 |
| CM-EC70 | 70 | 7 | >=12 | 30/30/22 |
| CM-EC100 | 100 | 10 | >=12 | 45/45/30 |
| CM-EC120 | 120 | 12 | >=12 | 60/60/45 |
| CM-EC150 | 150 | 15 | >=12 | 60/60/45 |
Customization
- Design Flexibility
- Technical parameters and dimensions are not fixed and can be specially designed to meet specific customer requirements.
