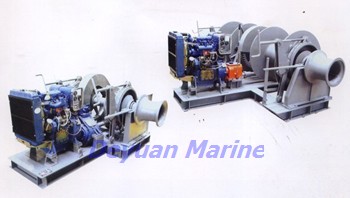

Hydraulic Anchor Windlass Mooring Winch
This hydraulic anchor windlass and mooring winch is designed for marine applications. It offers reliable anchor handling and mooring capabilities.
Technical Specifications
Overview
Robust Marine Anchoring and Mooring Solution
This hydraulic anchor windlass and mooring winch is engineered for reliable performance in demanding marine environments. Designed to facilitate efficient anchor handling and vessel mooring, it features a powerful hydraulic drive system and durable construction. It is built to meet rigorous industry standards, ensuring safety and precision for various maritime operations.
Technical Specifications
Supported Chain Diameters
- 50
- 52
- 54
Performance Metrics
12 m/min
Mooring Speed
9 m/min
Working Speed
60 KN
Mooring Pull
Working Load Capacity
| Chain Diameter (mm) | Working Load (KN) |
|---|---|
| 50 | 106.3 |
| 52 | 114.9 |
| 54 | 123.9 |
- Drum Capacity
- Φ 26 * 200 mm * m
Compliance & Standards
Steel Grade
Grade 2Grade 3
- Certifications
- CCSLRGLRS
