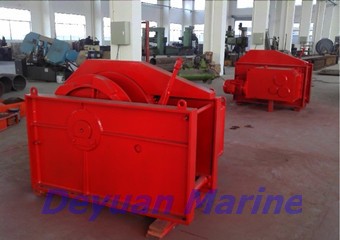

Electric Single Gypsy Mooring Winch
This electric mooring winch delivers a rated pull of 20KN. It offers a line speed of at least 12 meters per minute and accommodates a drum capacity of Φ15*100m.
Technical Specifications
Product Overview
Marine Electric Mooring Winch
This heavy-duty electric single gypsy mooring winch is engineered for reliable performance in demanding maritime environments, including ports, harbors, and offshore facilities. Designed for secure mooring operations, it features a robust construction with a single gypsy wheel for efficient chain handling. The system integrates a high-torque electric motor and a reliable braking mechanism to ensure safe and controlled line handling across various vessel types.
Certifications
- Authorized Certifications
- CCSLRGLRS
Technical Specifications
Performance Metrics
| Drum Load (kN) | Holding Load (kN) | Power (kW) | Nominal Speed (m/min) |
|---|---|---|---|
| 50 | 150 | 15 | 16 |
| 720 | 1,200 | 22 | 20 |
| 80 | 240 | 15 | 25 |
| 100 | 310 | 15 | 32 |
| 125 | 360 | 15 | 38 |
| 160 | 480 | 15 | 50 |
| 200 | 630 | 15 | 12 |
Rope Compatibility
45 mm
Nylon Rope Diameter
20.5 mm
Steel Rope Diameter
