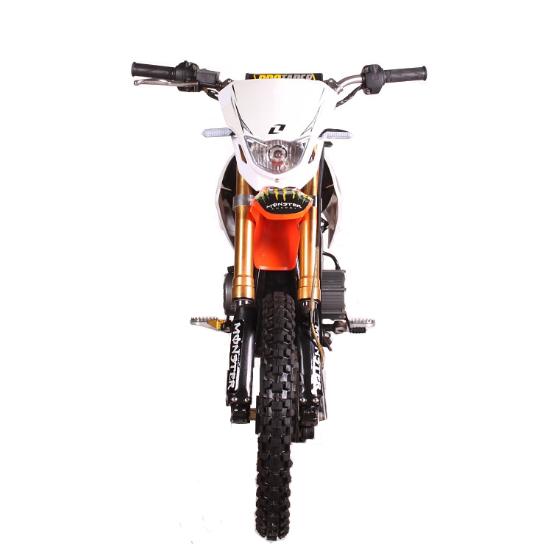

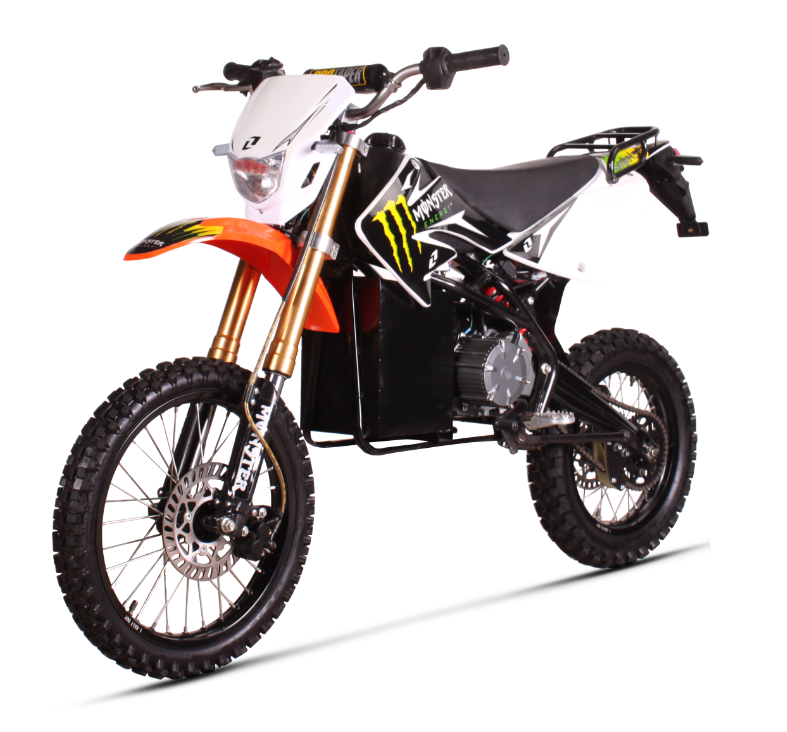

Electric Off-Road Dirt Bike with High-Power Motor
This electric dirt bike is designed for off-road use. It features a powerful motor and antiskidding, wear-resistant tires.

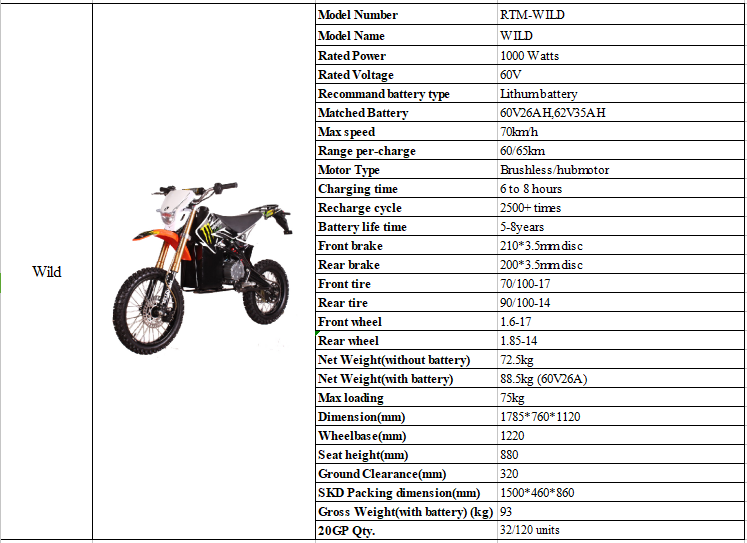

Technical Specifications
Overview
High-Performance Electric Off-Road Dirt Bike
This electric dirt bike is engineered for demanding off-road environments, featuring a high-torque 1000W brushless hub motor and a robust 60V system. Designed with a focus on durability and rider control, it utilizes advanced lithium battery technology to provide a long service life and reliable power delivery. Its unique design combines anti-skidding, wear-resistant tires with a professional-grade suspension system to handle rugged terrains with ease.
- Core Features
- Anti-skidding TiresWear-resistantOff-road OptimizedEco-friendlyHigh-Power Motor
Performance Metrics
Key Performance Indicators
1,000 W
Rated Power
70 km/h
Max Speed
65 km
Max Range
Power System
- Motor Type
- Brushless Hub Motor
- System Voltage
- 60 V
Battery & Charging
Battery Specifications
| Feature | Details |
|---|---|
| Battery Type | Lithium Battery |
| Available Capacities | 60V 26AH / 62V 35AH |
| Charging Time | 6 to 8 hours |
| Recharge Cycles | 2500+ times |
| Service Life | 5-8 years |
Chassis & Braking
Braking System
- Front: 210 x 3.5mm Disc Brake
- Rear: 200 x 3.5mm Disc Brake
Wheels & Tires
Tire Sizing
| Position | Tire Size | Wheel Size |
|---|---|---|
| Front | 70/100-17 | 1.6-17 |
| Rear | 90/100-14 | 1.85-14 |
Physical Dimensions
Vehicle Dimensions
- Overall Size: 1785 x 760 x 1120 mm
- Wheelbase: 1220 mm
- Seat Height: 880 mm
- Ground Clearance: 320 mm
Weight & Loading
- Net Weight (Base)
- 72.5 kg
- Max Loading Capacity
- 75 kg
Logistics
Shipping Information
- SKD Packing Dimension: 1500 x 460 x 860 mm
- Gross Weight (with battery): 93 kg
- 20GP Container Quantity: 32/120 units
