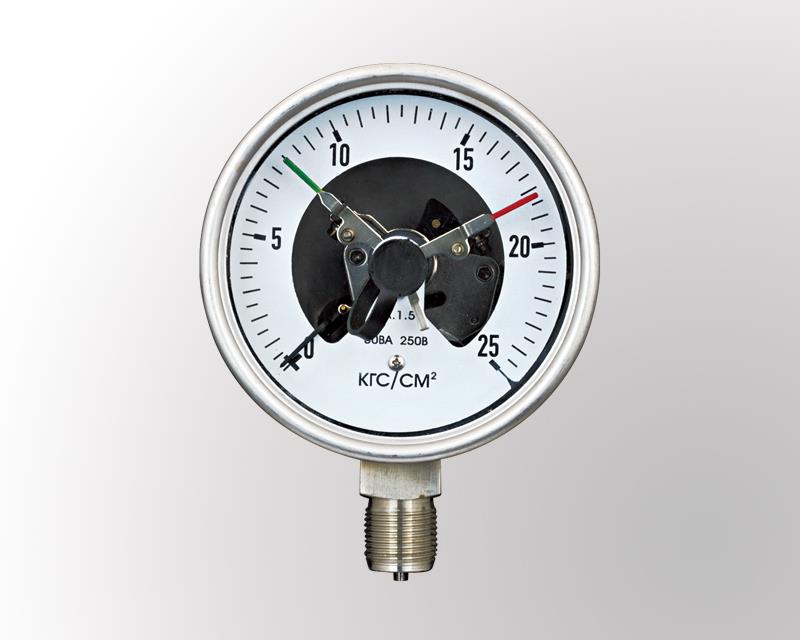

Electric Contact Pressure Gauge
This electric contact pressure gauge is designed for industrial applications. It features adjustable high and low limit contacts for process control and alarm functions.
Technical Specifications
Overview
Industrial Precision Monitoring
This electric contact pressure gauge is engineered for demanding industrial applications requiring precise pressure measurement and automated process control. Featuring a robust metal casing, it is built to withstand harsh environments while providing clear, reliable analog readings. The integrated adjustable high and low limit contacts allow for seamless integration into control systems for alarms and process management.
Electrical Specifications
- Rated Voltage
- 380 V
- Power Rating
- 10 VA
- Contact Voltage Limit
- 250 V
Measurement Performance
Temperature Range
0 °C
Min Temperature
50 °C
Max Temperature
- Accuracy Class
- 1.5
- Pressure Unit
- kgf/cm²
- Maximum Pressure Range
- 25 kgf/cm²
Features
Design Highlights
- Robust metal enclosure
- Analog dial display
- Easy-to-read markings
- Industrial-grade durability
- Control Features
- Adjustable High LimitAdjustable Low LimitAlarm FunctionProcess Control
