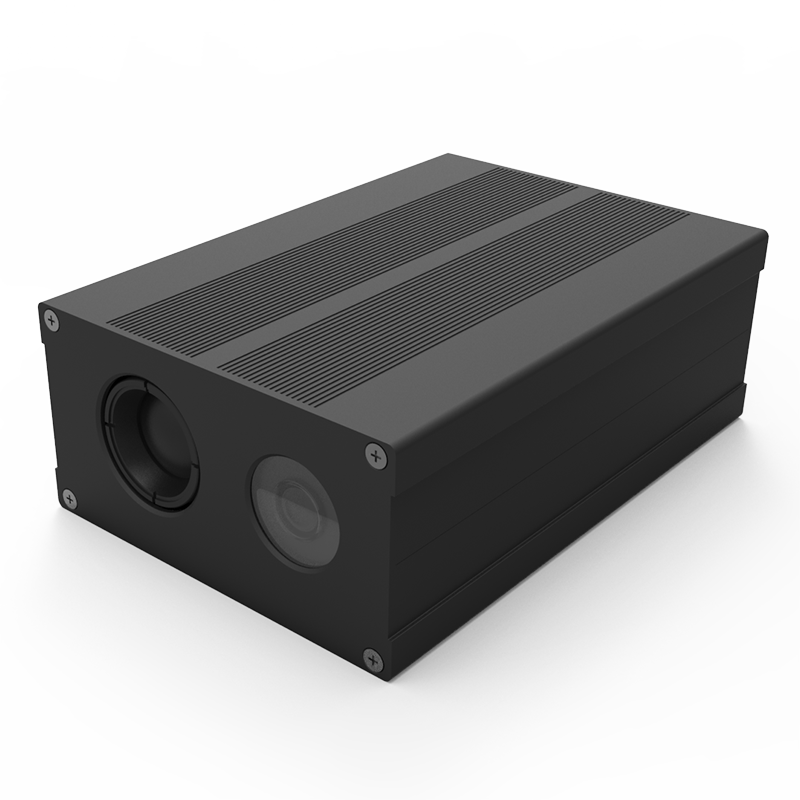

Dual Spectral Infrared Thermal Imaging System for Body Temperature Measurement
This dual spectral infrared thermal imaging system accurately measures body temperature. It features dual lenses and precise thermal imaging capabilities for non-contact temperature monitoring and thermal analysis.
Technical Specifications
Product Overview
Advanced Dual-Spectral Thermal Screening
This dual-spectral infrared thermal imaging system provides rapid, non-contact body temperature measurement designed for high-traffic public environments. By integrating real-time blackbody calibration and intelligent face recognition, the system ensures high accuracy and efficient screening. It is an essential tool for epidemic prevention in locations such as airports, ports, and transit stations, offering automated alerts and data traceability.
Performance & Accuracy
Temperature Accuracy
0.5 °C
Standard Accuracy
0.3 °C
With Blackbody Calibration
Screening Capabilities
- Non-contact rapid measurement
- Multi-target simultaneous screening
- Automatic temperature calibration
- Pre-set alarm thresholds
Imaging & Technical Specs
Core Features
Face CaptureFace RecognitionAutomatic AlarmData Traceability
- Thermal Resolution
- 384 * 288640 * 480
System Integration & Data
Data Management
- Temperature measurement client software
- Visual data platform
- Third-party platform integration
- Public security database linking
- Face Database Capacity
- 10000 records
Deployment
- Installation Options
- Tripod mountable, quick deployment and removal
