Technical Specifications

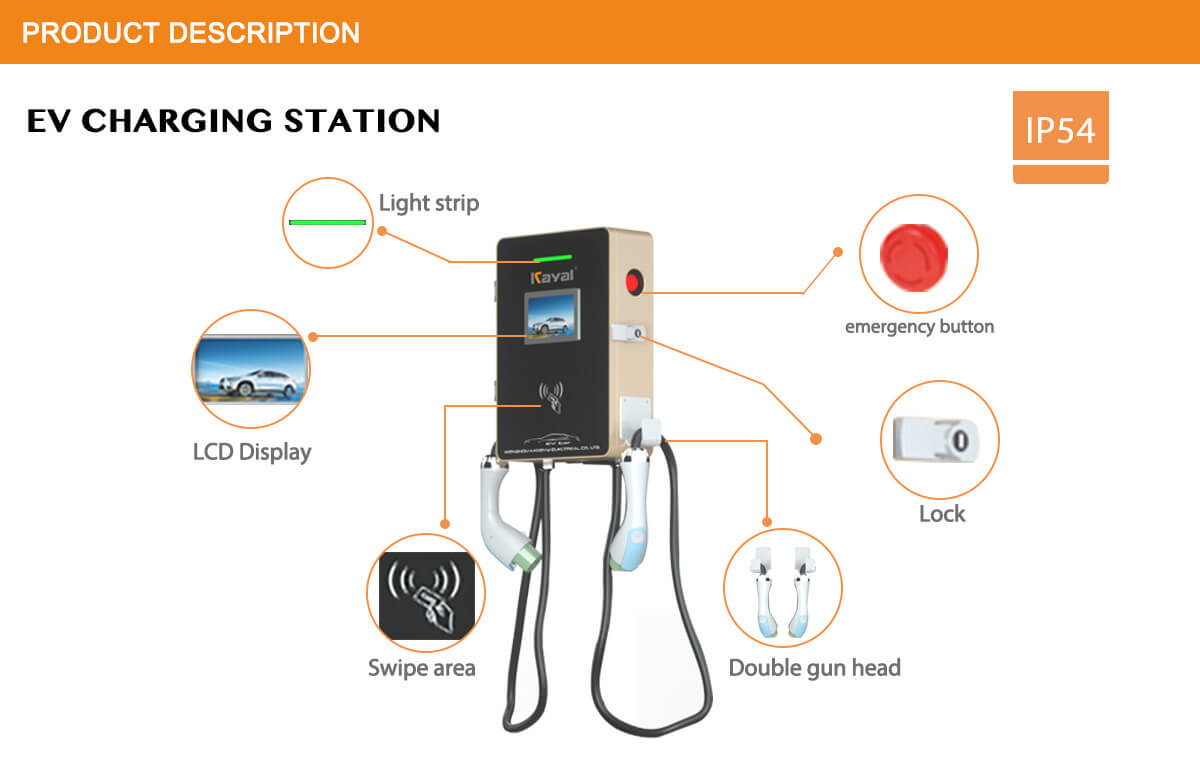

Product Overview
Dual Port AC Charging Solution
This 7kW AC charging station is designed for high-efficiency power delivery in public and commercial spaces, featuring dual charging ports to serve two vehicles simultaneously. It offers a user-friendly experience with a 4.3-inch color touch screen and secure IC card authentication for identity identification and cost calculation. Built with a robust IP54-rated enclosure, the station is suitable for diverse environments including residential quarters, shopping plazas, and high-speed service areas.
Core Performance
Key Performance Metrics
7 kW
Power Output
32 A
Max Current
220 V
Rated Voltage
Technical Specifications
Electrical Parameters
| Parameter | Value |
|---|---|
| Input/Output Voltage | AC220V ± 20% |
| Input Frequency | 50 ± 10Hz |
| Measurement Accuracy | Level 0.5 |
| Cable Length | 5m |
Smart Features
Charging Modes
- Automatic Full Charge
- Fixed Time Charging
- Fixed Amount Charging
- Fixed Power Charging
- Connectivity & Protocols
- OCPP 1.6RS-485GPRS NetworkingRFID/IC Card
Physical Construction

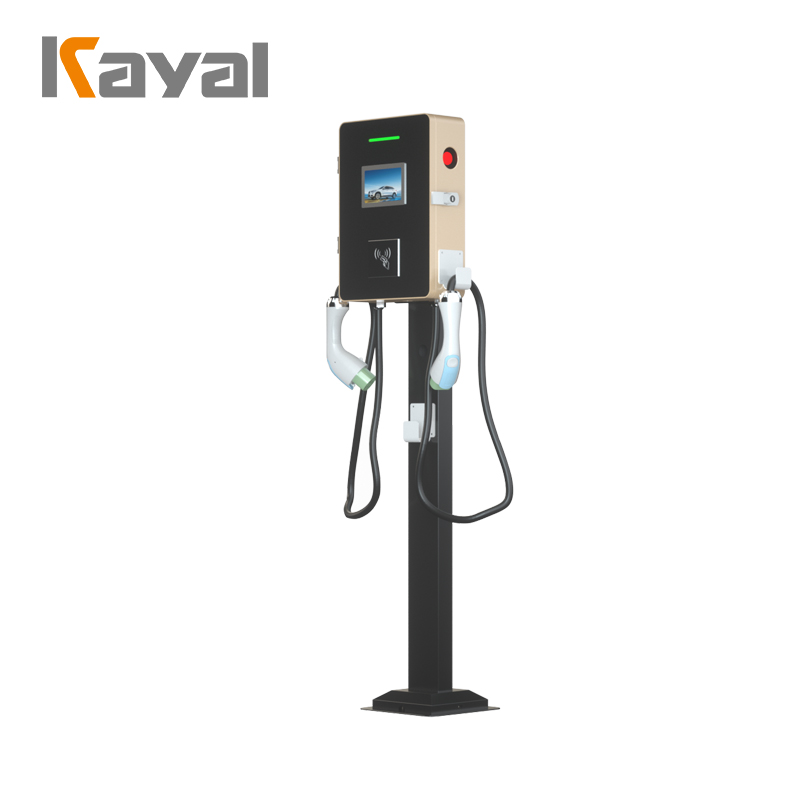

Installation Methods
Wall-mountedColumn-type (Floor Stand)
- Ingress Protection
- IP54
- Wall-mount Dimensions
- 292 x 126 x 417 mm
Operating Environment
- Operating Temperature
- -25°C to 50°C
- Relative Humidity
- ≤ 90% (at 25°C), non-condensing

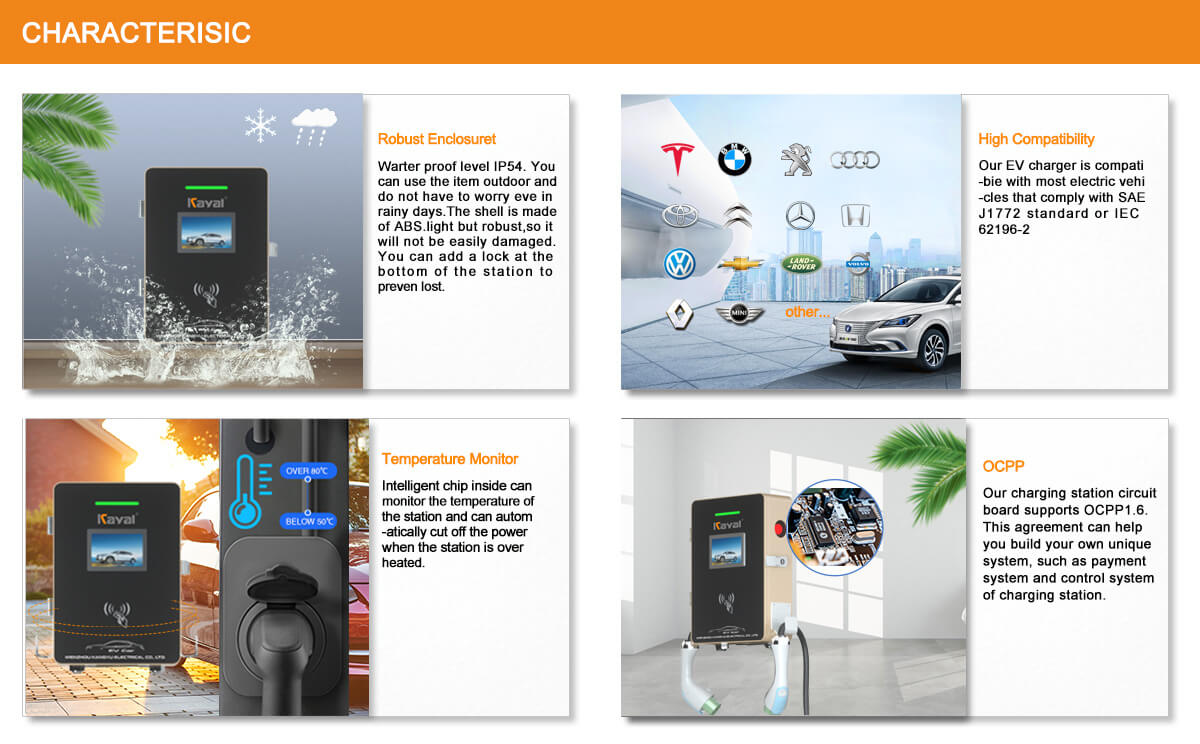

Safety & Protection
Integrated Safety Systems
- Emergency Stop Button
- Leakage Protection
- Intelligent Temperature Monitoring
- Automatic Overheat Power Cut-off
- Anti-theft Bottom Lock Support
