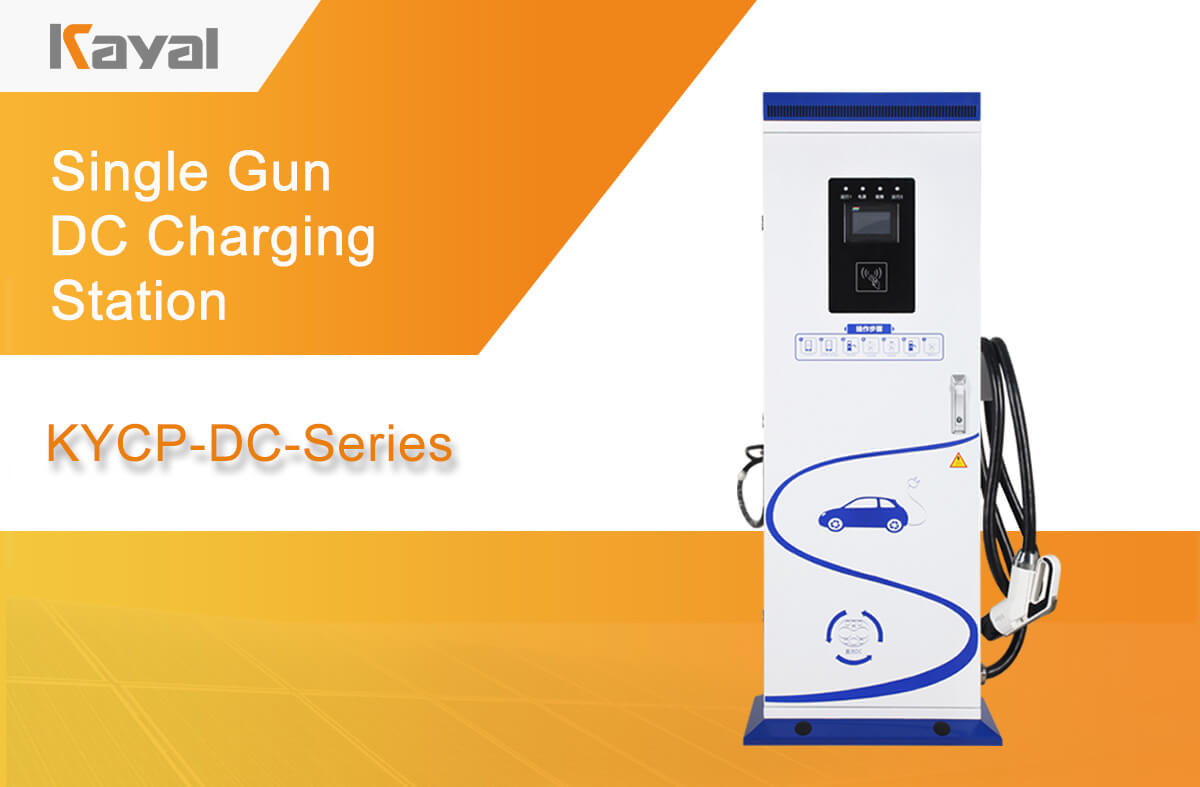

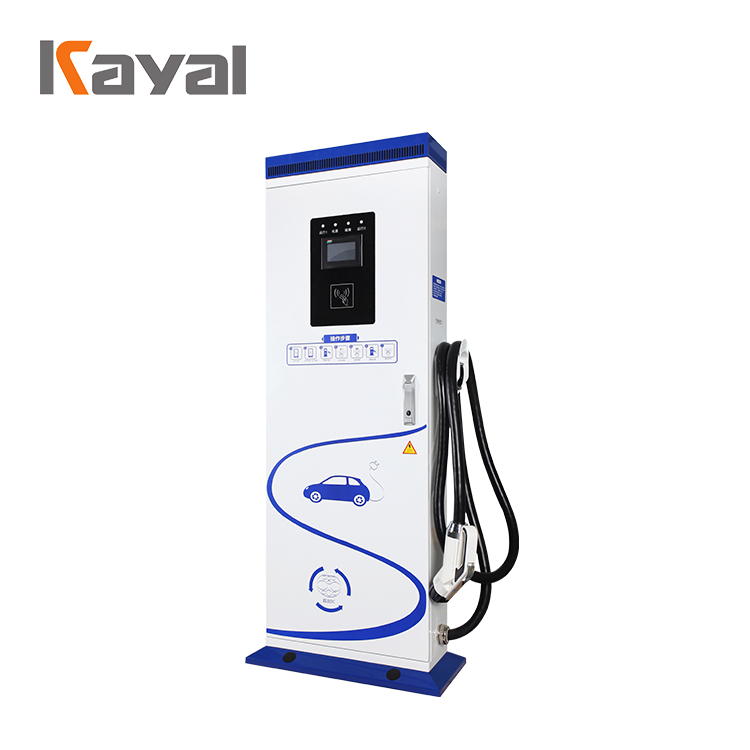

Single Gun DC Electric Vehicle Charging Station
This single gun DC EV charging station provides rapid charging for electric vehicles. It is suitable for public charging stations, commercial fleets, and residential complexes.
Technical Specifications
Overview
Integrated DC Charging Solution
This integrated DC charging pile is designed for versatile use, from urban public charging stations for buses and taxis to logistics fleets and residential parking areas. It features a robust floor-standing design with a high-resolution 4.3-inch touch screen interface. With wide input voltage compatibility and multiple safety protection mechanisms, it offers a reliable and efficient charging experience for various electric vehicle applications.
Technical Specifications
- Rated Power Range
- 120 kW
- Input Voltage
- AC380V±20%
- Efficiency
- 94.5 %
- Power Factor
- 0.99
- Measurement Accuracy
- Level 0.5
Operational Features

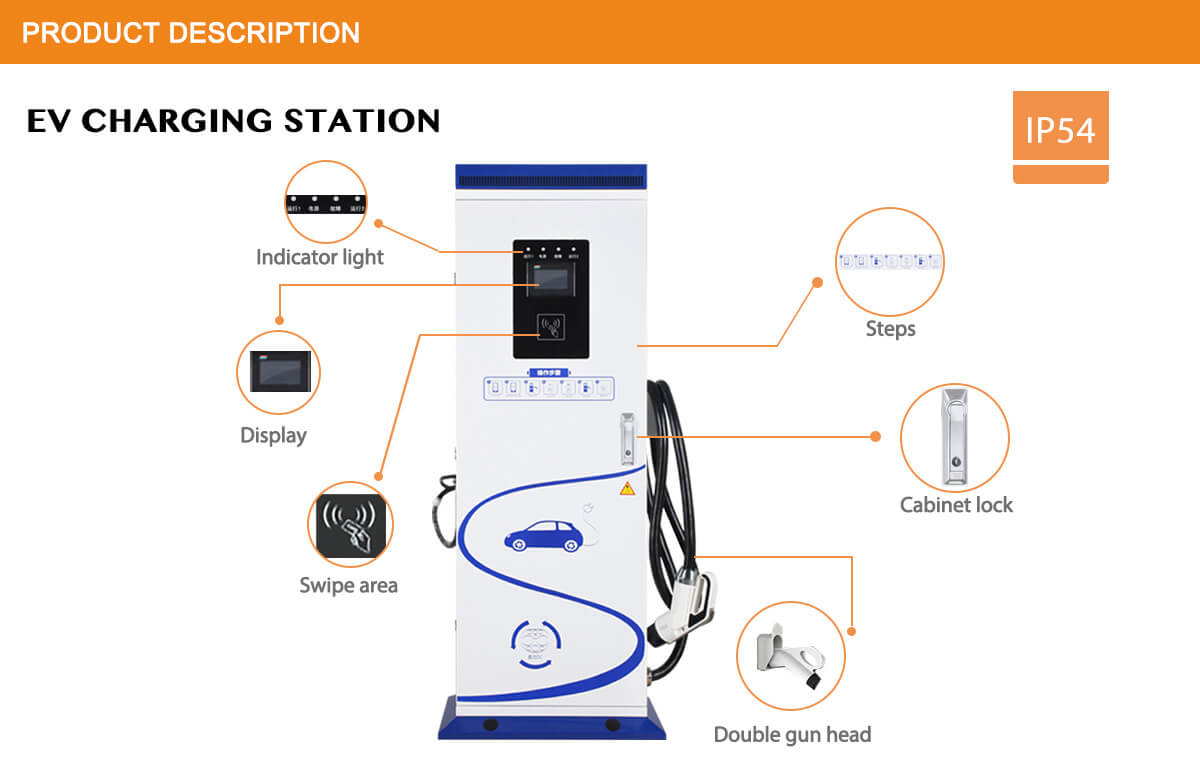

- HMI Display
- 4.3 inch LCD color touch screen
- Charging Modes
- Auto fullFixed powerFixed amountFixed time
- Payment Options
- APP paymentCredit cardScan code
- Communication Interface
- Ethernet, 2G/3G/4G (optional)
Safety & Environment
Safety Functions
- Charge gun temperature detection
- Overvoltage protection
- Undervoltage protection
- Overcurrent protection
- Compliance Standards
- GB/T 20234GB/T 18487GB/T 27930NB/T 33008
