Technical Specifications
Overview
High-Power Dual Port DC Charging Solution

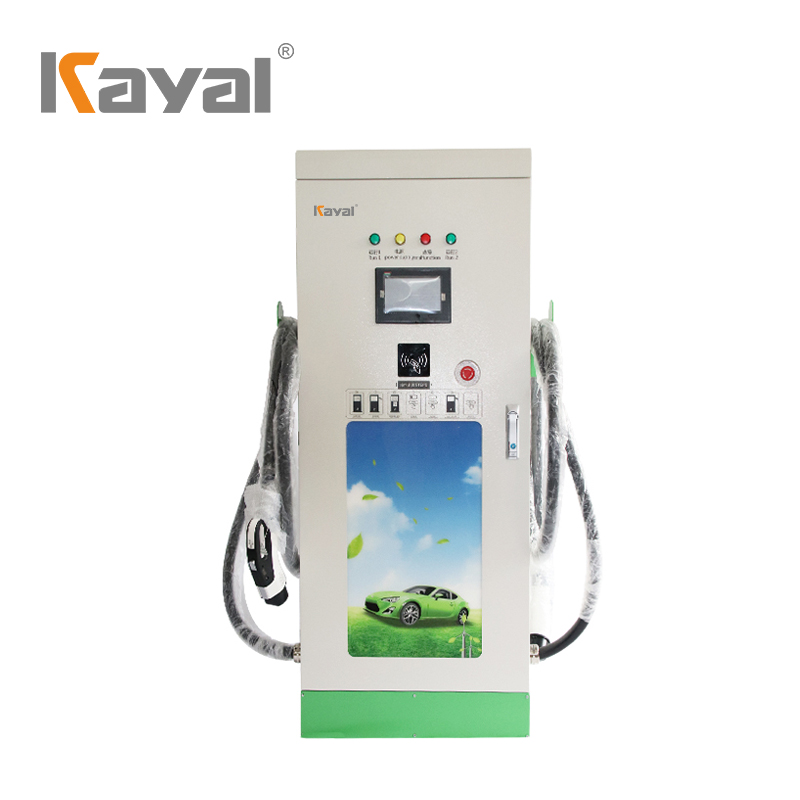

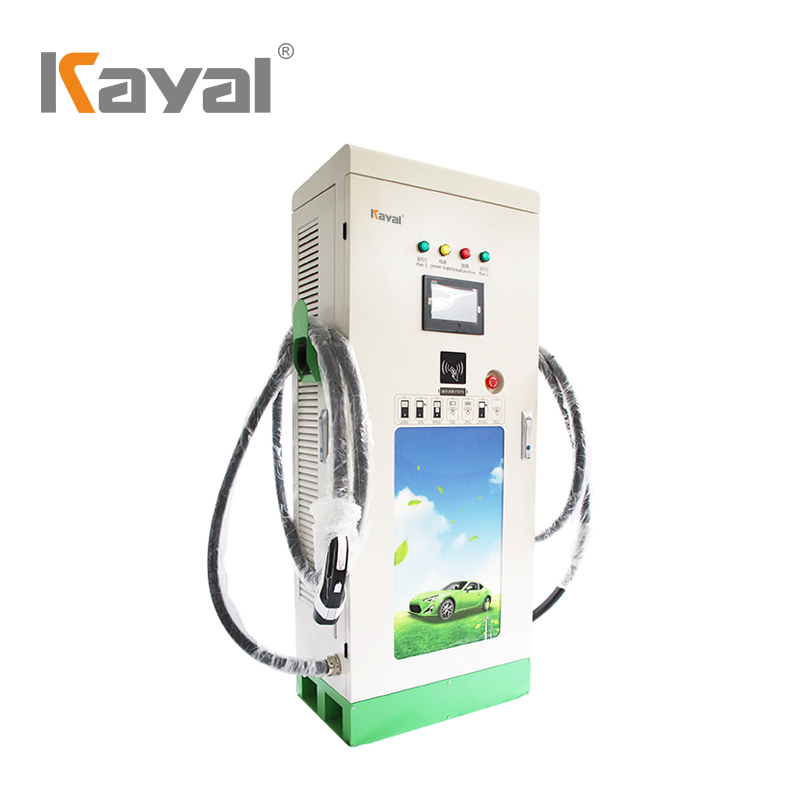

The KYCP-DC series is an integrated DC charging station designed for high-traffic urban public charging, including bus stations, logistics hubs, and highway service areas. Featuring a dual-gun configuration, it allows for simultaneous charging of two electric vehicles to maximize throughput and minimize wait times. This robust, floor-standing unit is built for durability with an IP54/IP55 rating, making it ideal for reliable outdoor performance in various weather conditions.
Key Performance Metrics
Performance Highlights
120 kW
Max Rated Power
94.5 %
Peak Efficiency
0.99
Power Factor
750 V
Max Output Voltage
Electrical Specifications
Output Voltage Range
- 200V-500V
- 200V-750V
- 200V-750V (constant power)
Single Gun Output Current
- 60A
- 0-70A
- 90A
- Input Voltage
- AC380V±20%
- Input Frequency
- 45~65Hz
- Harmonic Content (THD)
- ≤5%

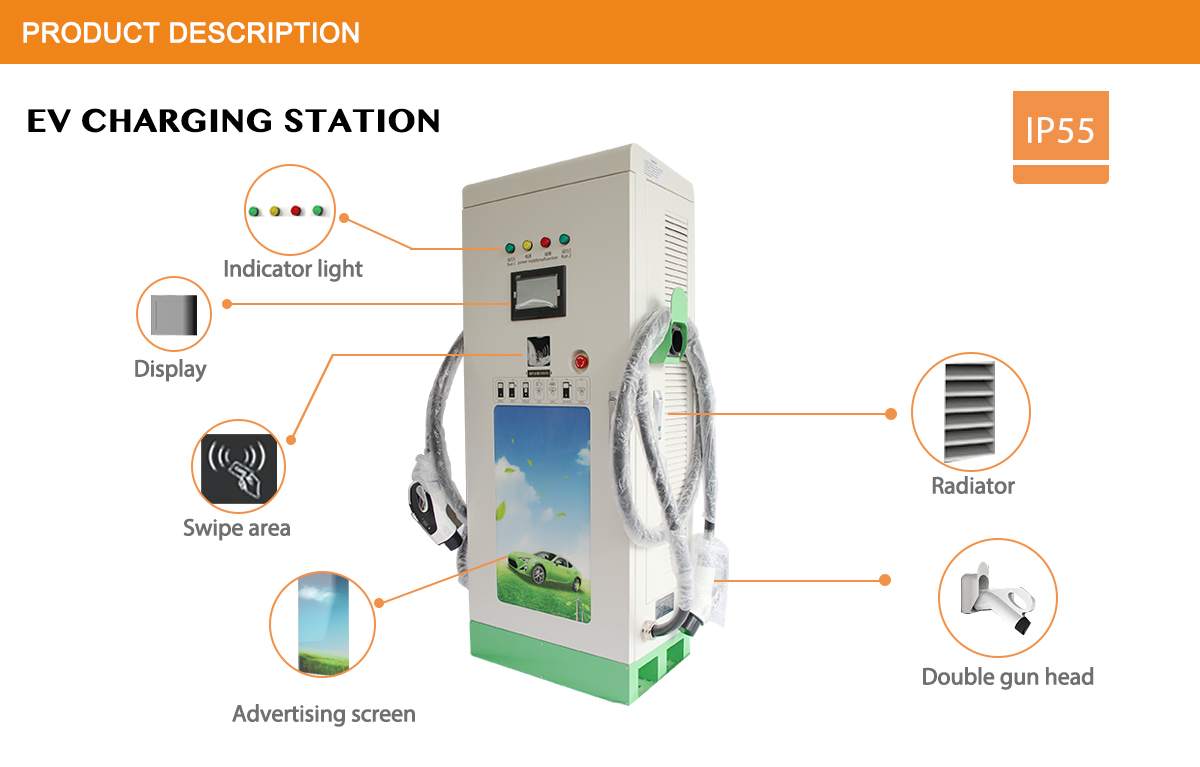

User Interface & Connectivity
- User Interface
- 4.3 inch LCD color display touch screen
- Charging Modes
- Auto FullFixed PowerFixed AmountFixed Time
- Payment Methods
- APPCredit CardScan Code
- Communication
- Ethernet, 2G/3G/4G (Optional)
Safety & Protection
Safety Functions
- Charge gun temperature detection
- Overvoltage protection
- Overcurrent limit protection (≥110%)
- Short-circuit protection
- Emergency stop switch
- Intelligent temperature monitoring with auto cut-off
Executive Standards
GB/T 20234GB/T 18487GB/T 27930NB/T 33008IP54/IP55
Physical Characteristics
- Equipment Size
- 720 x 557 x 1700 mm
- Installation Method
- Floor-standing
- Cable Length
- 4m / 5m
