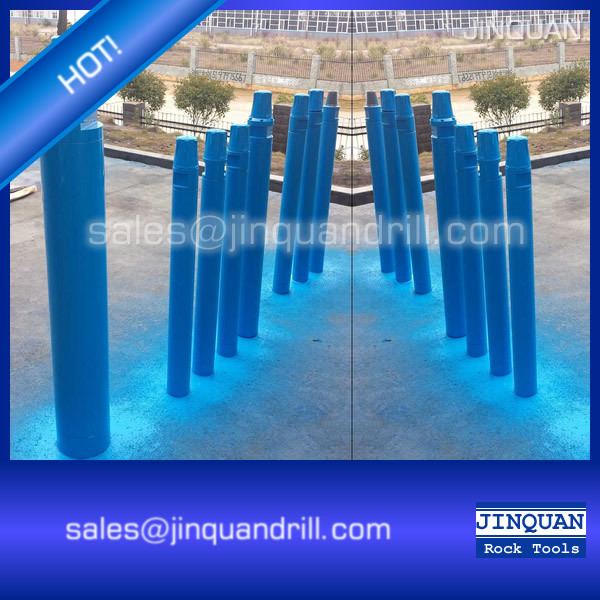

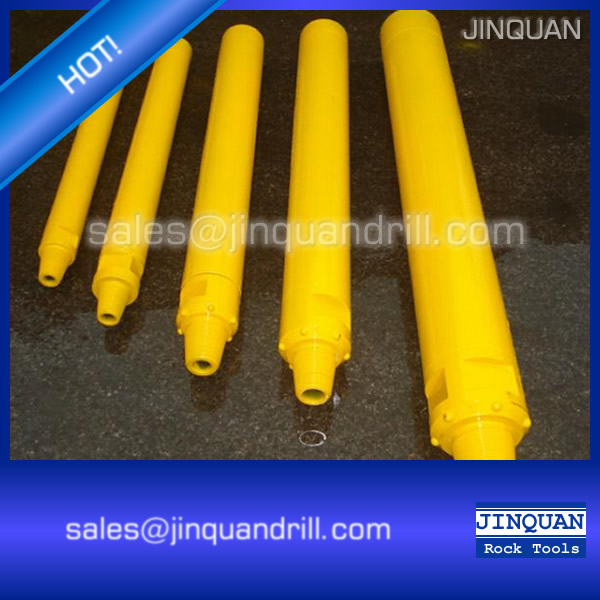

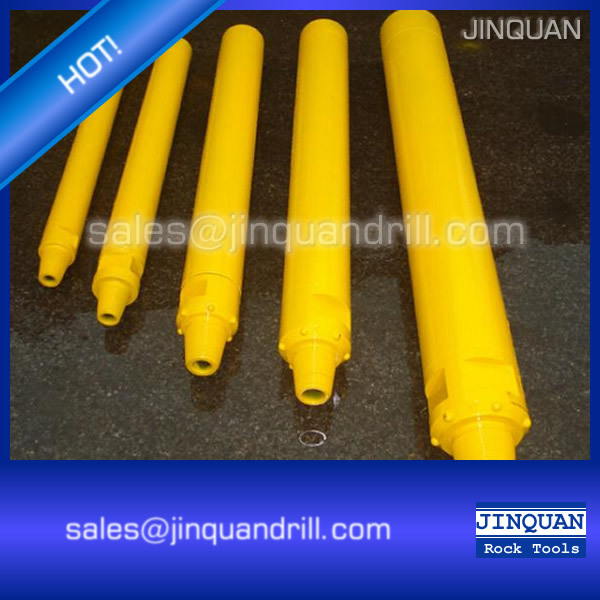

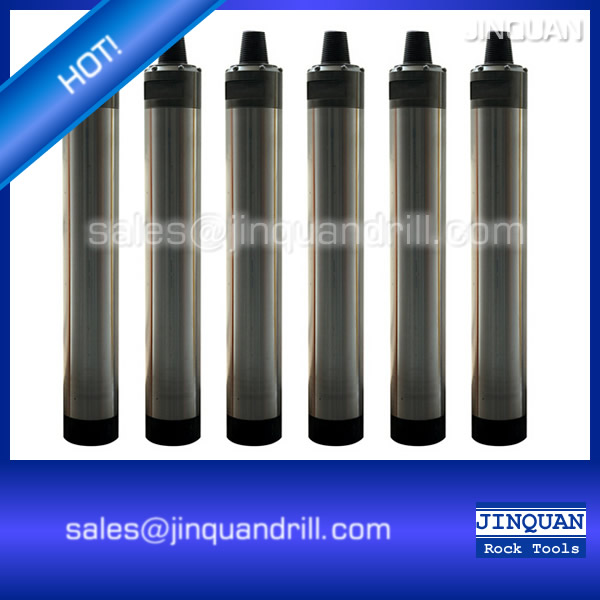

Down The Hole (DTH) Hammer
This down the hole (DTH) hammer is designed for rock drilling applications. It is made from carbon steel and utilizes a forging processing type.
Technical Specifications
Overview
High-Performance DTH Drilling Solutions
These Down The Hole (DTH) hammers are engineered for high-efficiency rock drilling in demanding mining, quarrying, and civil construction environments. Designed without a foot valve, they offer a 15%-30% increase in drilling speed compared to traditional models while significantly reducing energy and oil consumption. Their robust carbon steel construction and forged processing ensure long service life and reliable performance in various rock formations.
Key Performance Metrics
Performance Advantages
30 %
Higher Drilling Speed
10 %
Lower Oil Consumption
Technical Specifications
- Available Sizes
- 3"3.5"4"5"6"8"10"12"14"
- Material
- Carbon Steel
- Processing Type
- Forging
- Machine Type
- Drilling Tool
Compatibility
Supported Shank Styles
- DHD (3.5, 340, 350, 360, 380, 112)
- COP (44, 54, 64, 84)
- QL (40, 50, 60, 80)
- Mission (40, 50, 60, 80)
- SD (4, 5, 6, 8, 12)
- NUMA125
- TD40
- Model Series
- COPDHDMISSIONQLSDCIRBR
Applications & Use Cases
Primary Applications
- Ore Mining
- Quarrying
- Water Well Drilling
- Road & Railway Construction
- Hydroelectric Power Projects
- Civil Construction
Quality & Maintenance
Certification
ISO9001:2008
Maintenance & Reliability
- Simple structure for easy maintenance
- No foot valve fracture risks
- High impact frequency
- Reliable internal parts for extended life
