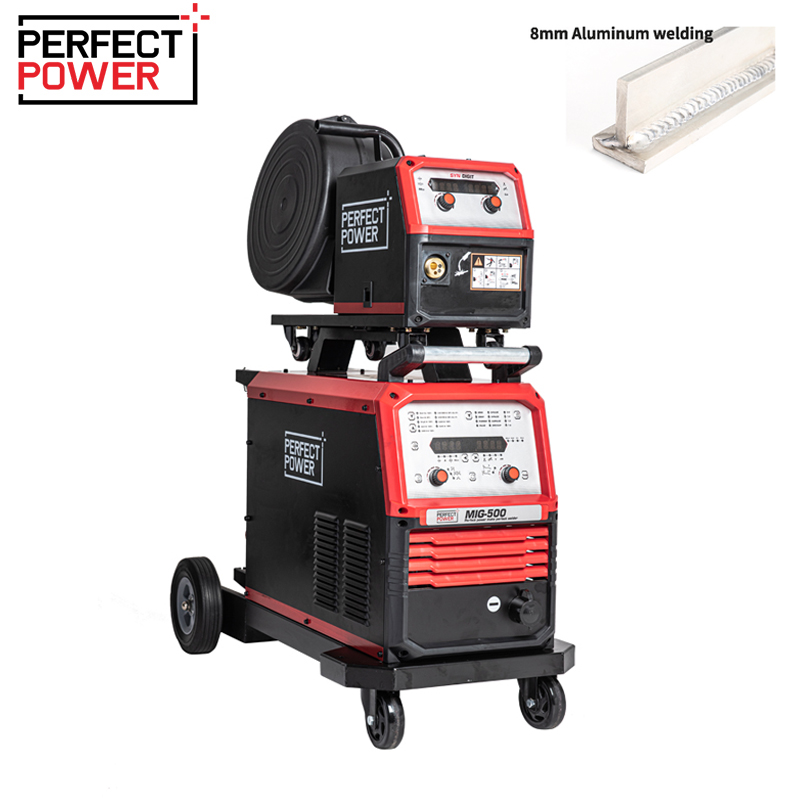

Double-Pulse MIG/MAG Inverter Welding Machine
This digital-controlled double-pulse MIG/MAG inverter welding machine is designed for aluminum and wire welding. It employs GMAW (Gas Metal Arc Welding) technology, making it suitable for a variety of welding applications.
Technical Specifications
Product Overview
Professional Double-Pulse Inverter Welder
This high-performance digital MIG/MAG inverter welding machine is engineered for precision welding tasks, including specialized aluminum applications. Featuring advanced double-pulse technology and a robust integrated wire feeder, it ensures stable wire feeding and superior weld quality with minimal spatter. Designed for industrial and workshop environments, this unit offers high efficiency, energy savings, and a high duty cycle for demanding production schedules.
Performance Metrics
Key Performance Metrics
500 A
Max Output Current
60 %
Rated Duty Cycle
85 %
Efficiency
Technical Specifications
Electrical Requirements
| Parameter | Value |
|---|---|
| Input Voltage | AC 380V |
| Rated Input Capacity | 24.4 KVA |
| Rated Input Current | 37 A |
| No-load Voltage | 65 V |
| Power Factor | 0.93 |
Welding Capabilities
- MIG/MAG Welding
- Double-Pulse Mode
- Single-Pulse Mode
- Flux-cored Welding
- Aluminum Welding (suitable for 0.45mm thin plates)
- Compatible Wire Diameter
- 0.8 - 1.6 mm
Physical Characteristics
Dimensions and Weight
| Attribute | Specification |
|---|---|
| Weight | 53 kg |
| Dimensions | 99 x 48 x 71 cm |
Standards and Compliance
Protection Class
IP21
- Insulation Class
- F
