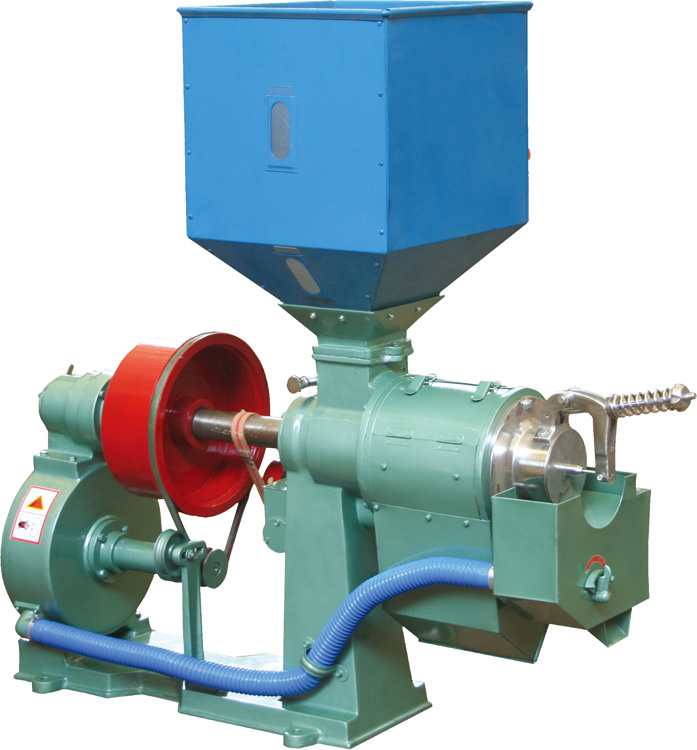

Double Pipes Jet Rice Mill
The double pipes jet rice mill is engineered for efficient rice processing. It incorporates a double pipes jet system for effective separation of rice and bran.
Technical Specifications
Overview
High-Efficiency Jet Rice Milling
The N Series Jet Rice Mill is a professional-grade solution designed for consistent and efficient rice processing. Featuring a robust construction and advanced double-pipe jet system, this machine ensures effective separation of rice and bran for high-quality output. Its adjustable milling settings and durable components make it a versatile choice for various processing environments, from small-scale operations to larger industrial facilities.
Performance Metrics
Productivity Highlights
1,300 kg/h
Max Productivity
18.5 kW
Max Power
Technical Specifications
| Model | Power (kW) | Productivity (kg/h) | Main Shaft (r/m) | Net Weight (kg) |
|---|---|---|---|---|
| N50 | 5.5-11 | 500-600 | 850-950 | 140 |
| N70 | 7.5-13 | 700-800 | 750-850 | 185 |
| N120 | 15-18.5 | 1200-1300 | 750-850 | 280 |
Features
Key Capabilities
- Double pipes jet system for superior bran separation
- Adjustable milling pressure and output quality
- Robust construction for long service life
- Easy-access components for cleaning and maintenance
- Belt-driven flywheel for consistent power delivery
Compliance
- Certifications
- ISO 9001-2008UKAS
