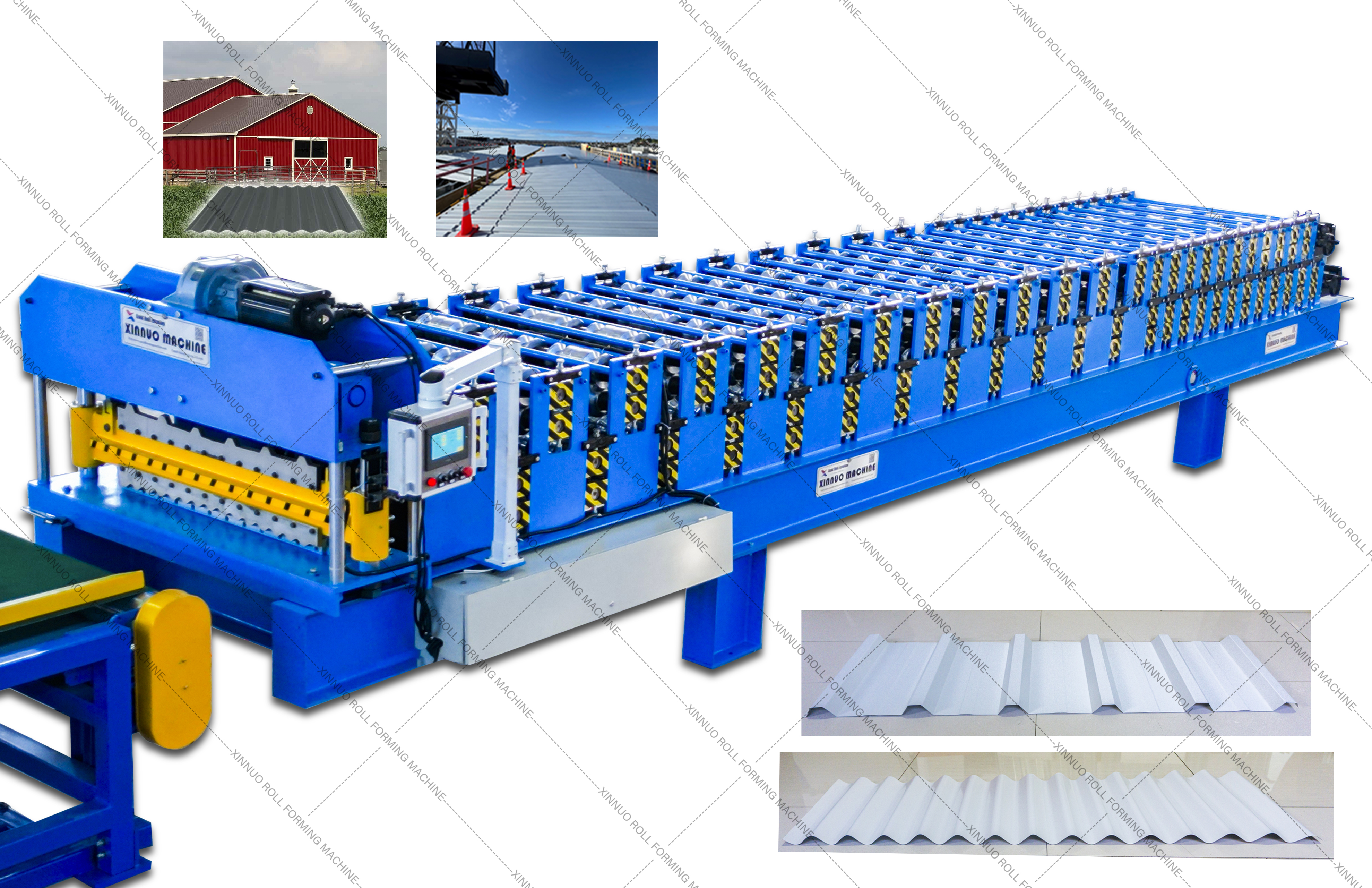

Double Layer Roof Panel Forming Machine
This double layer roof panel forming machine produces roof panels with two different profiles in a single pass. The rolling mill is engineered for precision, durability and consistent quality.
Technical Specifications
Overview
High-Efficiency Double Layer Roll Forming
This double-decker roll forming machine is engineered to produce two distinct roof panel profiles within a single compact unit, significantly saving floor space and increasing production versatility. It processes color steel, galvanized sheets, and aluminum coils with precision, featuring a robust frame and high-grade forged steel rollers for long-term durability. The system is fully automated via a PLC control cabinet, supporting multiple languages and ensuring consistent output for high-volume B2B manufacturing needs.
Performance Metrics
Key Performance Metrics
12 m/min
Max Production Speed
5 T
Uncoiler Capacity
0.8 mm
Max Material Thickness
4 kW
Hydraulic Power
Technical Specifications
- Compatible Materials
- Color Steel PlateGalvanized SheetAluminum Coils
- Feeding Material Width
- 914-1250mm
- Material Thickness Range
- 0.3-0.8mm
- Roller Stations
- 11-18 rows (customizable)

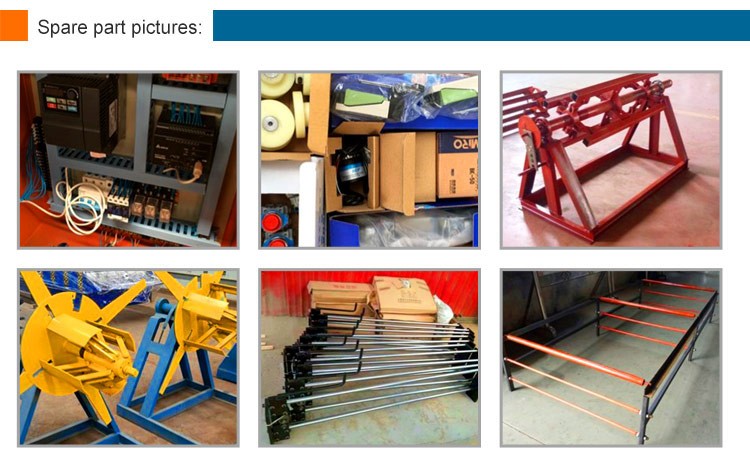

Component Details
- Roller Material
- High-grade No.45 forged steel
- Shaft Diameter
- 80 mm
- Cutting Blade Material
- Cr12Mov with quenched treatment
Control System
Operation Modes
AutomaticManual
System Languages
- English
- Chinese
- Spanish
- Russian
Hydraulic System
Hydraulic Parameters
| Parameter | Value |
|---|---|
| Working Pressure | 12-16Mpa (Adjustable) |
| Oil Type | 46# Hydraulic Oil |
| Solenoid Valve | 1 Group |
Uncoiler Specifications
Manual Uncoiler Data
- Inner Diameter: 500-508mm
- Max Outer Diameter: 1250mm
- Max Coil Width: 1300mm
- Main Motor: 5.5KW AC
- Adjustable Speed: 0-15m/min

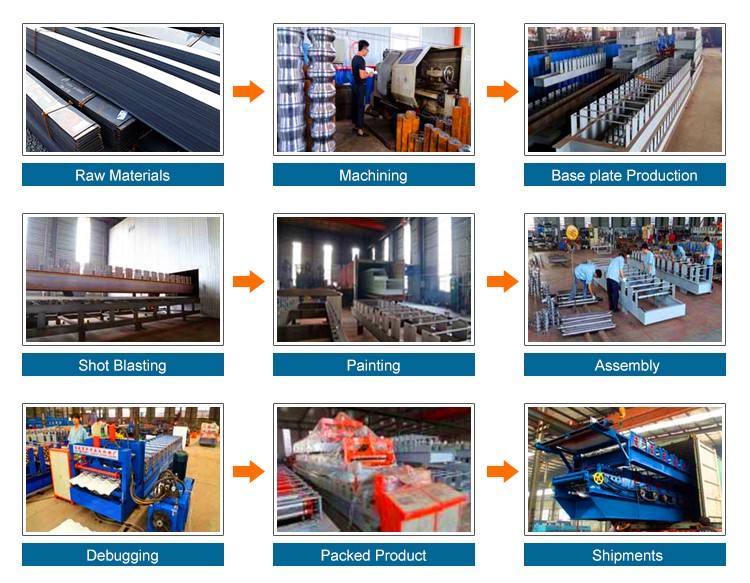

Manufacturing Process
Quality Assurance Process
- Raw Material Selection
- Precision Machining
- Base Plate Production
- Shot Blasting & Painting
- Professional Assembly
- Performance Debugging
