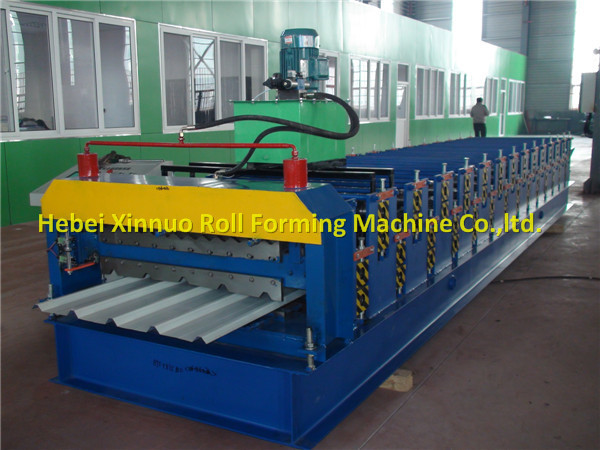

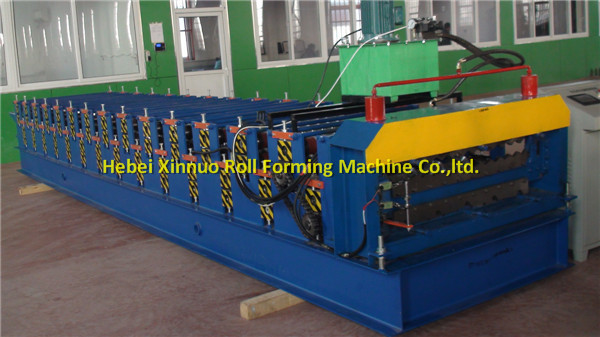

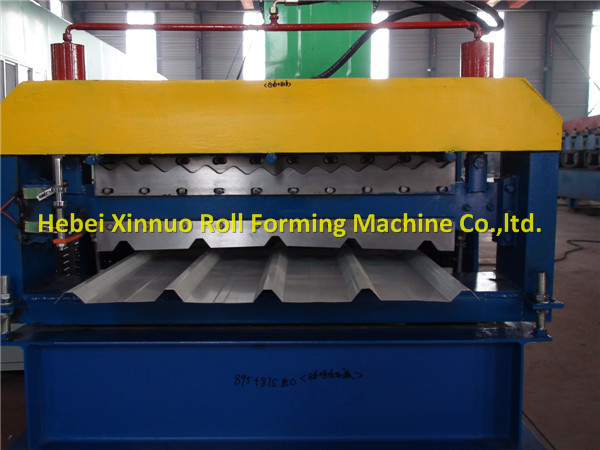

Double Layer Roll Forming Machine
This double layer roll forming machine produces metal profiles. Its dual-layer configuration allows for efficient manufacturing of roofing sheets and wall panels.
Technical Specifications
Overview
High-Efficiency Double Layer Production

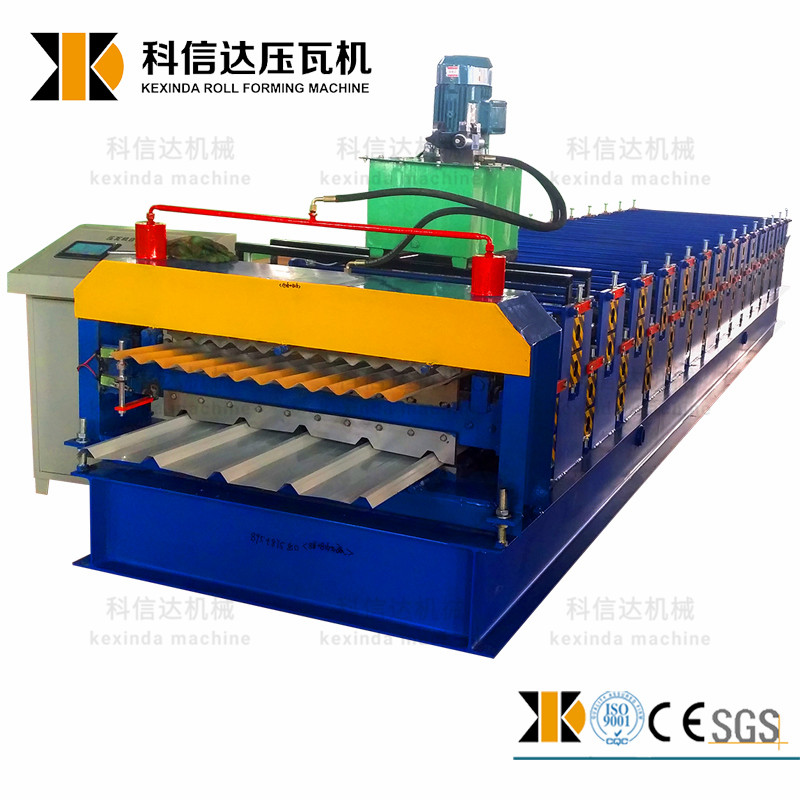

The 836+836 double layer roll forming machine is an innovative solution designed to manufacture two different corrugated sheet profiles within a single compact footprint. This space-saving design is ideal for operations with limited site area, offering a perfectly integrated structure that produces high-quality roofing and wall panels. By combining two machines into one, it significantly reduces equipment costs and enhances production flexibility for B2B manufacturers.
Performance Metrics
Key Performance Metrics
12 m/min
Maximum Speed
5 kW
Main Power
4 kW
Pump Power
Technical Specifications

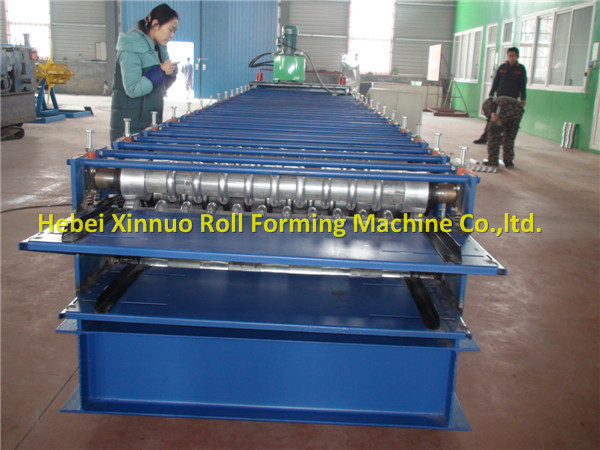

Roller Construction
- Material: 45# steel
- CNC-machined precision
- Heat treatment and buffing
- Surface electroplating: 0.05mm Chromium
- Control System
- Automatic PLC frequency control with text screen
- Roller Steps
- 12 to 18 rows
- Diameter of Roller
- 80 mm
Material Compatibility
- Feeding Width
- 1250 mm
- Effective Width
- 925 / 1080mm (Tolerance ±1/100)
- Material Thickness Range
- 0.35 - 0.8mm
Physical Dimensions
- Main Roll Former Dimensions
- 8600mm × 1300mm × 1450mm
Capabilities
Operational Advantages
- Space-saving double layer design
- Easy operation for site-limited areas
- Reasonable and robust structure
- Simultaneous profile processing capability
- Supported Profiles

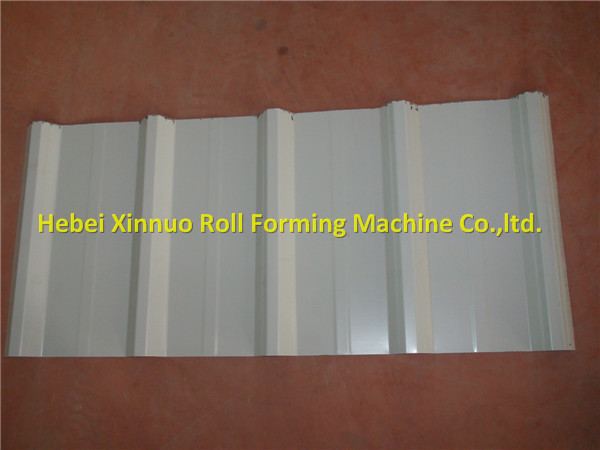

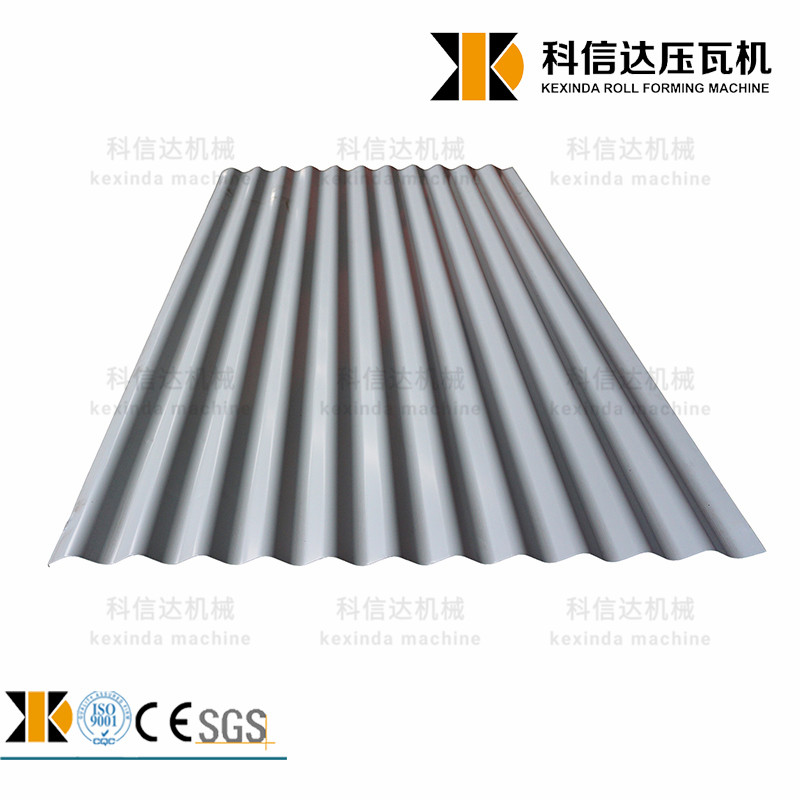

- Corrugated SheetRoofing PanelWall PanelDouble Layer Tile
Certifications
Compliance & Standards
ISO 9001CESGSCQC
