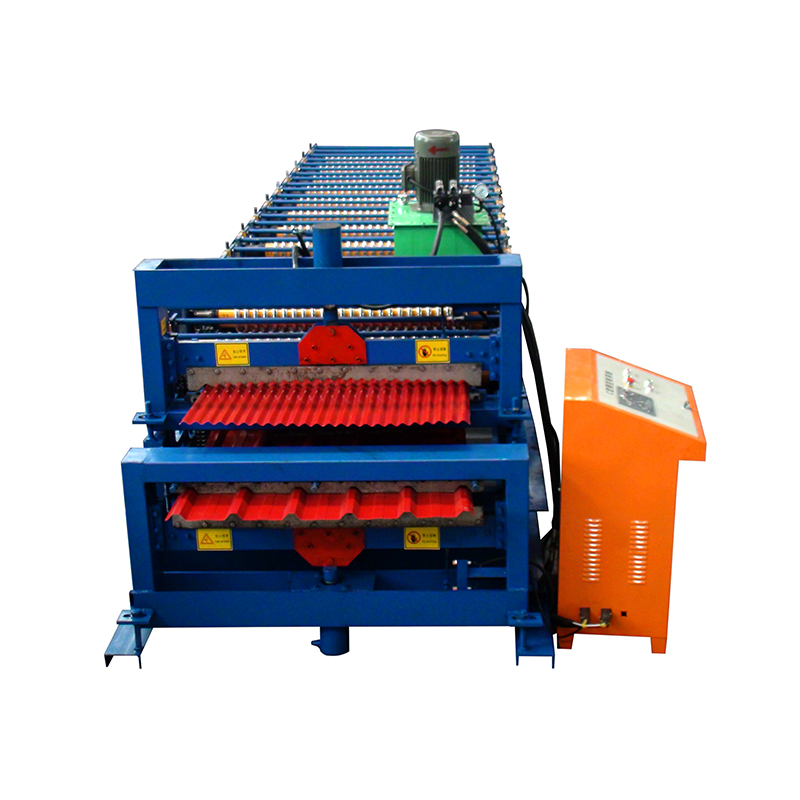

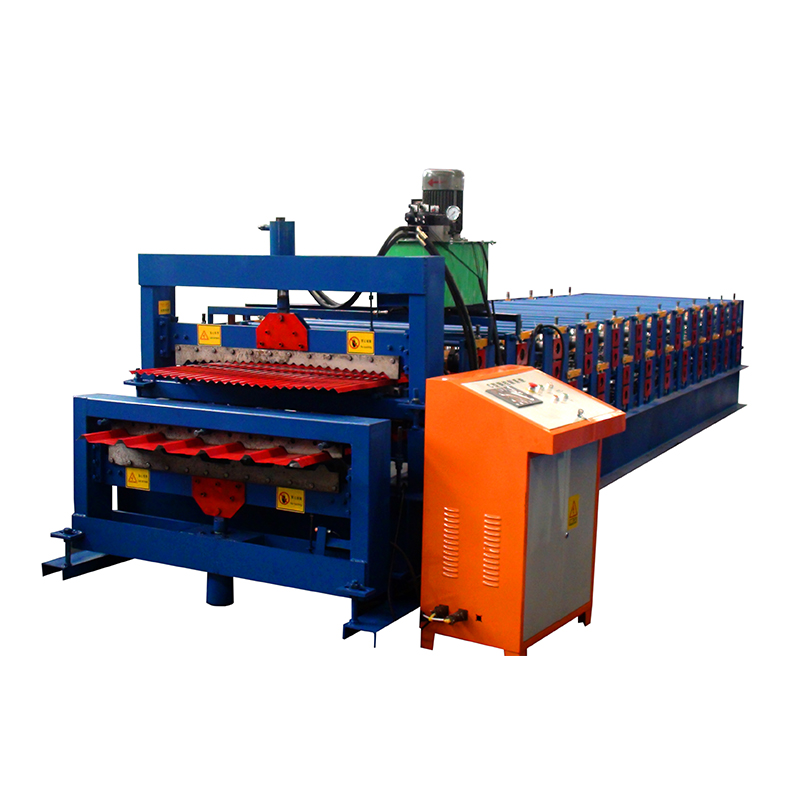

Double Layer Corrugated & IBR Roofing Sheet Roll Forming Machine
This machine produces double layer corrugated metal roofing sheets and IBR roofing panels. It shapes metal sheets into the desired profiles using a series of rollers.
Technical Specifications
Product Overview
High-Efficiency Double Layer Roll Forming
This industrial-grade machine is designed for the high-volume production of both corrugated metal roofing sheets and IBR (Inverted Box Rib) panels. Its unique double-layer configuration allows operators to switch between two different profiles or run them simultaneously, significantly increasing manufacturing versatility and space efficiency. Engineered for durability, the system features a robust steel frame and precision-engineered rollers to ensure consistent, high-quality output for various construction applications.
Technical Performance
Performance Metrics
8 m/min
Min Productivity
12 m/min
Max Productivity
5 T
Uncoiler Capacity
Material Specifications
- Compatible Materials
- Color Steel PlateGalvanized SheetAluminum Coils
- Feeding Material Width
- 914-1250mm
- Material Thickness Range
- 0.3-0.8mm

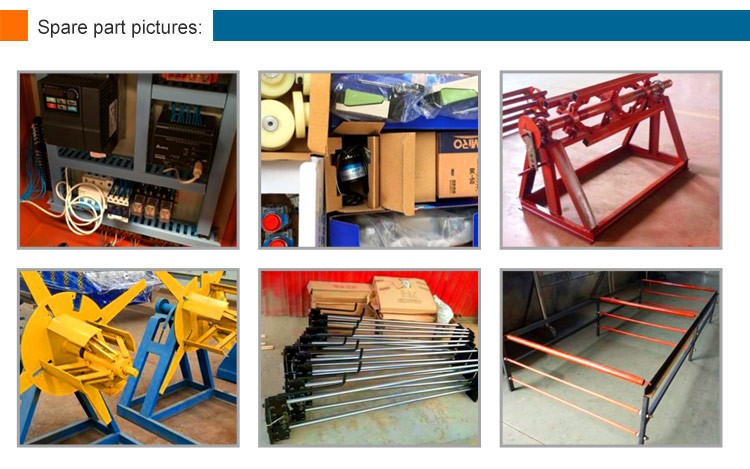

System Components

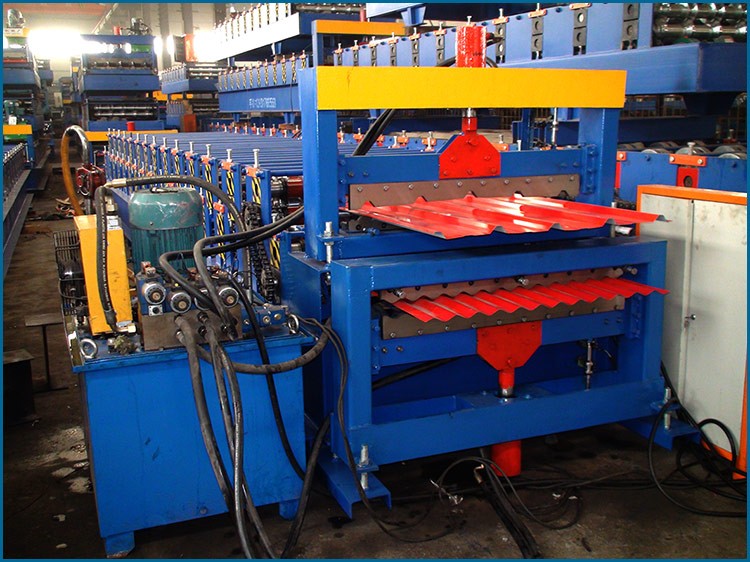

Roller System
- Material: High grade No. 45 forged steel
- Stations: 11-18 rows (customizable)
- Shaft Diameter: 70-80mm
Cutting System
- Blade Material: Cr12Mov with quenched treatment
- Drive: Hydraulic
- Control: PLC integrated
Control & Automation

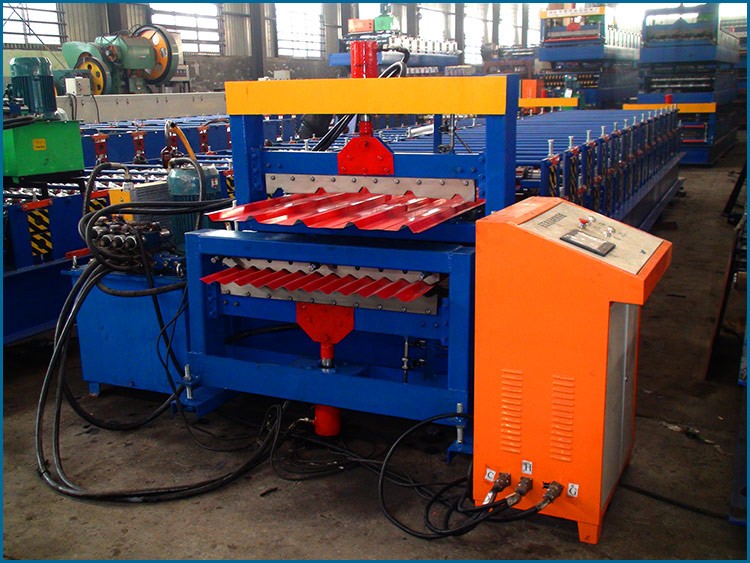

Computer Control Cabinet
- Programmable profile length and quantity
- Modes: Automatic and Manual
- Supported Languages: English, Chinese, Spanish, Russian
Hydraulic System
| Parameter | Specification |
|---|---|
| Power | 4kW |
| Oil Type | 46# Hydraulic Oil |
| Working Pressure | 12-16Mpa (Adjustable) |
| Solenoid Valve | 1 Group |
Product Certifications
Compliance & Quality
CE CertifiedISO 9001IAFCNAS
Service & Warranty
- Warranty
- 1 Year
