Direct Pipe Laying Machine for Trenchless Construction
Direct pipe laying machines utilize a trenchless construction method for installing pipelines. This method allows for simultaneous excavation and pipeline laying.
Technical Specifications
Overview
Advanced Trenchless Pipeline Installation

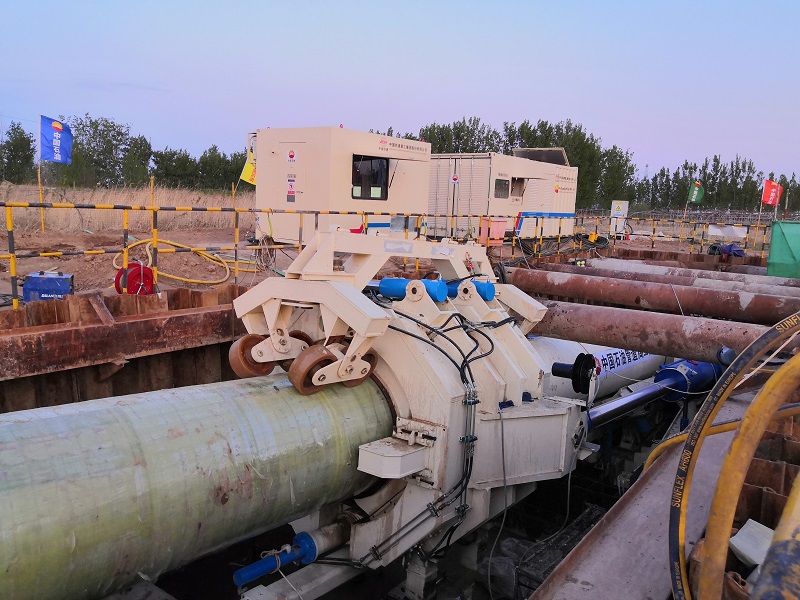

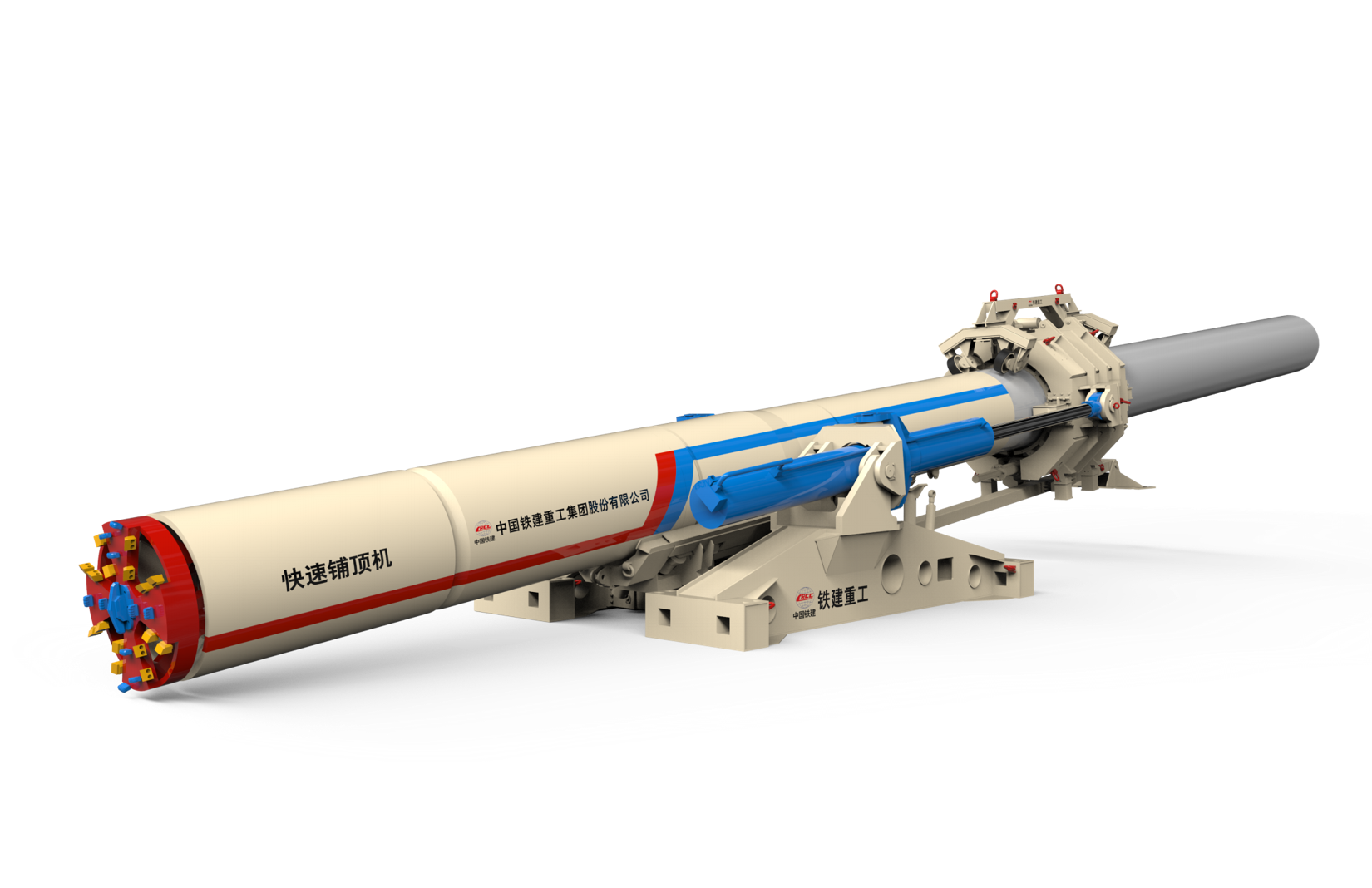

This direct pipe laying machine represents a new-type trenchless construction method where excavation and pipeline laying are performed simultaneously. It is specifically designed for high-efficiency projects involving small diameter water diversion, drainage, and oil pipelines. By combining a tunnel boring machine with a powerful pipe thruster, it eliminates the need for pipe installation during the drive and removes the requirement for reception shafts.
Core Features
Key Benefits
- Simultaneous excavation and pipeline laying
- Continuous tunneling up to 1000m in a single drive
- Slurry balance mode for minimal ground settlement
- High-precision guidance system for accurate breakthrough

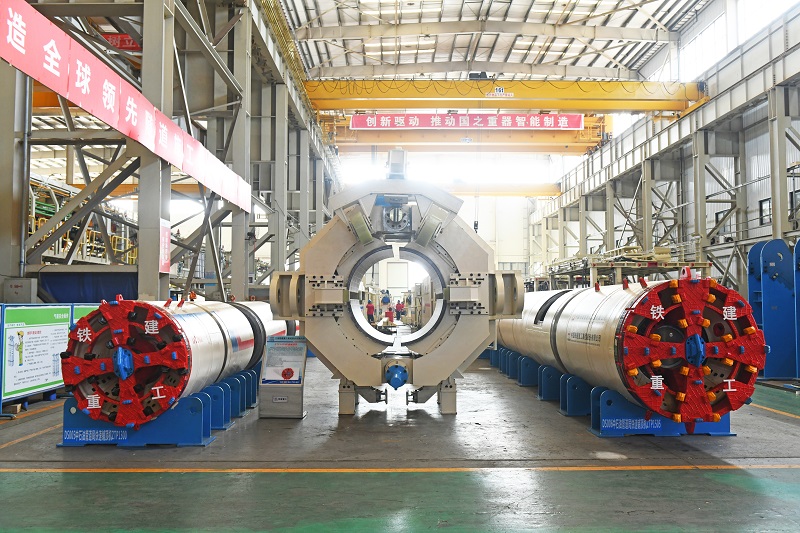

- Adaptable cutterheads for complicated geological conditions
- Reduced construction risk with machine retrieval capabilities
Performance Metrics
Performance Highlights
100 m
Daily Advance Rate
5 m/min
Max Advance Rate
1,000 m
Max One-time Tunneling
Technical Specifications
Machine Specifications by Model
| Parameter | Variant A | Variant B |
|---|---|---|
| Diameter | 1,300 mm | 1,505 mm |
| Weight | 200 t | 270 t |
| Maximum Thrust | 5,000 kN | 8,000 kN |
| Installed Power | 770 kW | 820 kW |
| Shield + Back-up Length | 14 m | 14 m |
Operational Parameters
- Construction Angle Range
- -15° to 15°
- Field Performance
- Successfully tunneled 200m within 2 hours without failure
Applications
- Typical Applications
- Oil PipelinesWater Diversion TunnelsWater Drainage TunnelsSmall Diameter Tunnelling
