Pipe Jacking Machines
Source industrial-grade Pipe Jacking Machines from vetted manufacturers and suppliers. Designed for heavy equipment distributors, construction procurement managers, and specialized importers, our network offers direct access to robust trenchless technology, OEM customization, and reliable bulk purchasing options.
Sourcing pipe jacking machines requires navigating high capital costs, complex hydraulic systems, and stringent safety standards. When importing trenchless equipment, the primary challenge isn't just finding a supplier—it's verifying their heavy engineering capability, quality control protocols, and ability to handle specialized machinery logistics.
Defining Specifications for Trenchless Applications
The geological conditions of your target market dictate the required cutter head, stabilization method, and jacking force. Specifying the wrong system for the expected soil profile leads to severe project delays and equipment damage.
| System Type | Ideal Soil Conditions | Key Advantage |
|---|---|---|

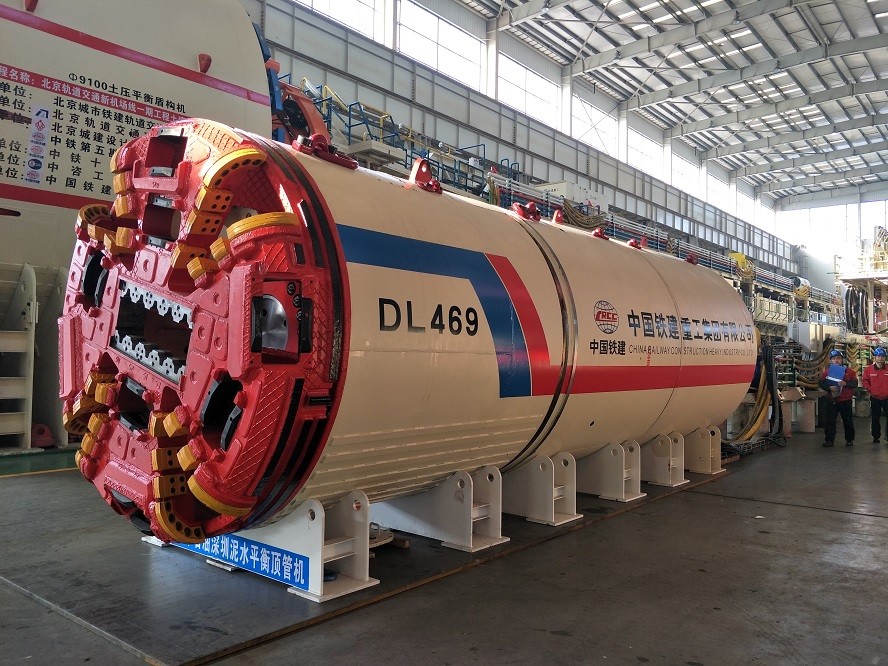

| Slurry Shield | High groundwater, sand, gravel | Effectively counterbalances hydrostatic pressure |
| Earth Pressure Balance (EPB) | Silt, clay, mixed cohesive soils | Cost-effective and eliminates slurry separation plants |
| Hard Rock / TBM | Bedrock, boulders, high-strength rock | Utilizes disc cutters for high compressive strength materials |
Beyond the cutter head, buyers must specify the main jacking force (measured in tons), the cutter head torque (kN.m), and the compatible pipe diameter ranges. Ensure the thrust ring and jacking frame are engineered to match the compressive strength of your intended pipe material, whether reinforced concrete, steel, or fiberglass.
Evaluating Manufacturer Capabilities
Pipe jacking equipment undergoes immense mechanical stress. A manufacturer's facility must demonstrate advanced heavy fabrication capabilities, precision CNC machining for the main bearing housing, and rigorous hydraulic testing.
Critical Factory Verification Points
- Ultrasonic and X-ray non-destructive testing (NDT) of main shield welds
- Hydraulic system pressure holding tests at maximum rated load
- Verification of tier-1 component sourcing (e.g., main bearings, hydraulic pumps)
- Full simulation testing of the PLC control cabin before shipment
Because of the extreme capital risk, conducting comprehensive Factory Audits is non-negotiable. You must ensure the facility has the actual heavy-lifting capacity and testing infrastructure to validate the machine's performance before it leaves the factory floor.
Protect your capital investment. Let our engineers verify factory capabilities before you commit.
Talk to our teamCustomization and Control Systems
Importers and distributors often require modifications to fit regional power standards (e.g., 60Hz vs 50Hz), specific pipe diameters, or localized operator interfaces. Partnering for OEM/ODM Services allows you to specify custom jacking stroke lengths, integrate preferred international hydraulic brands for easier local servicing, or localize the PLC software interface for your regional operators.
Procurement Realities: Pricing, Lead Times, and Freight
Heavy machinery sourcing operates on project-based timelines. Pricing is heavily influenced by the diameter of the machine, the origin of the main bearing, and the complexity of the control systems.
Moving equipment of this scale requires specialized Shipping & Freight coordination. The main shield, jacking cylinders, and control cabins often exceed standard container dimensions, necessitating flat rack containers, open-top containers, or break bulk shipping arrangements.
Need exact lead times and landed freight estimates for your next trenchless project?
Get a free consultationSourcing pipe jacking machines is an exercise in risk management and technical precision. Success depends on aligning strict geological requirements with verified manufacturing capabilities and flawless logistics execution.
