Technical Specifications
Overview
Precision Weighing Solution

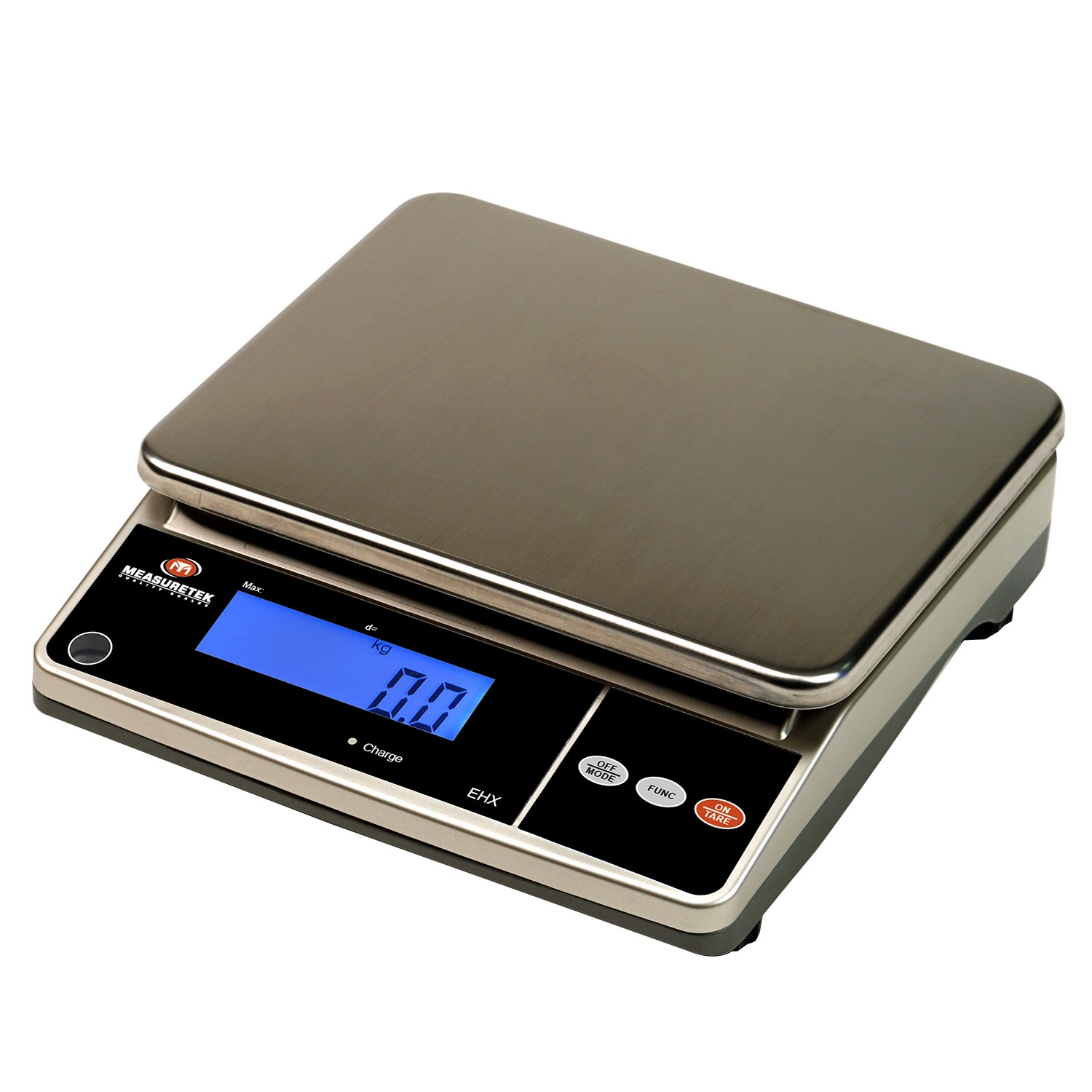

This digital weighing scale is designed for versatile industrial and commercial applications, ranging from warehouse inventory management to retail store use. It features a durable construction with a rugged ABS plastic housing and a large, easy-to-clean stainless steel weighing platform. With high-resolution load cell technology and an easy-to-read backlit LCD display, this scale ensures accurate and reliable measurements for various weighing tasks.
- Suitable Applications
- WarehouseRetail ShopsIndustrial WeighingCommercial Use
Technical Specifications
Key Performance Metrics
200,000 1/n
Resolution
18.5 mm
Display Digit Height
40 °C
Max Operating Temp
Power Requirements
- 12V 500mA power adapter
- 6V 4Ah lead-acid rechargeable battery
Connectivity
RS232 Serial Port
- Certifications
- CEWEEEUL Approved Adapter
Construction
Build Materials
- Rugged ABS plastic housing

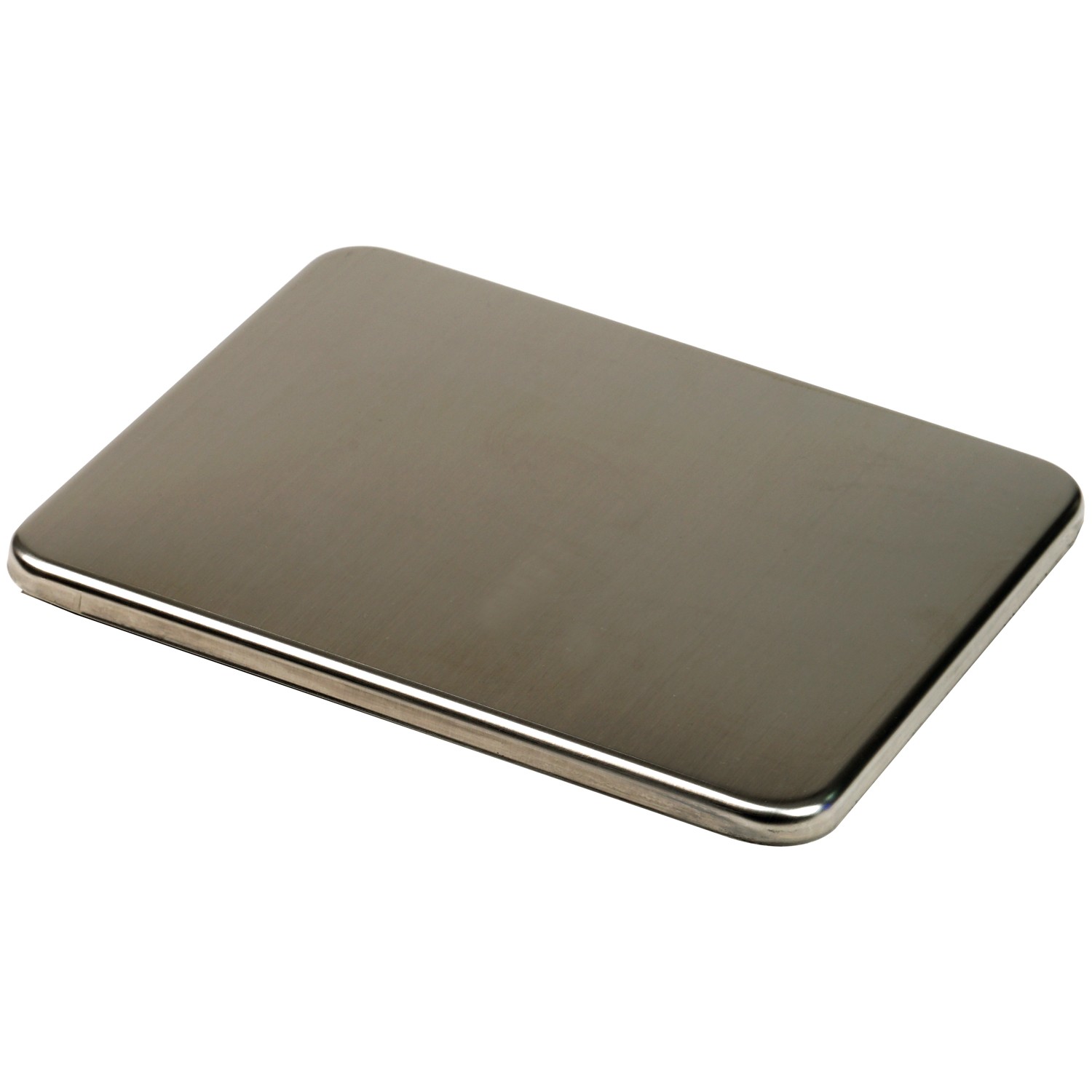

- Stainless steel weighing platform
- Platform Dimensions
- 285mm (W) x 241.3mm (L)
- Stability Features
- Yes
Functions
Operation Modes
- Weighing
- Check weighing
- Parts counting
- System Alerts
- Overload indicationLow battery indication
Model Comparison
Model Specifications
| Model | Capacity |
|---|---|
| EHX-6 | 6kg x 0.2g |
| EHX-15 | 15kg x 0.5g |
| EHX-30 | 30kg x 1g |
| EHX-10H | 10kg x 0.1g |
| EHX-20H | 20kg x 0.1g |
