Technical Specifications
Overview
Precision Weighing Solution

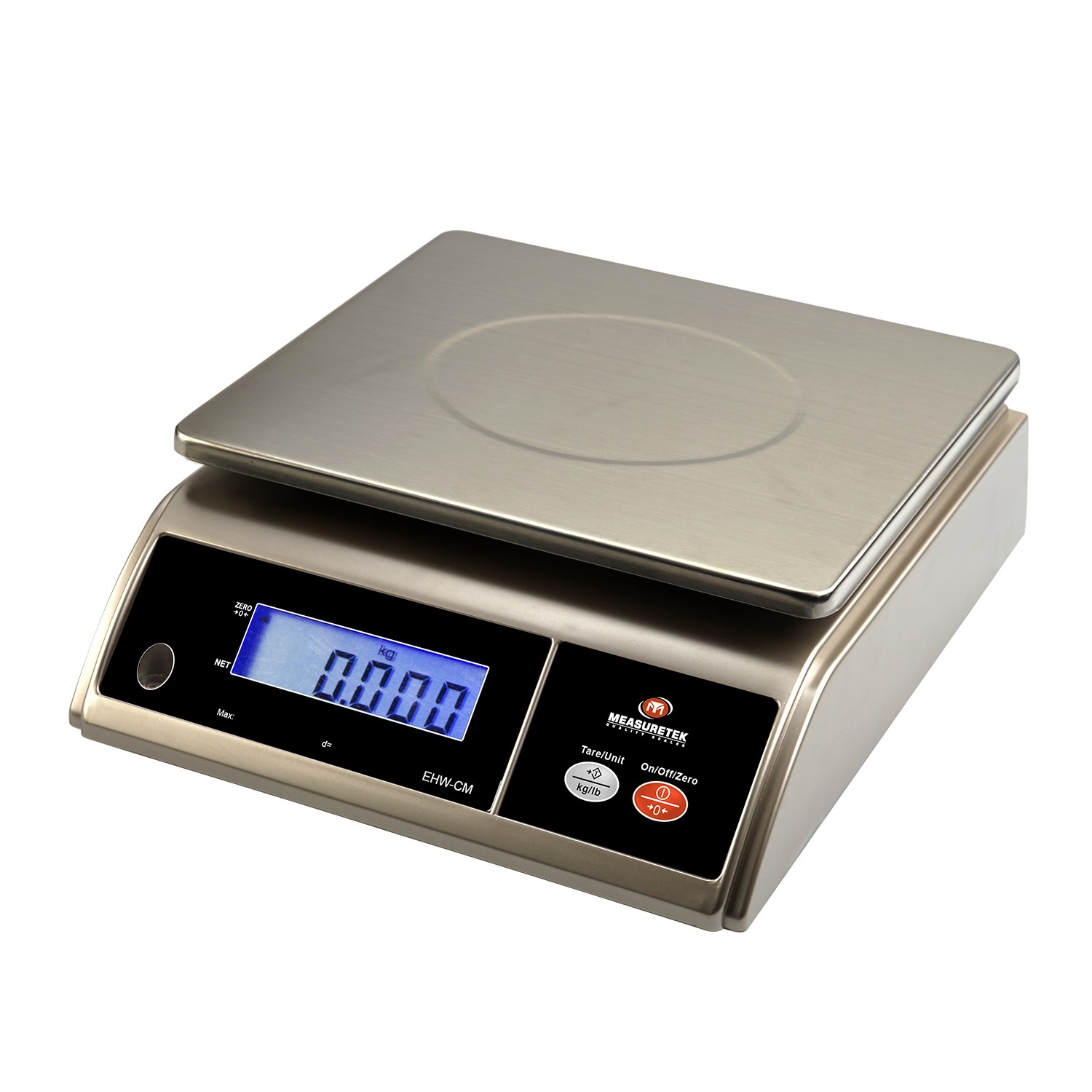

This digital weighing scale is engineered for versatility in industrial, commercial, and retail environments such as warehouses and shops. It features a durable construction with an ABS plastic housing and a removable stainless steel platter for easy maintenance. With a high-resolution load cell and a clear backlit FSTN LCD display, it ensures accurate measurements and readability from any angle.
Performance
- System Resolution
- 1/7,500
- Supported Units
- kglbgozlb:oz
- Operating Temperature
- -10°C to 40°C (14°F to 104°F)
Model Variants
Model Specifications
| Model | Capacity |
|---|---|
| EHW-CM-3 | 3kg x 0.5g / 6lb x 0.001lb |
| EHW-CM-6 | 6kg x 1g / 12lb x 0.002lb |
| EHW-CM-15 | 15kg x 2g / 30lb x 0.005lb |
| EHW-CM-20 | 20kg x 10g / 40lb x 0.01lb |
Hardware
Power Supply
- 9VDC 600mA adaptor
- 4x AA batteries
- Display
- 5.5 digits 0.65" high FSTN LCD with backlight
- Platform Size
- 245mm x 215mm (9.65" x 8.46")
Compliance & Features
Approvals
CEWEEEULBSVI Energy
Key Functions
- Weighing
- One-step successive Tare
- Unit switching
