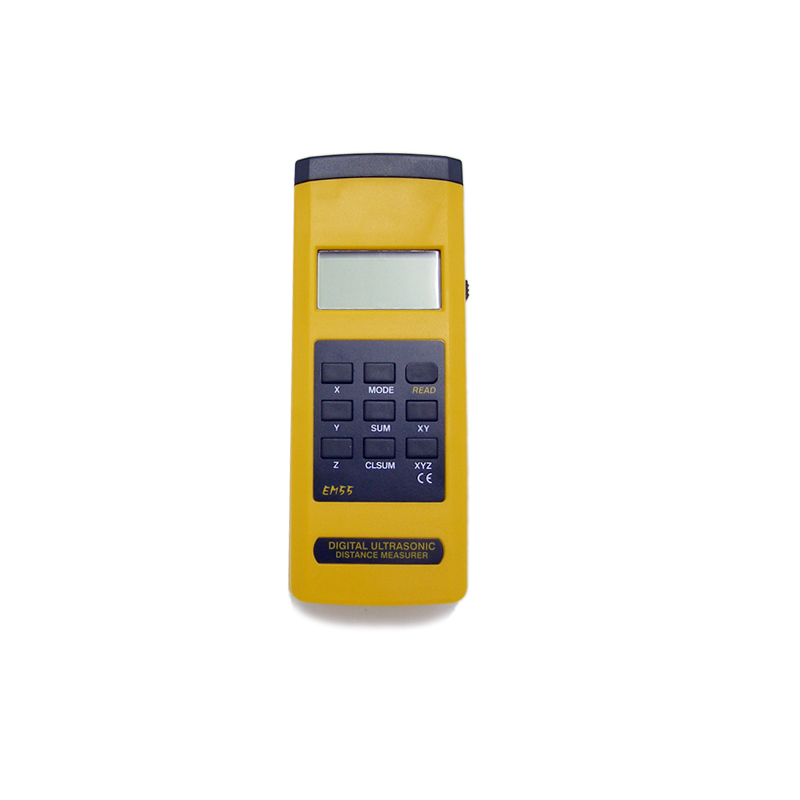

Digital Ultrasonic Distance Measurer
This digital ultrasonic distance measurer is a handheld device that accurately measures distances using ultrasonic technology. It features multiple measurement modes, including X, Y, Z, SUM, XY, CLSUM, and XYZ, making it suitable for various applications.
Technical Specifications
Product Overview
Precision Ultrasonic Measurement
The Digital Ultrasonic Distance Measurer is a versatile handheld tool designed for accurate distance, area, and volume calculations. Utilizing ultrasonic technology, it provides reliable measurements for construction, real estate, and interior design applications. Its compact, lightweight design ensures portability while the intuitive interface allows for quick mode selection and easy data reading.
Measurement Performance
- Measurement Range
- 15 m
- Resolution
- 0.01 m
- Accuracy
- ±(0.5%+1 digit) (in still air)
Calculation Capabilities
Maximum Calculation Capacities
300 m
Max Length
225 m²
Max Area
3,375 m³
Max Volume
Technical Specifications
- Power Supply
- 9V (6F22) battery
- Operating Temperature
- 0°C to 50°C
- Storage Temperature
- -10°C to 60°C
Physical Attributes
- Dimensions (W×L×T)
- 58 x 145 x 26 mm
- Weight
- 150 g
Package Contents
- Included in Box
- 9V BatteryUser ManualCanvas Holster
