Digital Smoke Detector

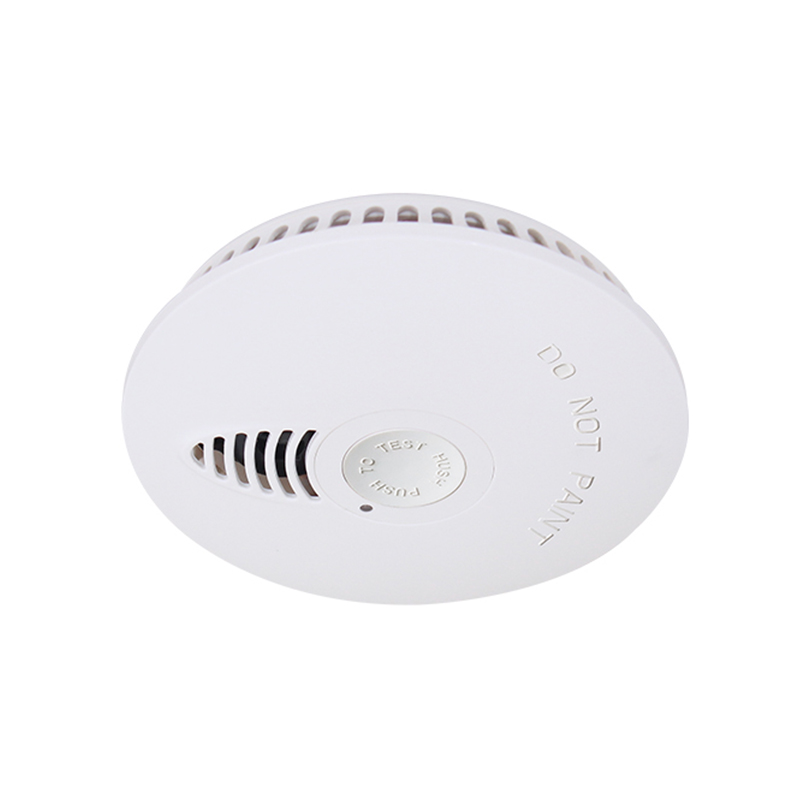

This digital smoke detector is designed for residential or commercial use. It features a test button for functional verification and is designed to prevent accidental painting.
Technical Specifications
Overview
Advanced Digital Smoke Detection
The LX-SO-215 is a high-performance, low-power digital smoke alarm engineered to meet the stringent EU EN14604 safety standards. Utilizing advanced digital signal processing and an MCU-based architecture, it offers superior sensitivity consistency and robust self-diagnostic capabilities for circuit and sensor health. Designed for longevity and reliability, this unit features adaptive environmental compensation and an ultra-low standby power consumption, ensuring up to 10 years of operational life.
Technical Specifications
- Power Source
- DC 3V

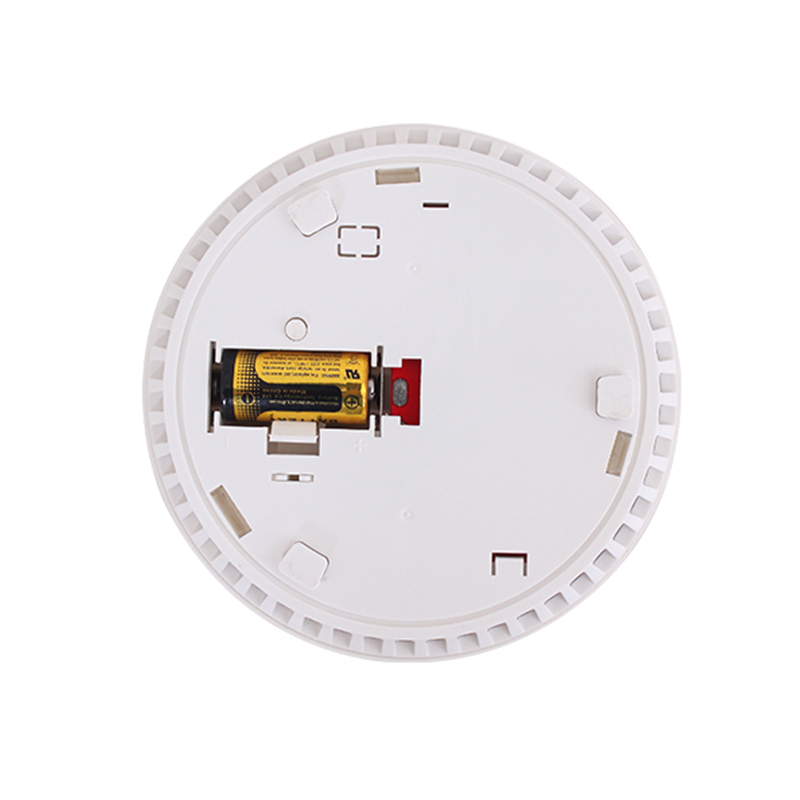

- Battery Type
- CR123A
- Battery Life
- 10 years
Performance Metrics
Alarm Sonority
85 dB
Alarm Volume
- Low Voltage Alarm
- 2.7 V
Power Consumption
Current Consumption
| State | Current |
|---|---|
| Standby | ≤ 3 µA |
| Alarm | < 30 mA |
Environmental Conditions
Operating Environment
- Temperature: 0°C to 40°C
- Humidity: 10% to 95% RH
Certifications & Compliance
- Standards
- EN14604CE Compliant
