Technical Specifications
Overview
Precision Refrigerant Management

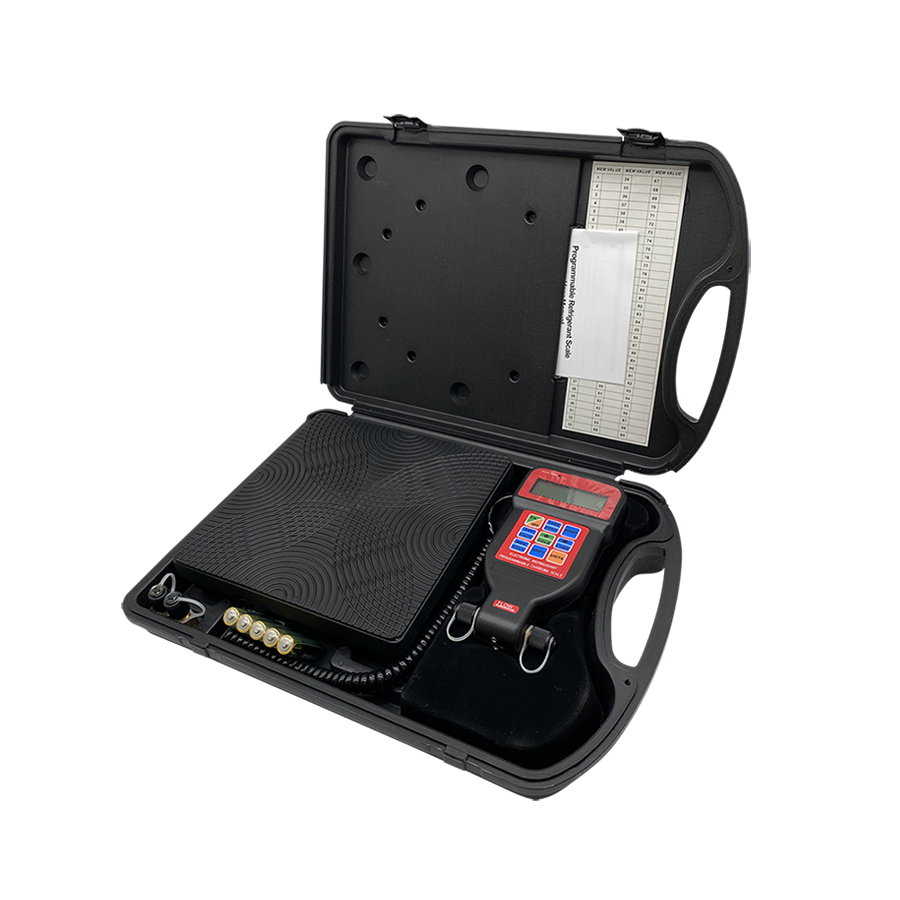

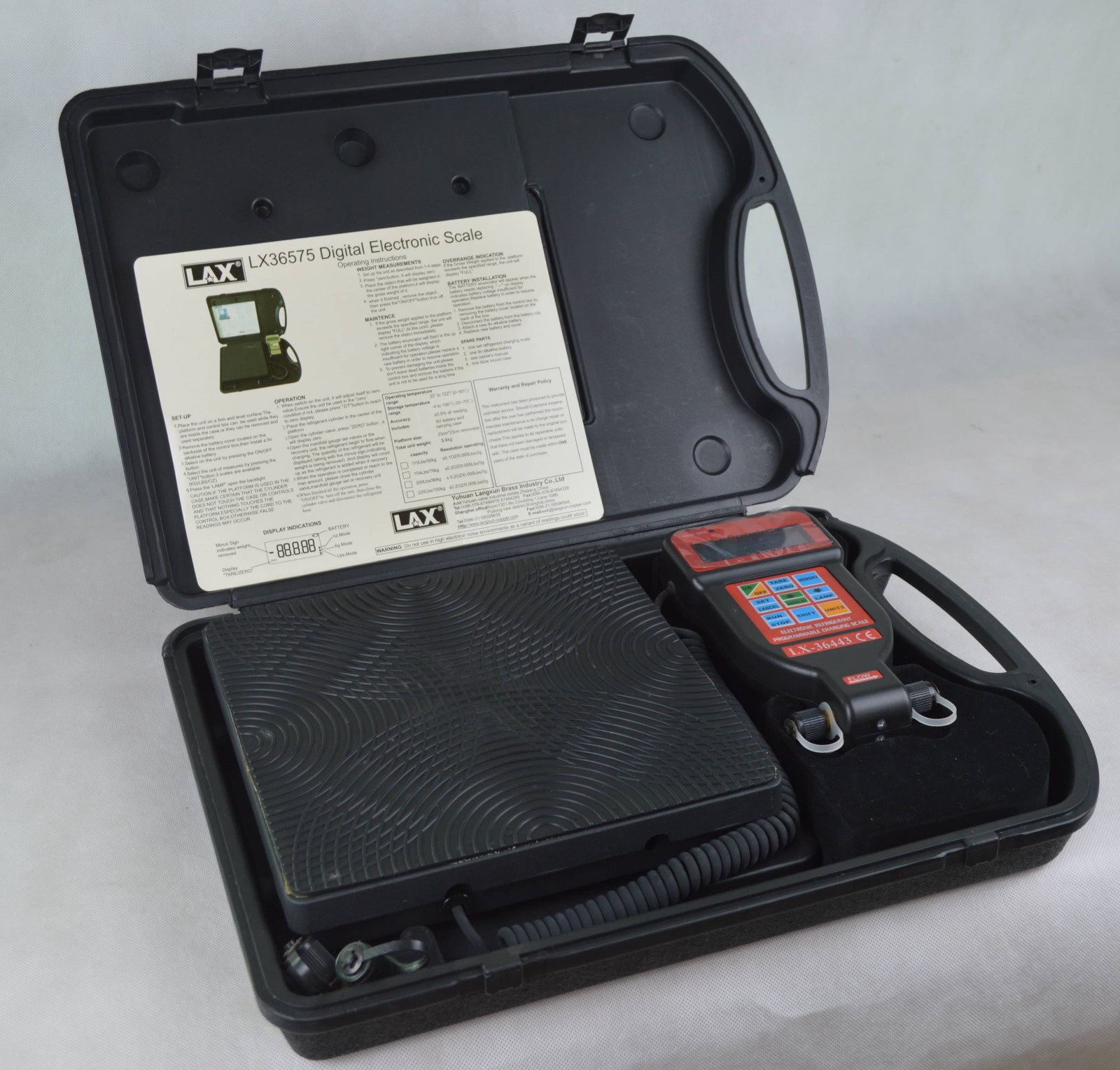

This digital programmable charging scale is designed for accurate and efficient refrigerant charging and recovery in HVAC&R systems. Featuring a large, backlit LCD display and multiple unit measurement options, it provides precise control for professional service engineers. The unit includes programmable settings to prevent overcharging and comes with a rugged carrying case for field durability.
Technical Specifications
- Operating Temperature
- 0°C to 50°C (32°F to 122°F)
- Storage Temperature
- -20°C to 70°C (-4°F to 158°F)
- Charging Accuracy
- ±0.25oz
- Power Requirements
- 2 x 5AA Batteries
- Auto Power Off
- 15 min
Capacity & Resolution
Capacity and Resolution Options
| Capacity (kg) | Capacity (lbs) | Resolution |
|---|---|---|
| 50 | 110 | 5g / 0.1oz |
| 70 | 154 | 5g / 0.2oz |
| 100 | 220 | 5g / 0.2oz |
Features
Included Tools
- Swaging tool (3/16" to 3/4")
- 45° flaring tool (3/16" to 3/4")
- Solenoid valve (400 psi MOPD)
- Key Features
- Programmable ChargingMemory FunctionBacklit DisplayOverload ProtectionImperial/Metric Readout
