Technical Specifications
Overview
Precision Digital Weighing Solution

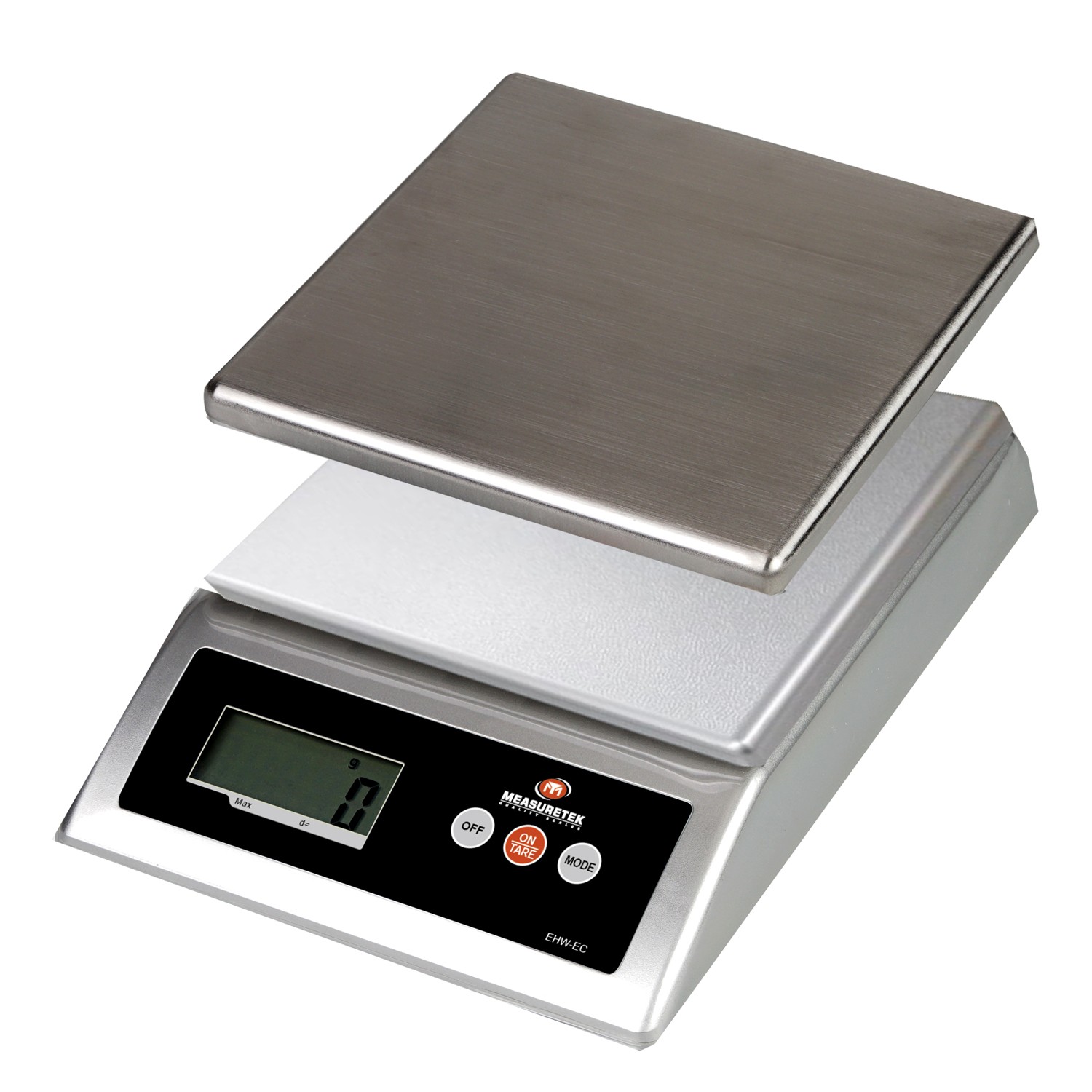

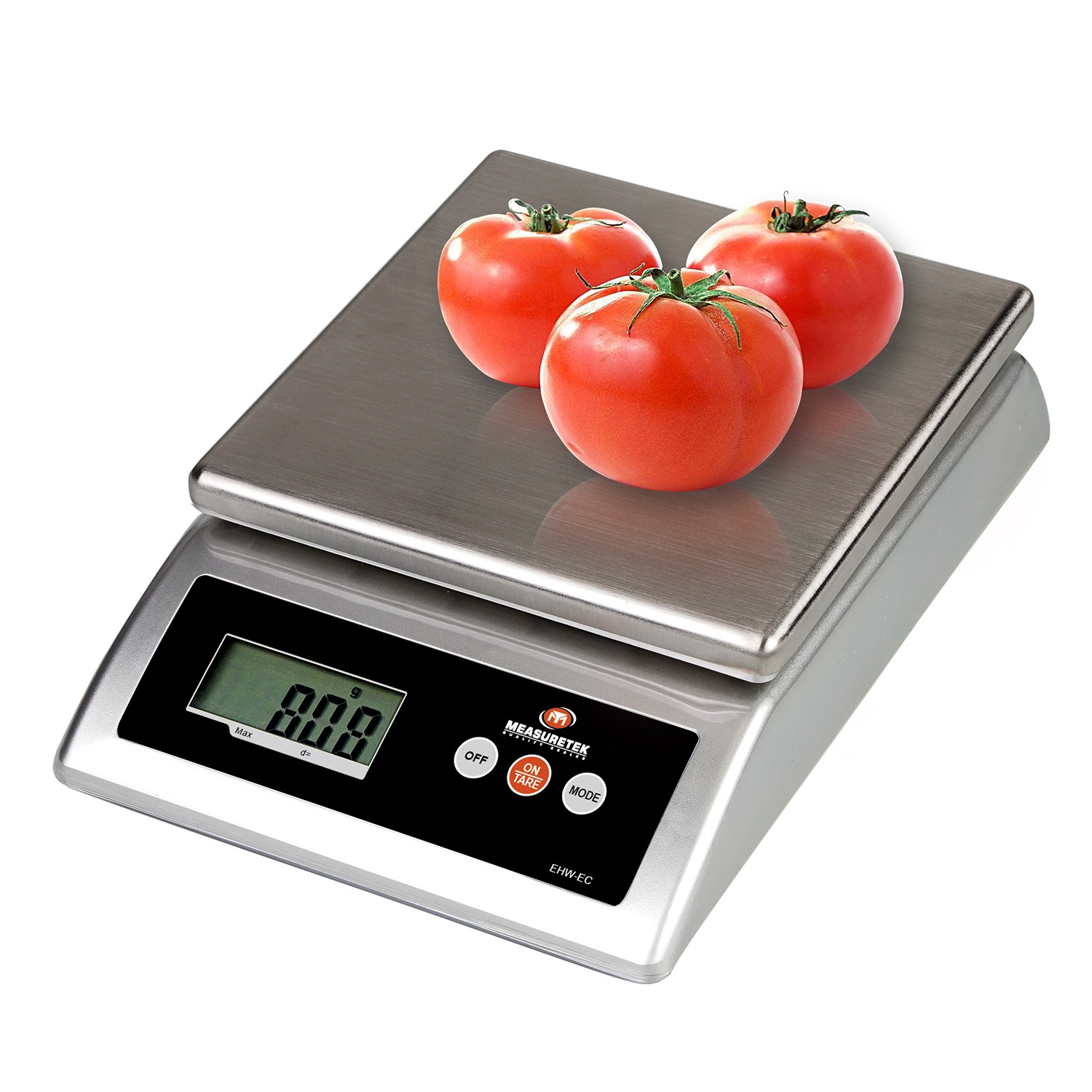

This versatile digital scale is engineered for accuracy and durability across warehouse, retail, and household environments. Featuring a robust ABS plastic housing and a removable stainless steel platform, it ensures both longevity and easy sanitation for food-safe handling. With dual-capacity options and multiple weighing units, it provides a flexible, user-friendly interface for precise weight determination.
Technical Specifications
Available Models
| Model | Capacity |
|---|---|
| EHW-EC-2 | 2kg x 0.5g |
| EHW-EC-5 | 5kg x 1g |
| EHW-EC-10 | 10kg x 1g |
- Units of Measure
- glblb:oz
- Power Requirements
- 6VDC 100mA adapter or 1x9V battery
- Operating Temperature
- -10°C to 40°C (14°F to 104°F)
Construction & Design
- Housing & Platform
- ABS plastic housing with removable stainless steel platform
- Platform Dimensions
- 170mm x 178mm (6.7" x 7.0")
- Display Size
- 45mm x 19mm (1.77" x 0.75")
Features
Functions
- Weighing
- Tare
- Overload indication
- Low battery indication
- Auto-Off function
- Control Interface
- 3-key operation: ON/TARE, OFF, MODE
Logistics
Shipping Weight
9.5 kg
Gross Weight
9 kg
Net Weight
- Packing Details
- 460mm x 305mm x 490mm (6 pcs/ctn)
