Technical Specifications
Overview
Precision Geotechnical Monitoring

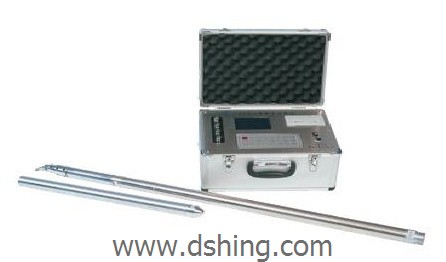

This high-precision digital inclinometer is designed for accurate measurement of dip, azimuth, and tool face angles in vertical and directional boreholes. Engineered for reliability in demanding fields like hydrology, oil, and geology, it utilizes advanced digital signal processing and long-distance data transmission. The system features a portable control unit with an integrated LCD display and field printer, ensuring intuitive operation and immediate data analysis in diverse engineering environments.
Measurement Capabilities
Key Performance Metrics
1,200 m
Max Depth
40 mm
Probe Diameter
Measurement Accuracy
| Parameter | Range | Error Tolerance |
|---|---|---|
| Dip Angle (0-20°) | 0-20° | ±0.1° |
| Dip Angle (20-50°) | 20-50° | ±0.2° |
| Azimuth Angle (1-3° dip) | 0-360° | ±3° |
| Azimuth Angle (3-50° dip) | 0-360° | ±1.5° |
| Tool Face Angle | 0-360° | ±1.5° |
Technical Specifications
Operating Environment
- Probe Temperature: -10°C to 50°C
- Probe Pressure: ≤15 MPa
- Relative Humidity: ≤85%
- Power Supply
- AC 220V, 50 Hz
Application Areas
- Suitable Industries
- EngineeringHydrologyOilfieldCoal FieldGeology
