Digital Dial Indicator 0.001mm Resolution

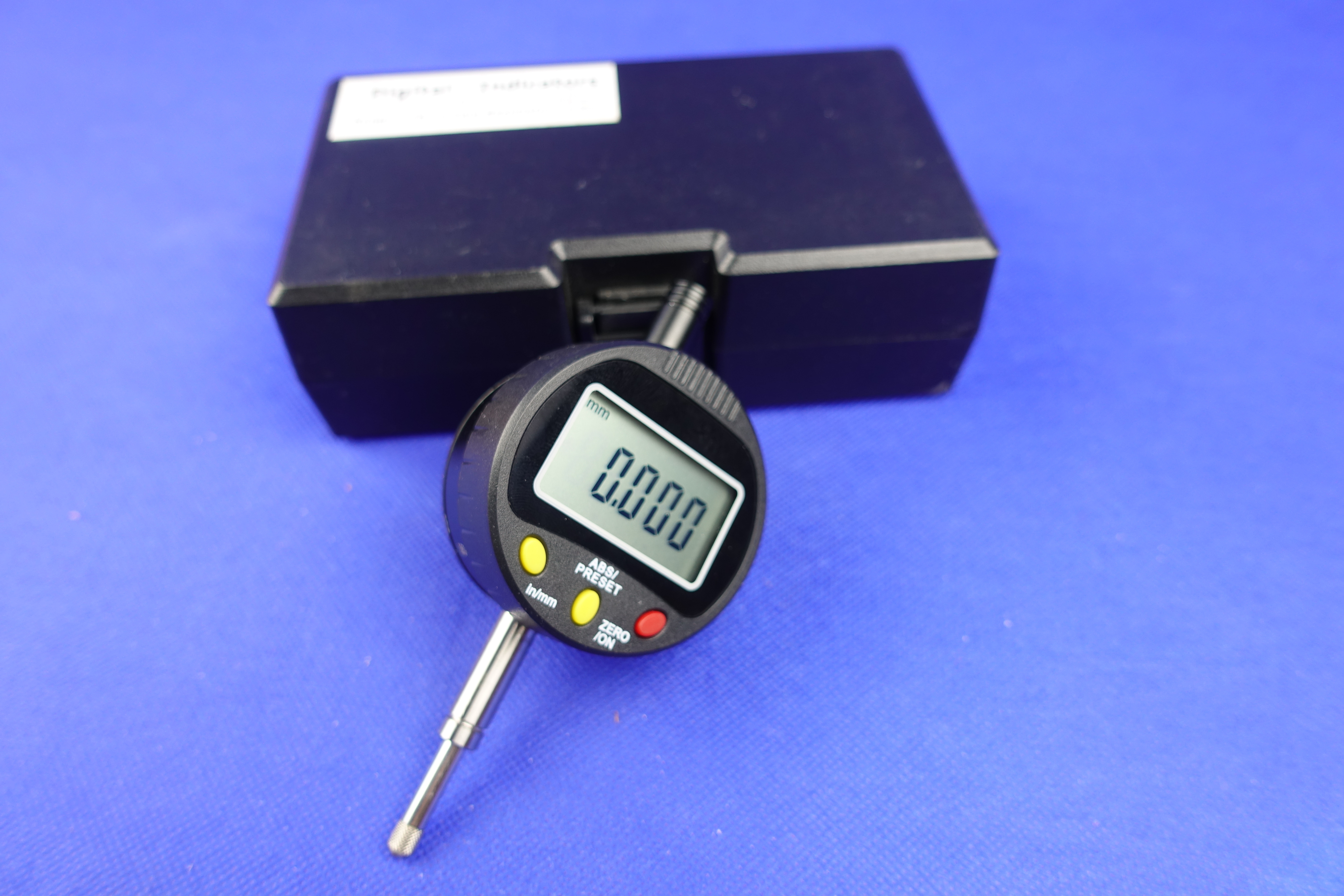

This digital dial indicator is designed for precise measurement tasks in machining and engineering. It features a digital display with a resolution of 0.001mm and buttons for zeroing and unit switching.
Technical Specifications
Product Overview
Precision Measurement Tool
This digital dial indicator is designed for high-precision measurement tasks in machining and engineering environments. Featuring a 0.001mm resolution and robust IP65 protection, it ensures reliable performance against dust and water ingress. The device includes versatile functionality such as unit switching, zeroing, and ABS/Preset modes to streamline your measurement workflow.
Technical Specifications
IP Rating
IP65
- Resolution
- 0.001 mm
- Measuring Speed
- 0.6 m/s
- Battery Voltage
- 3 V
Performance Standards
Performance Metrics
| Parameter | Value |
|---|---|
| Back Accuracy | 0.02 mm |
| Repeatability Limit | 0.01 mm |
| Max Measuring Force | 0.5 - 1.6 N |
- Compliance Standards
- GB/T 18761-200Q/LS 002-2
Key Features
Operational Features
- Data output capability
- Zeroing functionality
- Inch/Millimeter unit switching
- ABS/Preset mode
- Function and viewing check passed
