Digital Counting Scale
This digital counting scale is designed for parts counting, weighing, and setting count limits. It features a stainless steel weighing platform and a backlit LCD display.
Technical Specifications
Overview
Professional Counting Scale

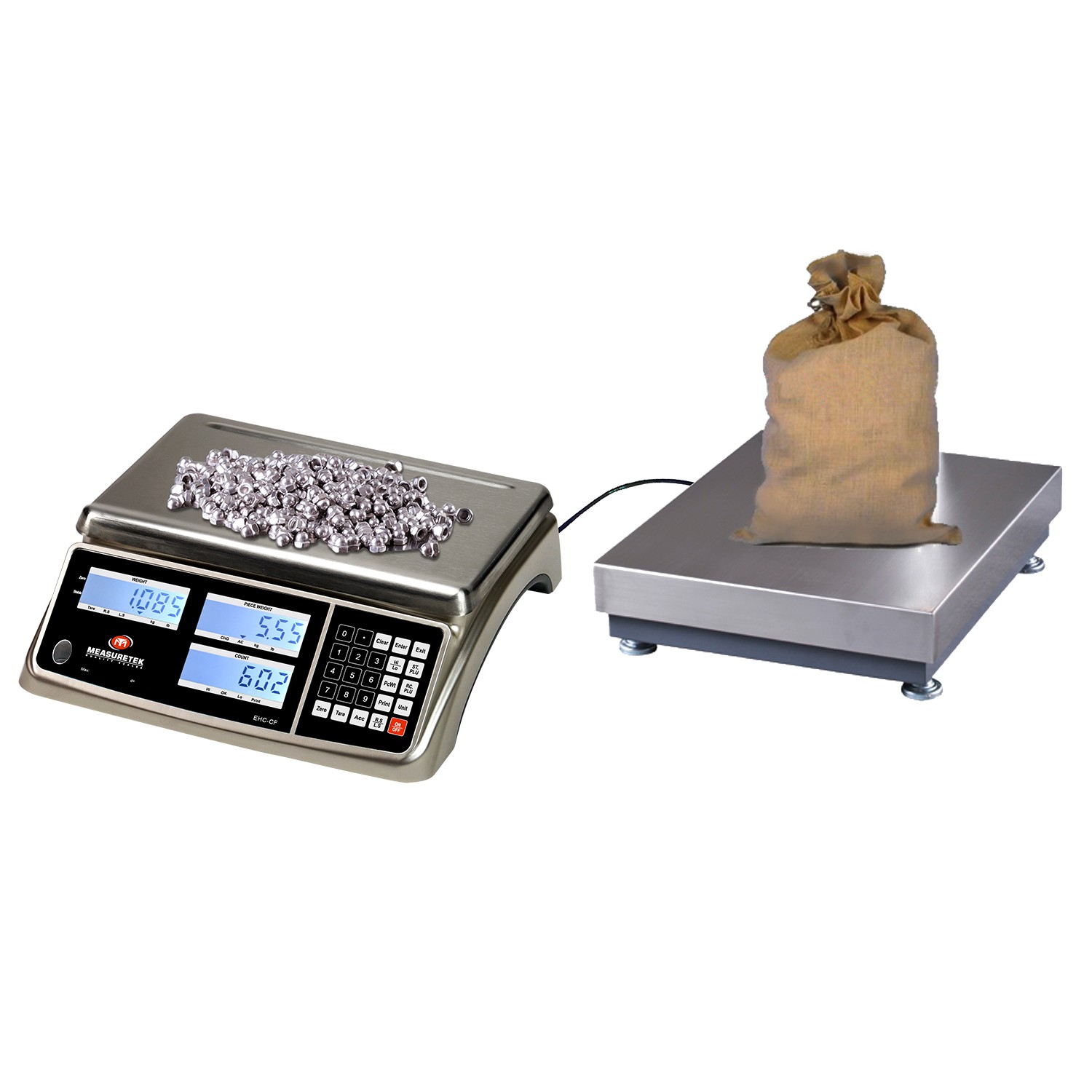

This high-precision digital counting scale is designed for efficient inventory management, light industrial applications, and warehouse operations. It features a robust ABS housing, a removable stainless steel weighing platter for easy cleaning, and an intuitive 25-key interface. With support for 256 memory slots and external printer connectivity, it streamlines complex counting and accumulation tasks.
Performance
Capacity & Resolution
| Model | Capacity | Readability |
|---|---|---|
| EHC-CF-6 | 6 kg | 0.2 g |
| EHC-CF-15 | 15 kg | 0.5 g |
| EHC-CF-30 | 30 kg | 1 g |
| EHC-CF-60 | 60 kg | 2 g |
- Units of Measure
- kglb
Construction & Design
Construction Features
- Removable stainless steel weighing platter
- Rugged ABS housing
- Heavy-duty X-shaped cast aluminum load cell bracket
- Adjustable leveling feet
- Integrated leveling bubble
- Display
- Backlit LCD, 3 windows, 18.5mm digit height
Connectivity & Power
Connectivity

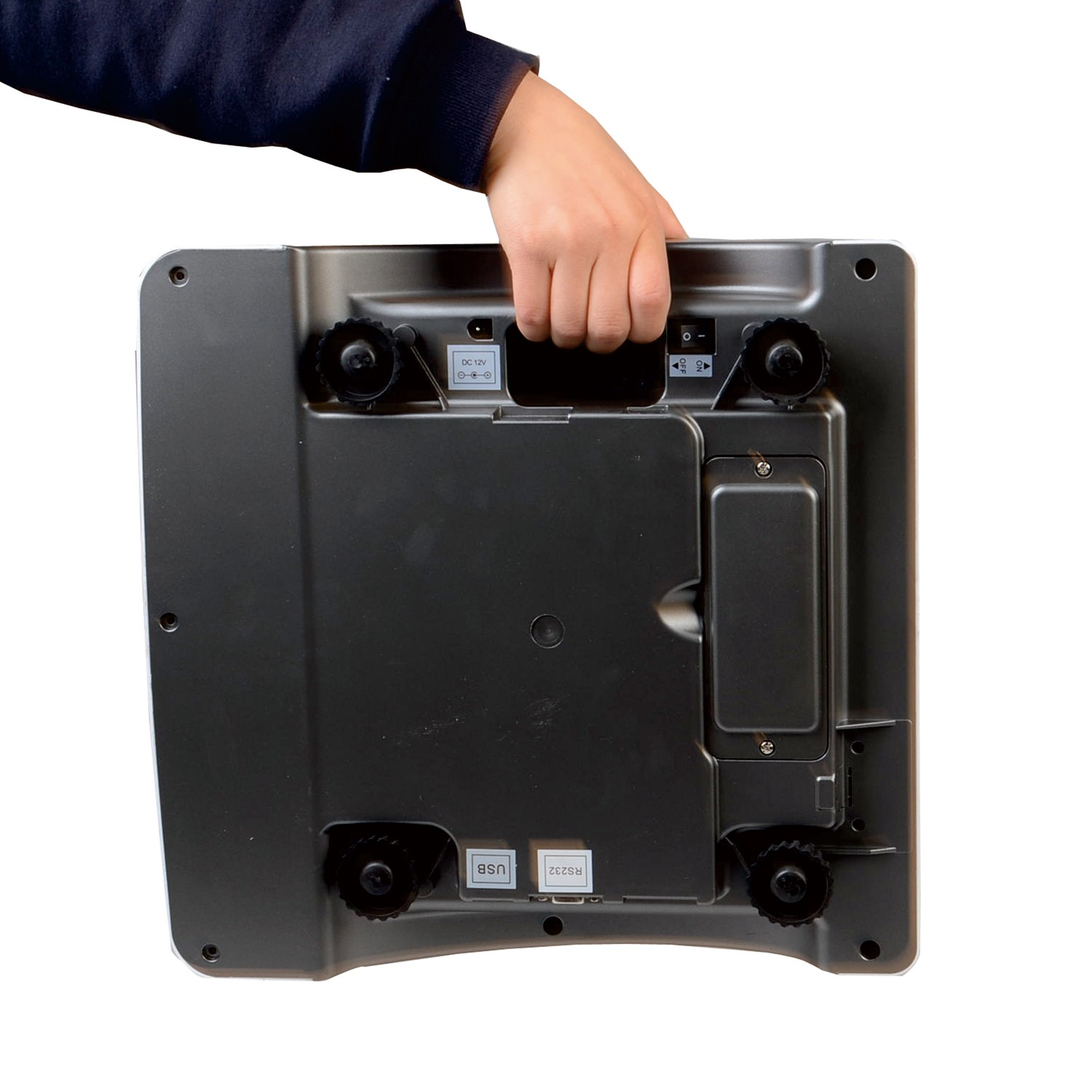

RS232USBExternal Base Connector
Power Supply
- 12V DC 500mA adapter
- 6V 4Ah rechargeable lead-acid battery
Technical Specifications
- Operating Temperature
- -10°C to 40°C (14°F to 104°F)
- Platform Dimensions
- 335 x 225 mm
- Certifications
- CEWEEEULBSVI Energy Approved
