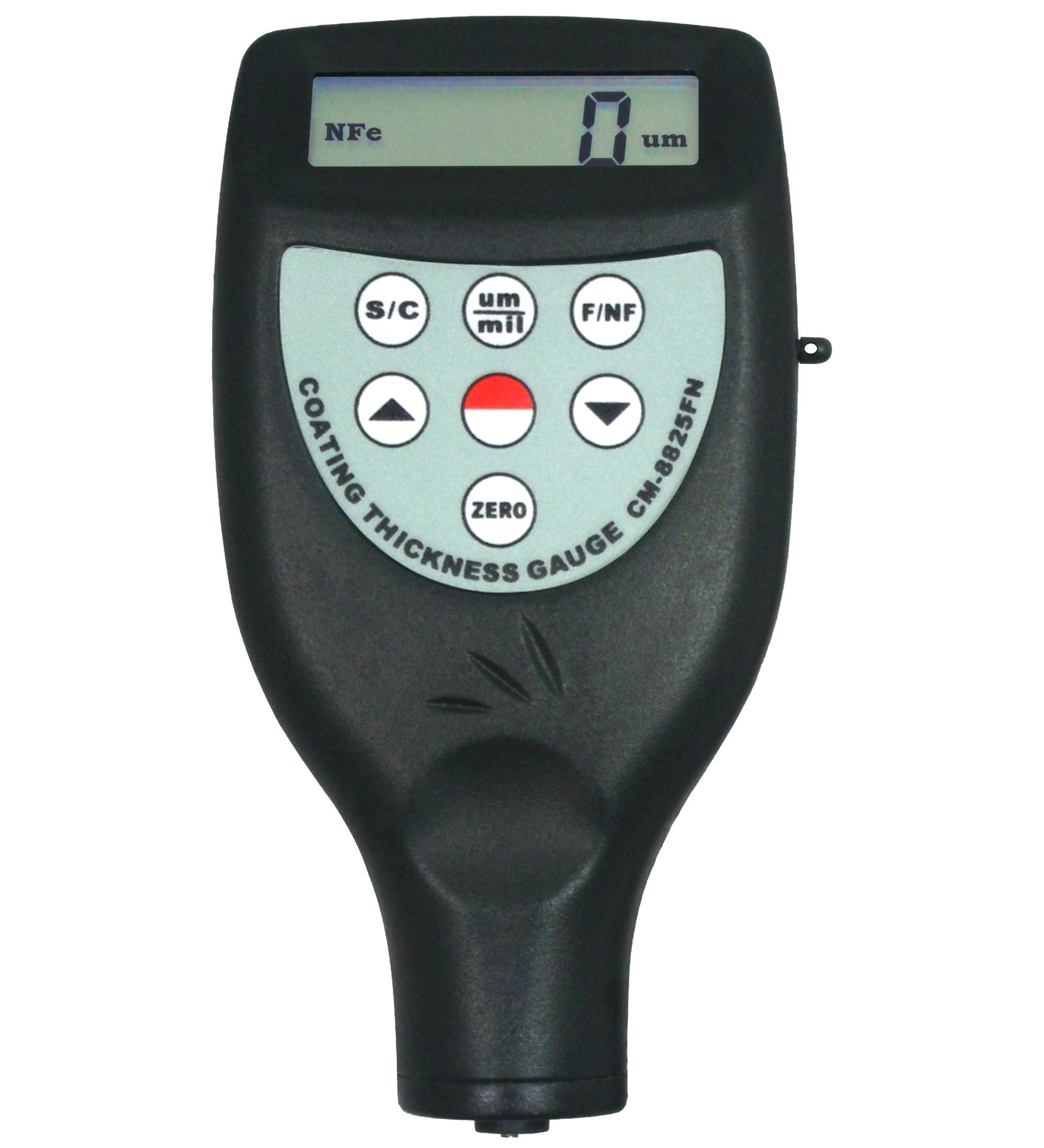

Digital Coating Thickness Meter
This digital meter is designed for non-destructive measurement of coating thickness on both ferrous and non-ferrous metals. It features a digital display and multiple function buttons for calibration and unit selection.
Technical Specifications
Product Overview
Precision Coating Measurement
This digital coating thickness meter is a precision instrument designed for the non-destructive measurement of coating thickness on both ferrous and non-ferrous metallic substrates. It utilizes advanced magnetic induction and eddy current technologies to provide accurate readings for applications like galvanizing, lacquer, and paint layers. With its ergonomic design and automatic substrate recognition, it is an essential tool for quality control and manufacturing inspections.
Measurement Capabilities
Measurement Modes
- Single Measurement
- Continuous Measurement (ideal for curved or tiny objects)
- Measuring Methods
- Magnetic Induction (F)Eddy Current (N)
Functionality
Key Features
- Auto-calibration memory
- Automatic substrate recognition
- Metric and imperial system selection
- Manual or automatic shut down
- Audible operation reminder
Connectivity
- Data Output
- USBRS-232Bluetooth (Optional)
Physical Design
Design Specifications
| Feature | Detail |
|---|---|
| Operation | Single-hand operation |
| Power Source | 9V Battery |
Standard Accessories
Included in Box
- Main Unit
- Calibration Base Set (F/NF)
- Calibration Foils (1 set, 4 pieces)
- Carrying Case
- Operation Manual
