Technical Specifications
Product Overview
Reliable Carbon Monoxide Detection

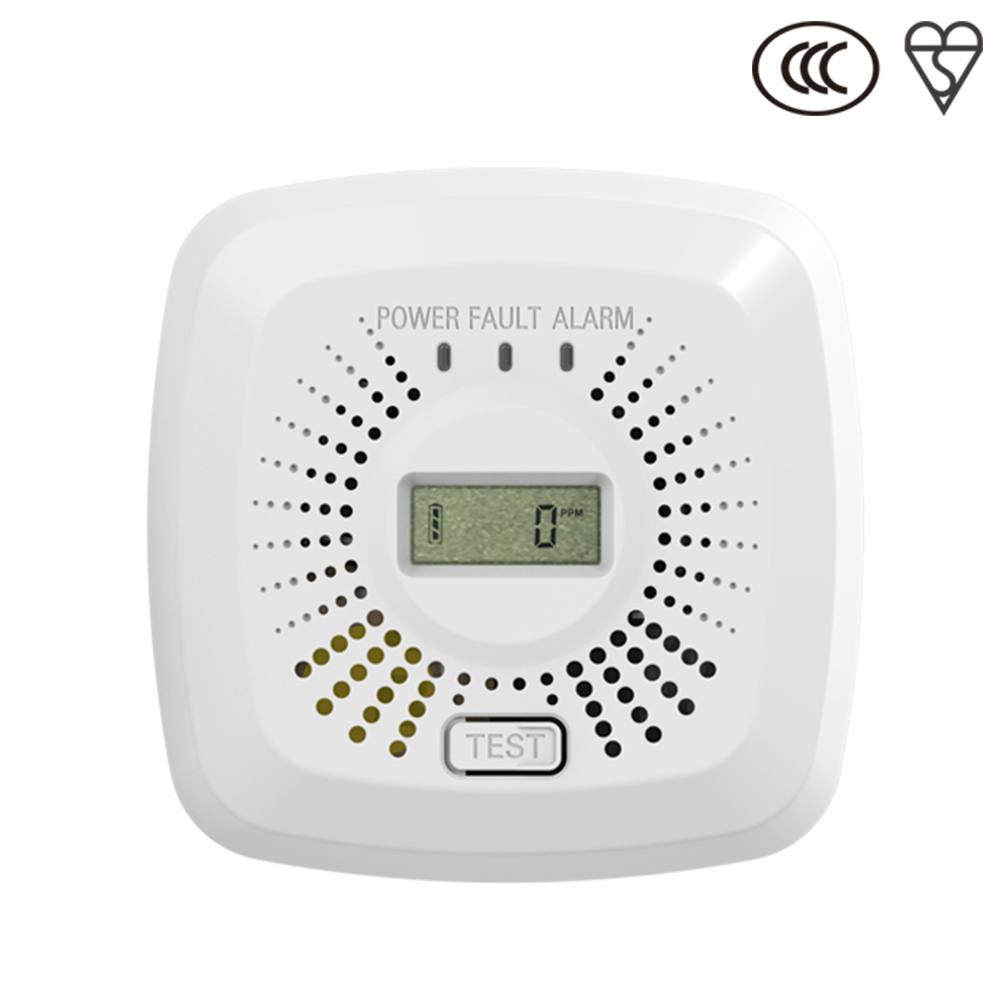

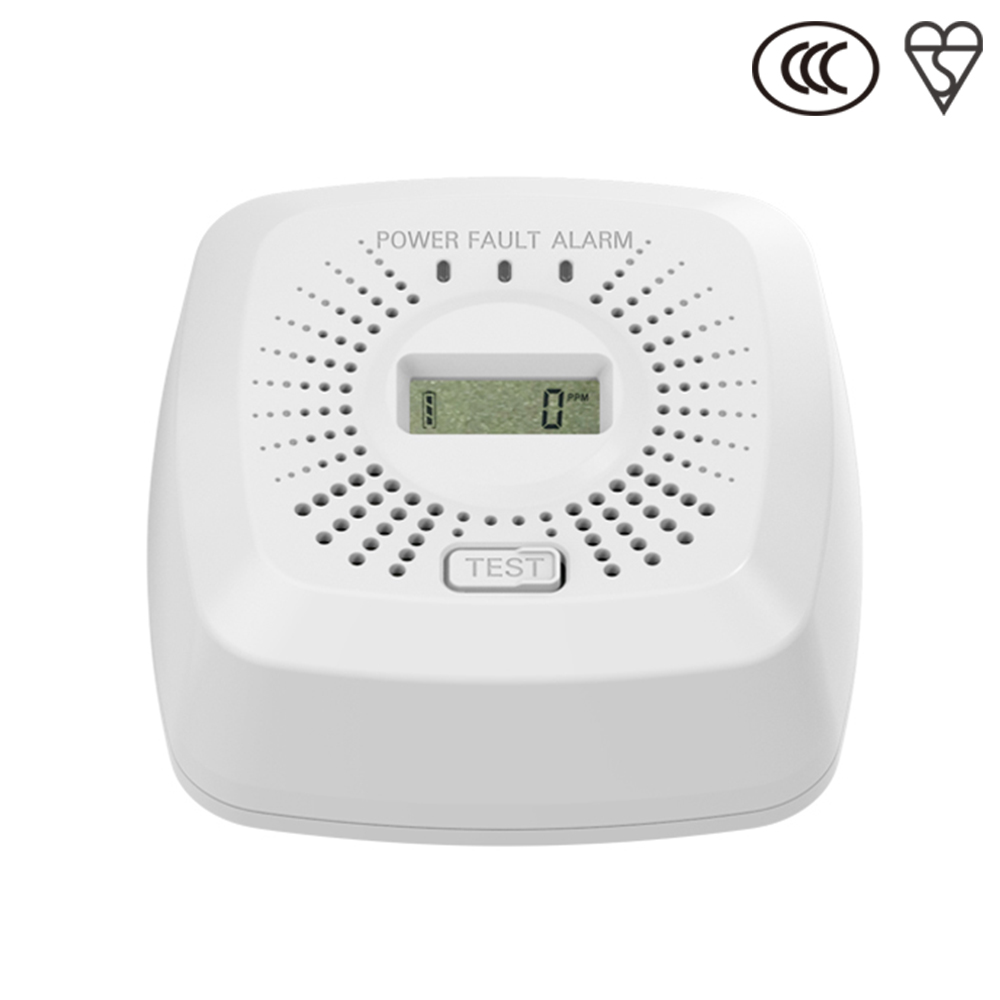

This digital carbon monoxide detector provides essential safety monitoring for residential environments, featuring a clear LCD display for real-time CO concentration and temperature readings. Designed for longevity, the unit includes a 10-year service life and operates on a long-lasting CR123A lithium battery. With built-in silence and test functions, this device ensures both user convenience and consistent operational safety.
Technical Specifications
Dimensions
90.6 mm
Diameter
35.2 mm
Depth
- Power Source
- DC 3V Lithium Battery
- Operation Current
- 10 uA
- Alarm Current
- 60 mA
- Sound Output
- 85 dB(A)
- Product Service Life
- 10 years
Environmental Conditions
- Operating Temperature
- 0°C to 40°C
- Humidity Range
- 30% - 90% R.H.
Compliance & Certification
- Standards Compliance
- EN 50291-1:2018EN 50291-1:2010 + A1:2012
Operational Modes
Device Status Indicators
| Mode | LCD Display | Indicator |
|---|---|---|
| Standby | - | Green LED flashes every 50s |
| Alarming | Hco | Red LED flash 0.8s |
| Low Battery | Battery Symbol | Yellow LED flash 50s |
| Failure | Err | Yellow LED flash 50s |
| End of Life | End | Yellow LED flash 50s |
