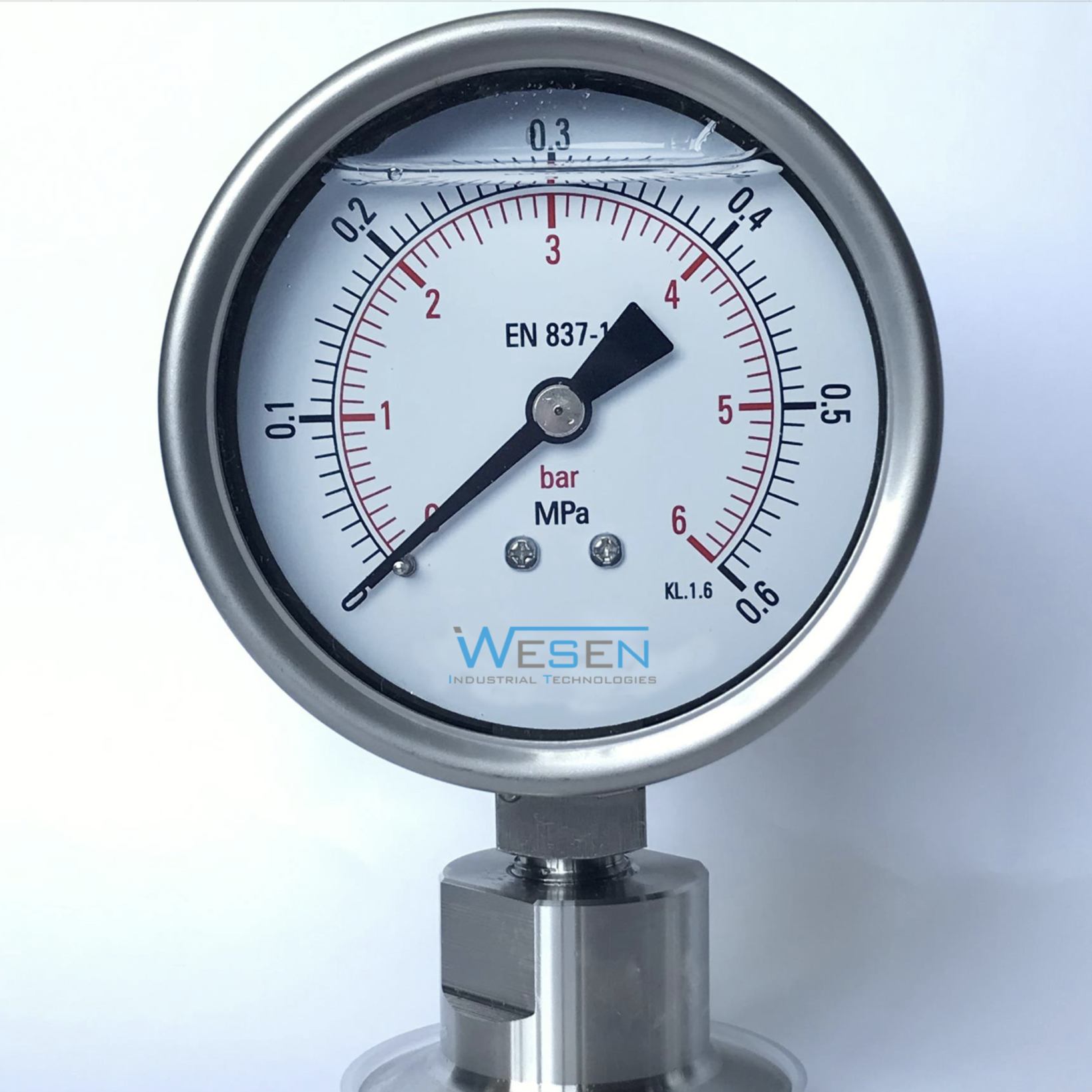

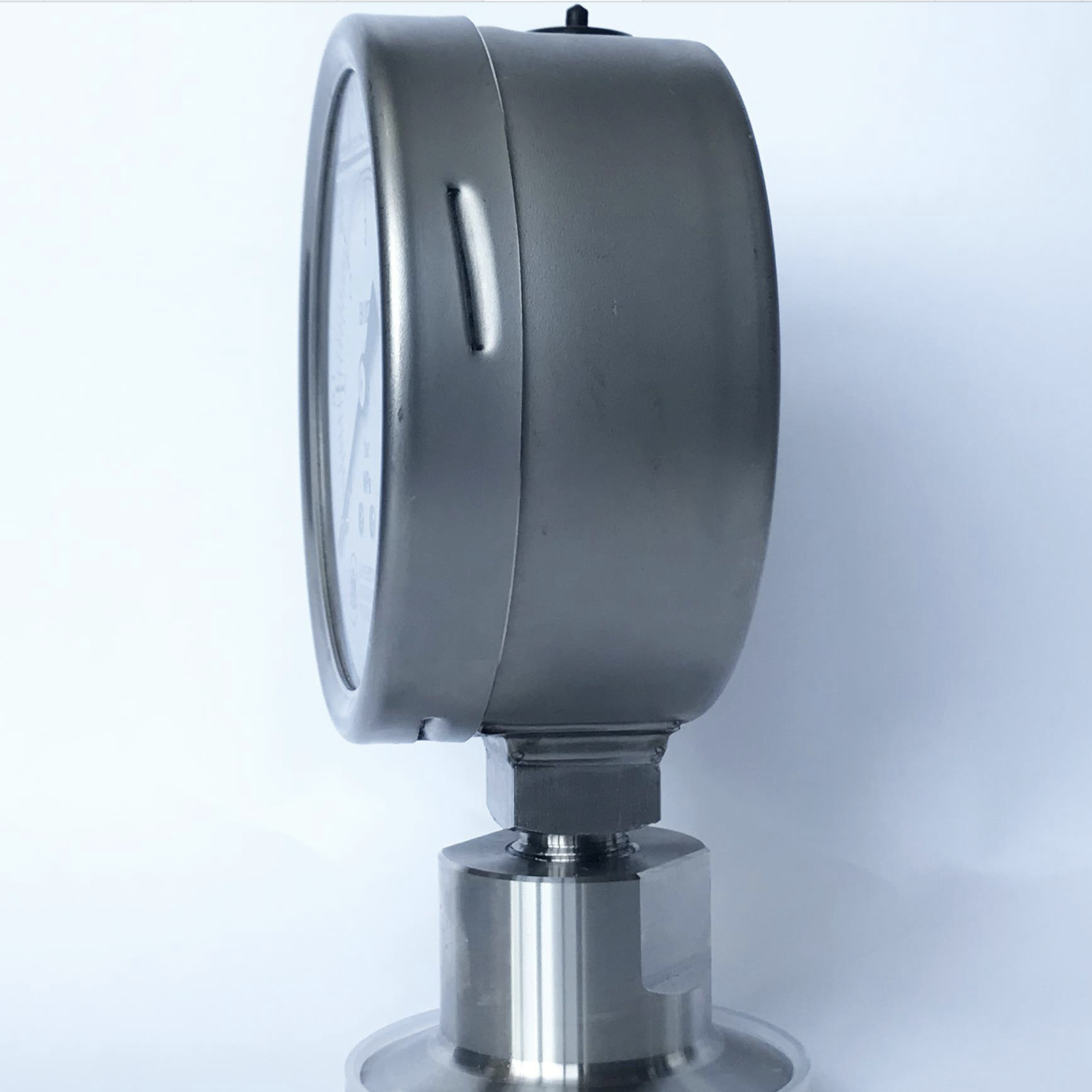

Diaphragm Pressure Measurement Gauge
This diaphragm pressure gauge is designed for precise pressure measurement in various industrial applications. Its diaphragm design ensures accurate measurement even with pulsating pressures or in environments with viscous or corrosive media.
Technical Specifications
Overview
Precision Diaphragm Pressure Measurement
This diaphragm pressure gauge is engineered for reliable and precise pressure monitoring in demanding industrial environments. Featuring robust stainless steel construction, it offers excellent corrosion resistance and durability for applications involving viscous, pulsating, or corrosive media. The versatile design supports a wide range of mounting options and process connections, making it an ideal solution for chemical processing, pharmaceutical, and food and beverage industries.
Technical Specifications
Mounting Options
- Bottom
- Back
- Lower Back
- Available Dial Sizes
- 1.5"2"2.5"3.5"4"5"6"8"10"
- Pressure Range
- -1 to 1000 bar
Materials & Construction
Case Material
SS304SS316
Window Options
- Glass
- Tempered glass
- Safety glass
- PC glass
- Acrylic
Wetted Parts Material
| Component | Material |
|---|---|
| Connection | SS316/SS304 |
| Bourdon tube | SS316 |
| Diaphragm | SS316/SS304 |
Configuration & Accessories
Fill Liquid Options
- Glycerin
- Silicone Oil
Additional Accessories
- Flange
- Bracket
- Thread Types
- PTNPTG
