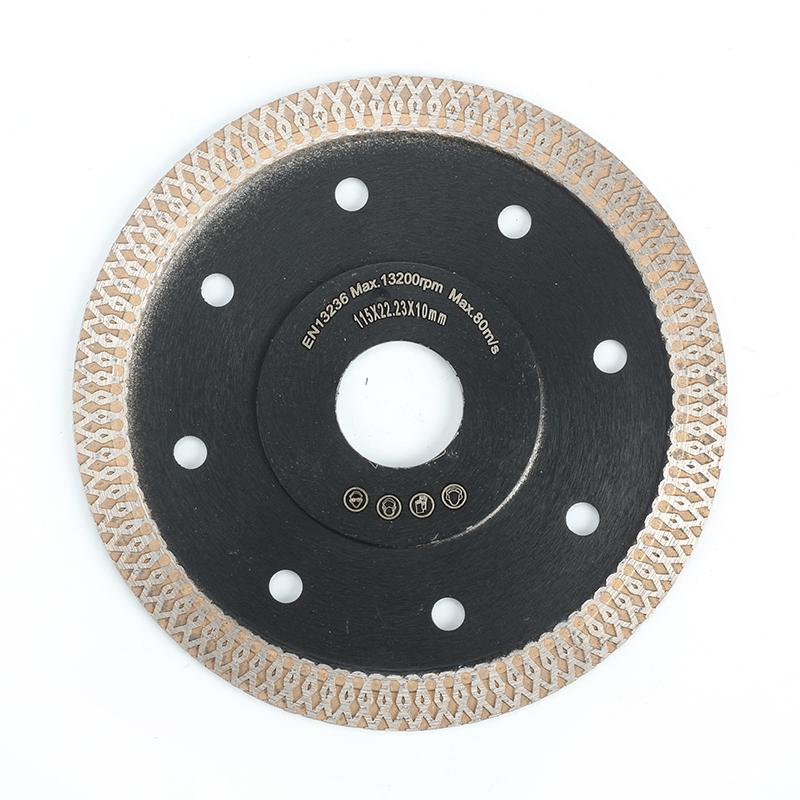

Diamond Saw Blade with X-Type Edge
This diamond saw blade is engineered for cutting various materials. The X-type sharp edge ensures efficient and precise cutting performance.
Technical Specifications
Product Overview
High-Performance X-Type Diamond Saw Blade
This professional-grade diamond saw blade features an advanced X-type edge design, engineered to combine aggressive cutting capability with a fine, clean finish. Constructed with a heat-treated, high-alloy steel core, it ensures smooth operation, low vibration, and enhanced durability. Designed for versatility, this blade is suitable for a wide range of building materials including concrete, granite, brick, and masonry.
Technical Specifications
Maximum Operating Speed
13,200 rpm
Max Speed
80 m/s
Max Linear Speed
- Diameter
- 115 mm
- Bore Size
- 22.2 mm
- Segment Height
- 10 mm
- Segment Thickness
- 1.2-2.0mm
- Body Thickness
- 0.8-1.4mm
Performance & Compliance
Standards
EN13236
Materials & Compatibility
Construction Materials
- 65Mn Steel (Core)
- Diamond and Metal Powder (Segments)
- Compatible Materials
- ConcreteReinforced ConcreteGraniteQuarry SlabsSand-lime StoneBrickMasonry
Packaging & Logistics
Available Packaging
- Color box
- White box
- Double blister
- PVC bag
- Blister card
